Bosch Rexroth 3842548424

CARRYING PLATE LWT400XBWT400X19,05

MPN: 3842548424
Category: Carrying plates

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842548424?

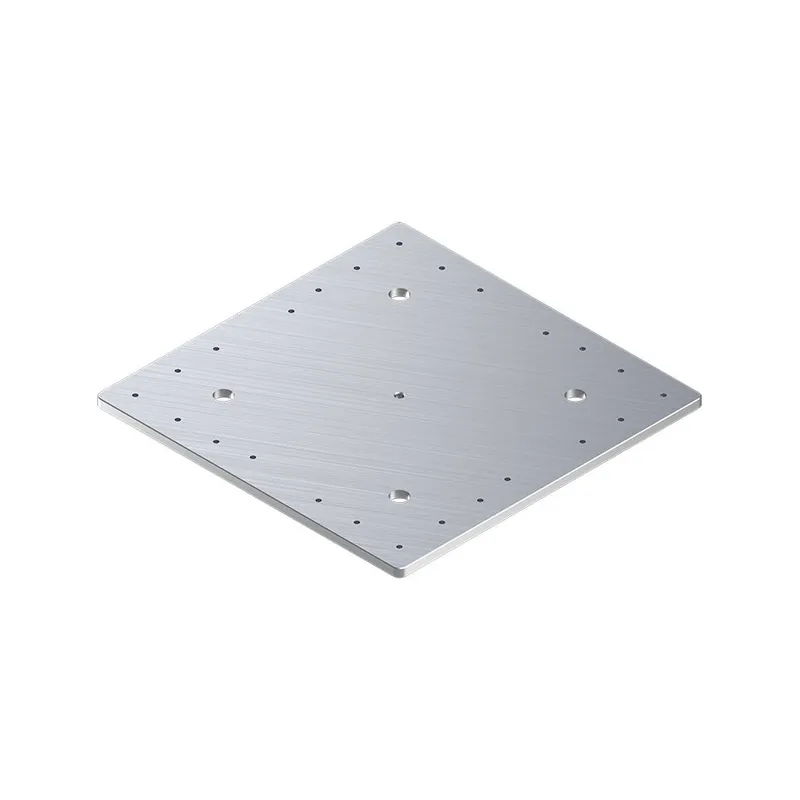

Carrying plate WT 2/H, AL 19.05 400/400

Aluminum carrying plates for high loads with large workpiece pallets

For workpiece pallet self-assembly for product support or for adaptation to specific customer requirements

Completely drilled and ready for assembly

17 standard sizes

Universal aluminum carrying plate with two carrying plate thicknesses:

d = 12.70 mm

d = 19.05 mm

Can be combined with WT 2/H workpiece pallet kit

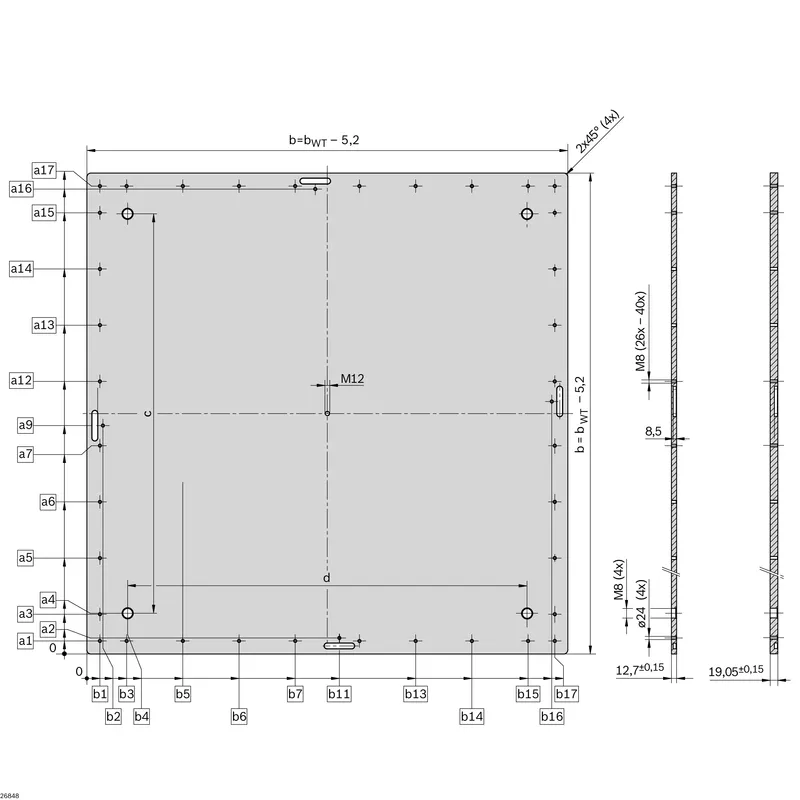

Specifications

Dimension [c] [mm]	195
Dimension [d] [mm]	195
Plate thickness [dPL] [mm]	19.05
Workpiece pallet total weight [mG] [kg]	240
Workpiece pallet length [lWT] [mm]	400
Plate weight [mPL] [kg]	7.9
Flatness [mm]	0.4
Material	Aluminum
Workpiece pallet width [bWT] [mm]	400
Weight [kg]	7.92
