Home / Bosch Rexroth / Lifting wheel / Bosch Rexroth 3842547890

Bosch Rexroth

Bosch Rexroth 3842547890

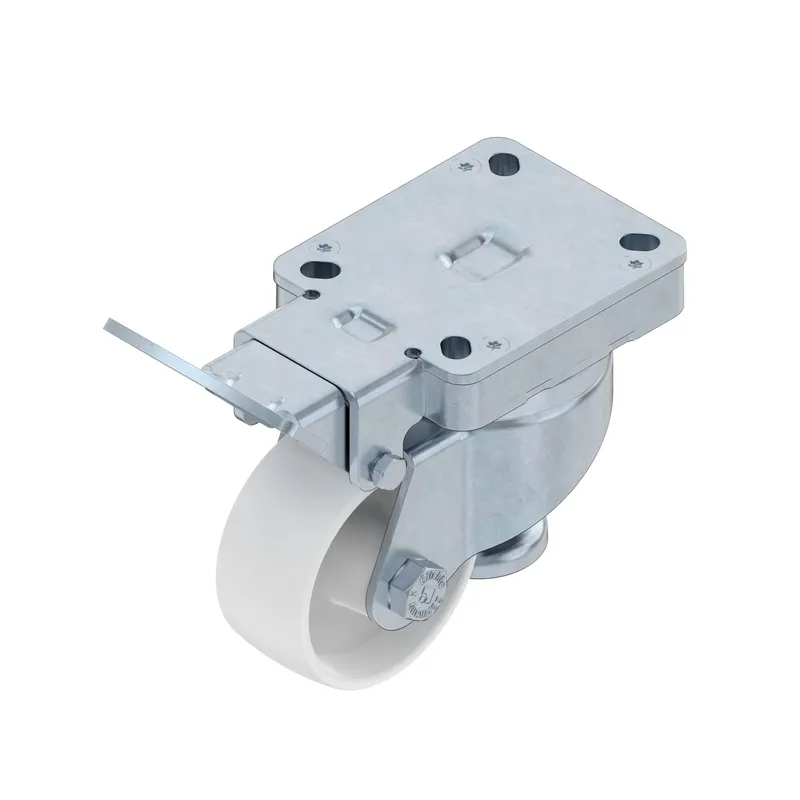

LIFTING WHEEL D80

MPN: 3842547890
Category: Lifting wheel

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547890?

Lifting wheel, F2300

Steerable lifting wheel

The wheel turns into a stable base simply by engaging the stop lever

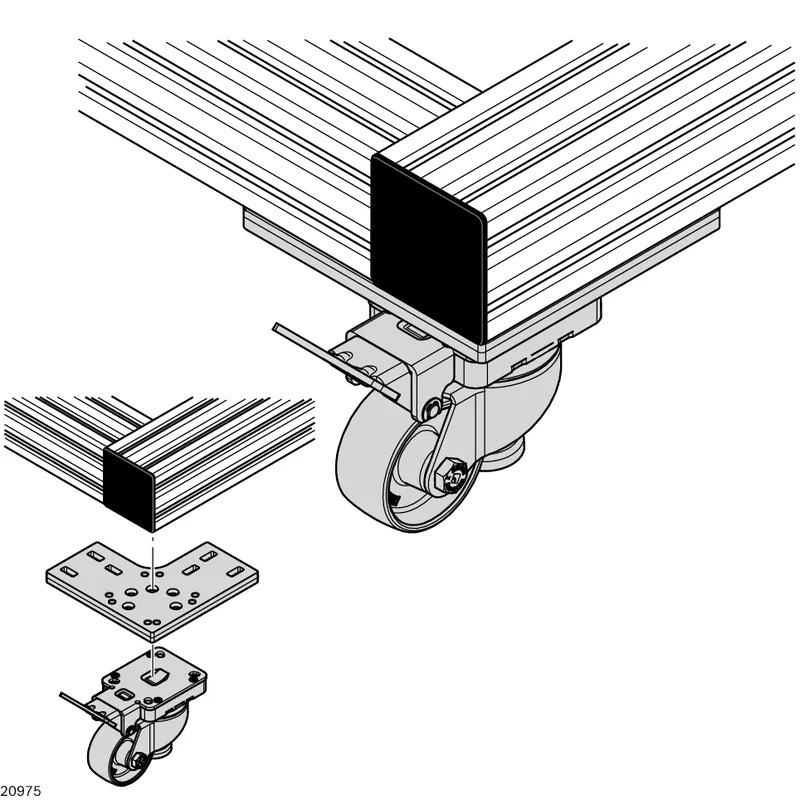

Screw-on plate for mounting the lifting wheel

With "Ideal-Stop": locking lever does not swivel with the steerable caster but remains in the defined position. The locking lever is fixed in position on the frame by means of the screw-on plate, and the caster wheel moves freely

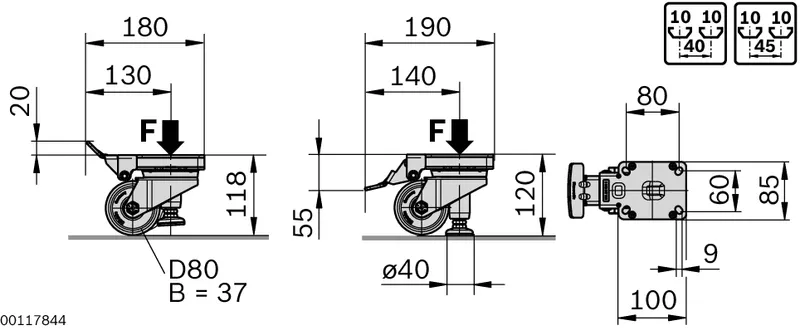

Specifications

Profile slot	10
Color	Gray
Packaging unit	1
Total height [mm]	120.0
Force F [N]	2300.0
Material information	Wheel: PA 6, natural white, housing: Steel, galvanized, base plate: Rubber
Material	PA 6
Required accessories	M8x30 T-bolt, M8 flange nut, M12 or S12 central bolt for fastening the screw-on plate to the profile frame; M8x35 screw (ISO 4762), 8 washer (DIN EN 7090), lock washer 8 FSt for fastening to the screw-on plate
Weight [kg]	1.67
