Bosch Rexroth 3842547827

STRUT PROFILE 45X90X90L 4N 8X6070MM

MPN: 3842547827
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547827?

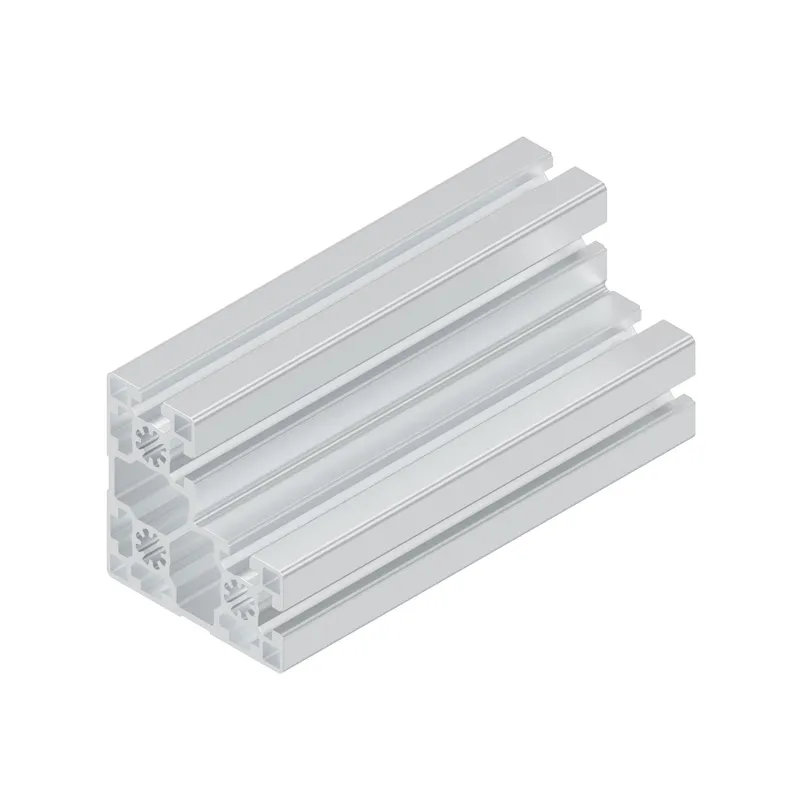

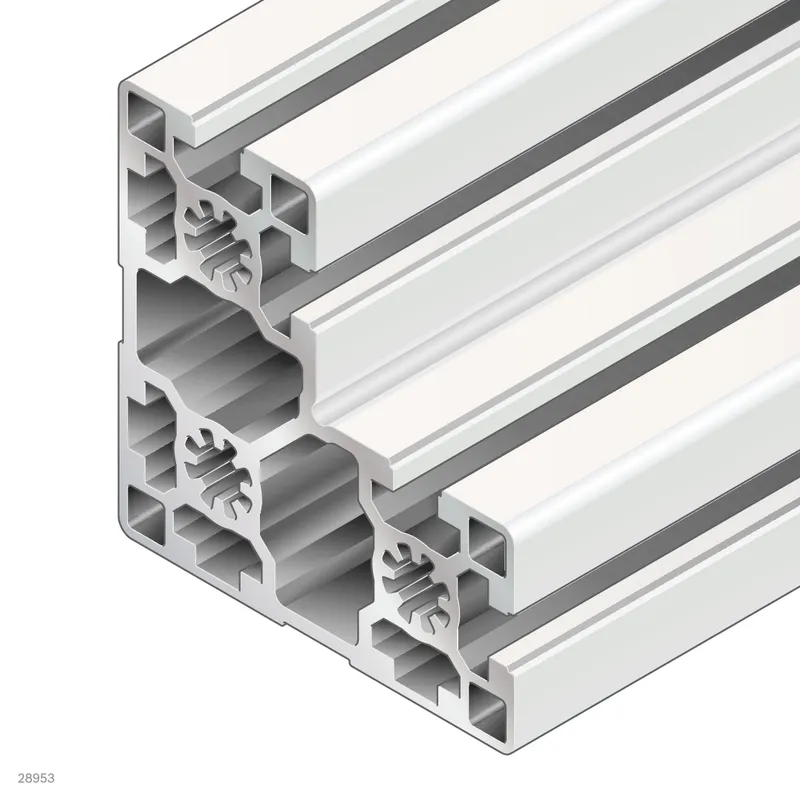

Strut profile 45x90x90L 4N, 8xL=6070mm

Specifications

Condition on delivery	Packaging unit in standard length

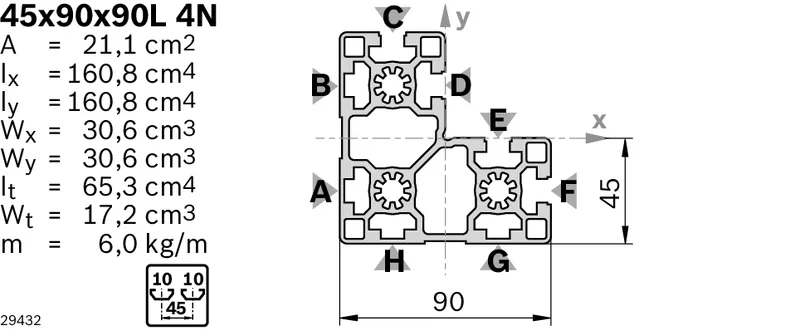

Cross-section	45x90x90L 4N
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x90x90
Open slots	4.0
Profile type	4N
Color	Natural
Delivery unit	8
Mass [m] [kg]	6
Area moment of inertia in x-direction [lx] [cm⁴]	160.8
Area moment of inertia in y-direction [ly] [cm⁴]	160.8
Profile surface [A] [cm²]	22.1
Moment of resistance in the x-direction [Wx] [cm³]	30.6
Moment of resistance in the y-direction [Wy] [cm³]	30.6
Torsional moment of inertia [It] [cm⁴]	65.3
Moment of torsion resistance [Wt] [cm³]	17.2
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90x90, black; Cover cap 45x90x90, signal gray; Cover cap with hole 45x90x90, black; Cover cap with hole 45x90x90, signal gray
Weight [kg]	292
