Home / Bosch Rexroth / Curves STS / Bosch Rexroth 3842547131

Bosch Rexroth

Bosch Rexroth 3842547131

CURVE 320+ HOR STS 30° R500

MPN: 3842547131
Category: Curves STS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547131?

Roller curve horizontal STS VFplus 320 30°

Patented roller elements for low-friction, quieter changes in chain direction

Easy-to-clean design

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant materials

Specifications

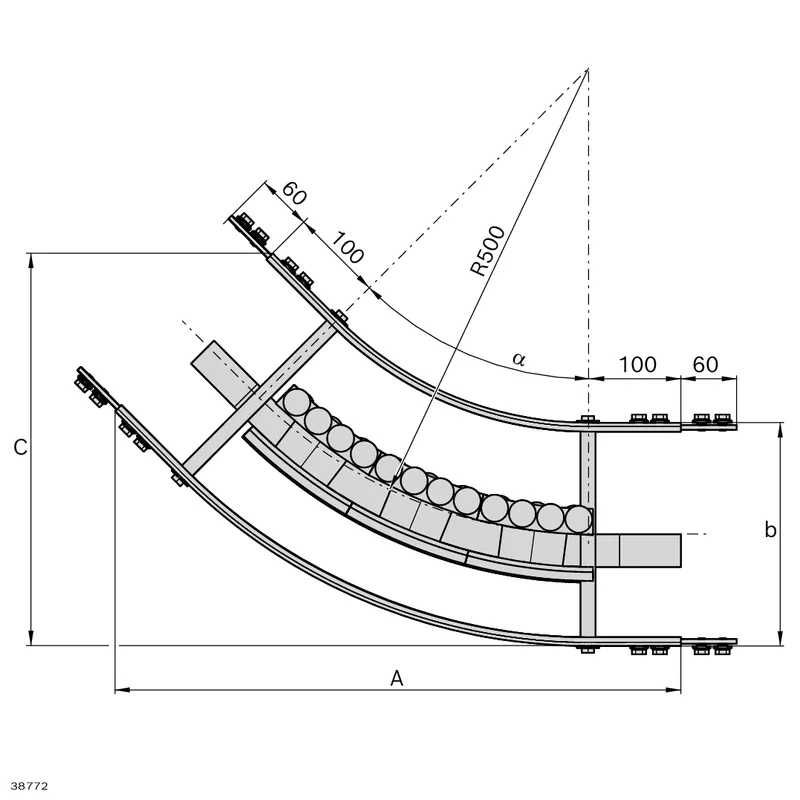

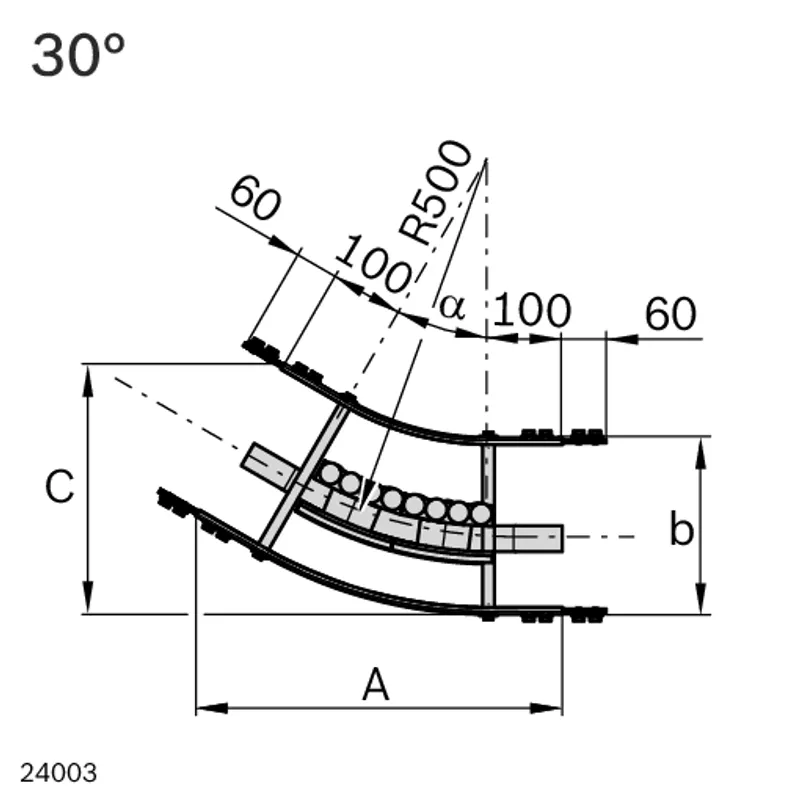

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	516.6
Size [b] [mm]	320
Scope of delivery	Incl. fastening material for mounting to the STS section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Connector: Non-rusting steel 1.4301; Profile: Non-rusting steel 1.4301; Roller carrier: PA 66; Rollers: PA
Actual chain length [m]	2x 0,46
Effective sliding rail length [m]	5x 0,46
Required accessories	Slide rail: Length calculation
Weight [kg]	3.8

3842547131: frequently asked questions

When can 3842547131 be shipped?

3842547131 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842547131 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842547131 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842547131, subject to availability and destination.
