Bosch Rexroth 3842547068

CURVE 320+ HOR AL 30° R500

MPN: 3842547068
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547068?

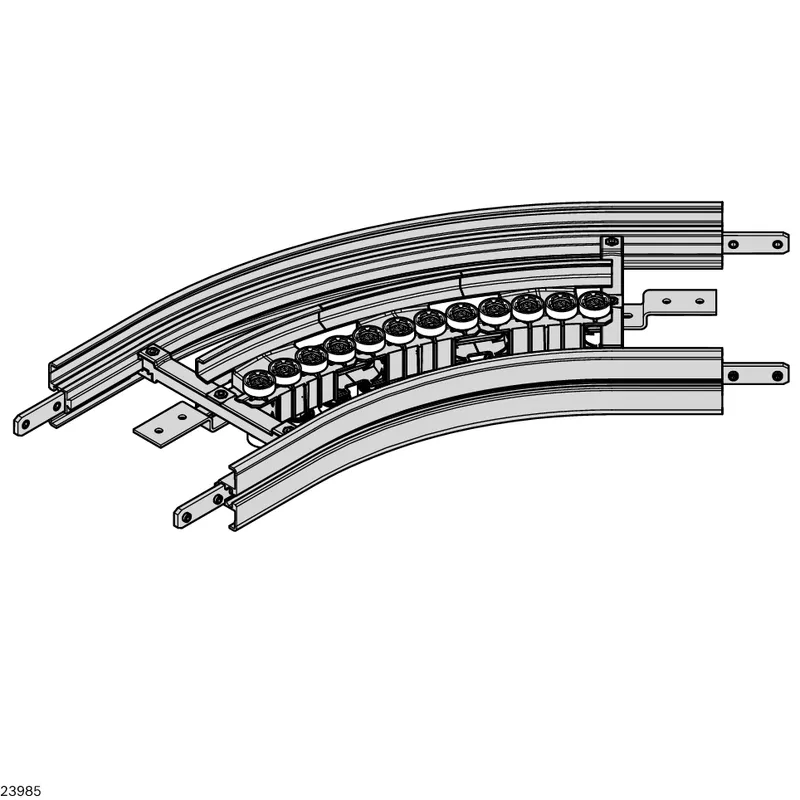

Roller curve horizontal AL VFplus 320 30°

Patented roller elements for low-friction, quieter changes in chain direction

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant materials

Specifications

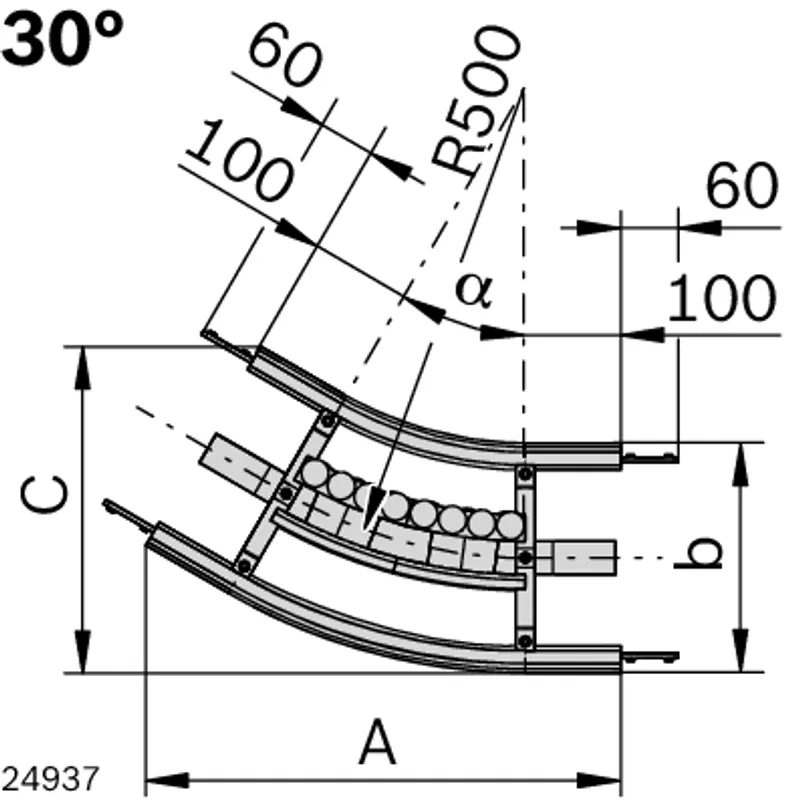

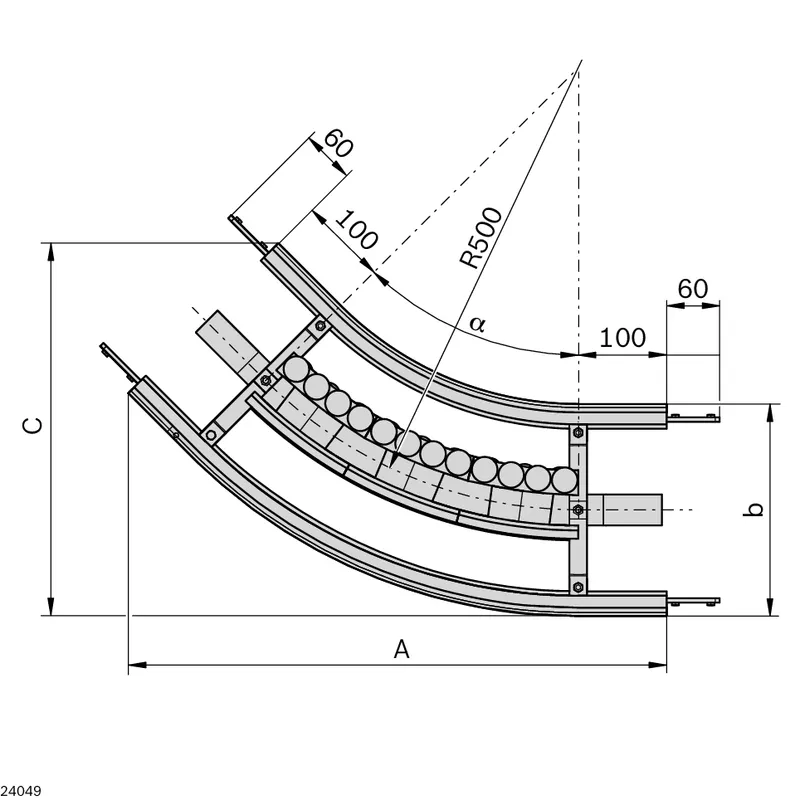

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	516.6
Size [b] [mm]	320
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Connector: Steel, galvanized; Profile: Aluminum, anodized; Roller carrier: PA 66; Rollers: PA
Actual chain length [m]	2x 0,46
Effective sliding rail length [m]	5x 0,46
Required accessories	Slide rail: Length calculation
Weight [kg]	2.59
