Bosch Rexroth 3842547057

CAM WHEEL 120+ AL 45°

MPN: 3842547057
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547057?

Curve wheel AL VFplus 120 45°

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant material

No interfering contours above chain plate height

Can be used horizontally and vertically (for wedge conveyors)

Specifications

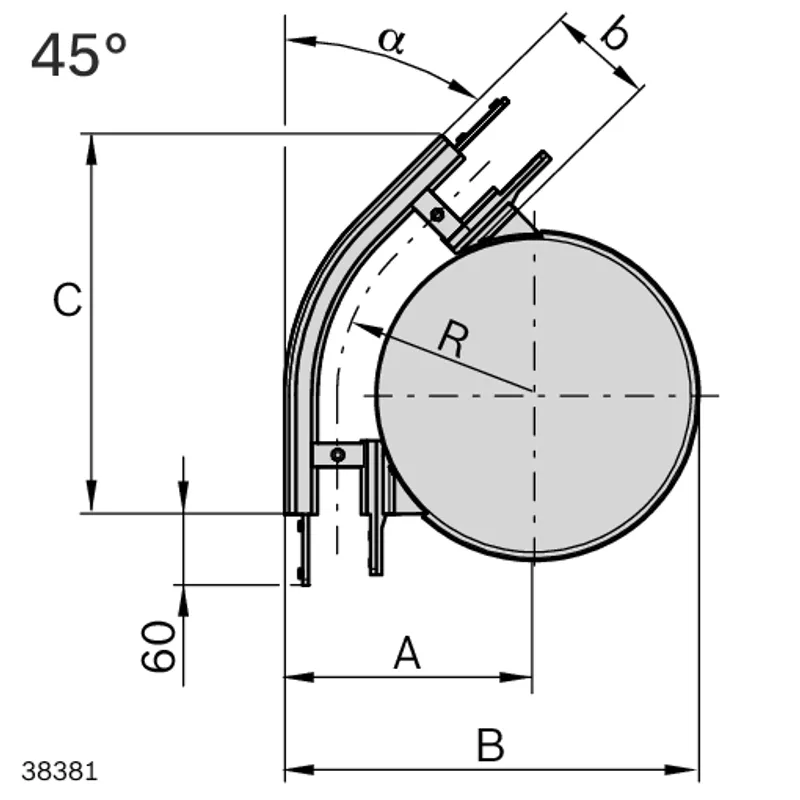

Deflection angle [α] [°]	45
Dimension A [mm] [mm]	240.5
Size [b] [mm]	120
Dimension b [mm]	379.5
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA, white; Housing: Diecast aluminum
Actual chain length [m]	2x 0,34
Effective sliding rail length [m]	2x 0,44
Weight [kg]	3.4
