Bosch Rexroth 3842547052

CAM WHEEL 90+ AL 30°

MPN: 3842547052
Category: Curve AL

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842547052?

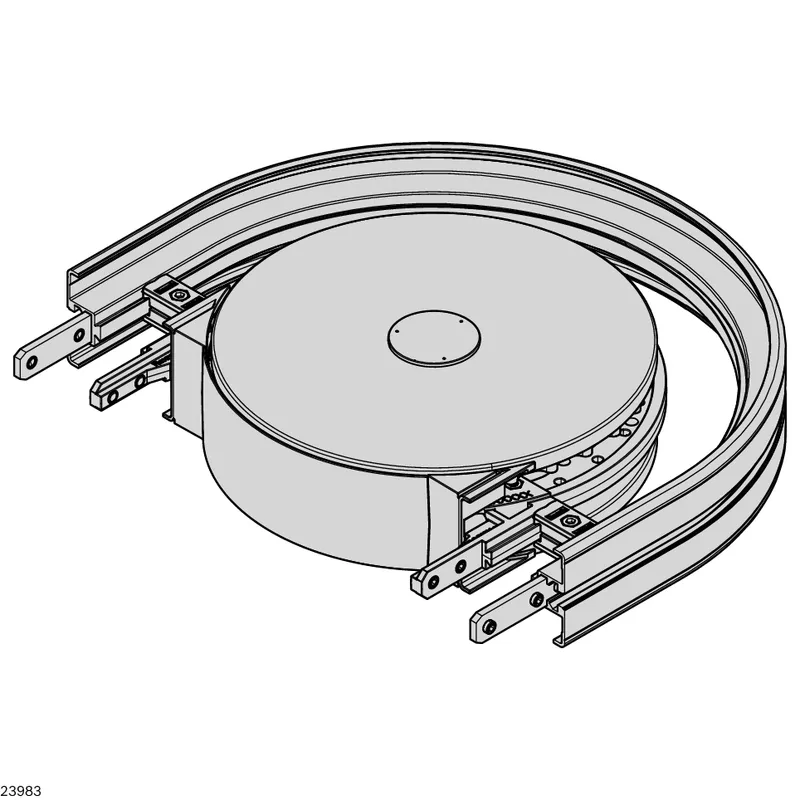

Curve wheel AL VFplus 90 30°

Ball bearing made of non-rusting steel (1.4301), with seal on both sides and FDA-compliant grease filling

Surfaces in contact with chain made of FDA-compliant material

No interfering contours above chain plate height

Can be used horizontally and vertically (for wedge conveyors)

Specifications

Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA, white; Housing: Diecast aluminum

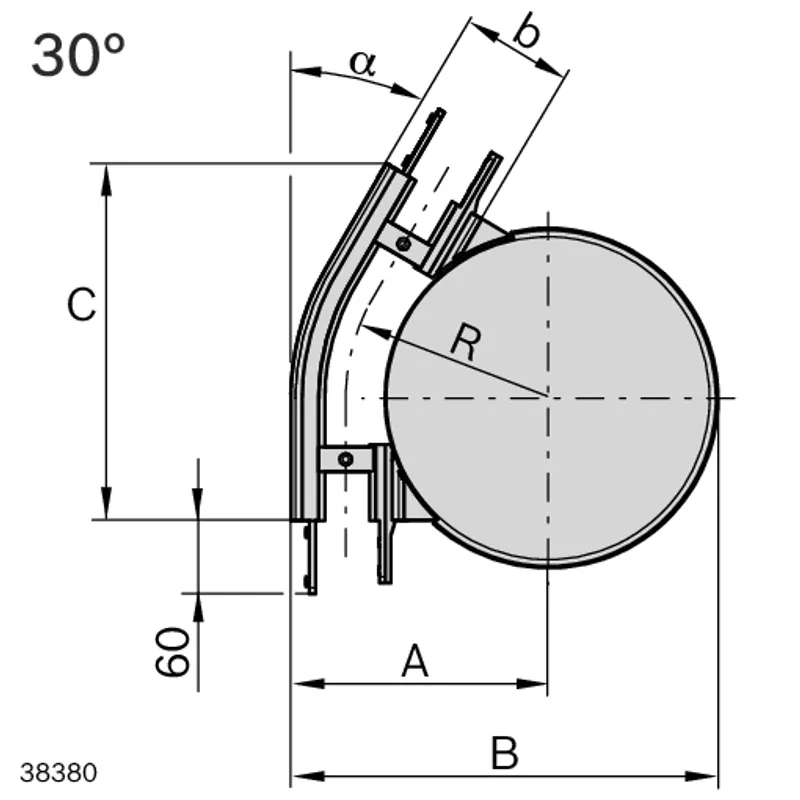

Deflection angle [α] [°]	30
Dimension A [mm] [mm]	210.5
Size [b] [mm]	90
Dimension b [mm]	349.5
Actual chain length [m]	2x 0,28
Effective sliding rail length [m]	2x 0,35
Weight [kg]	3.3
