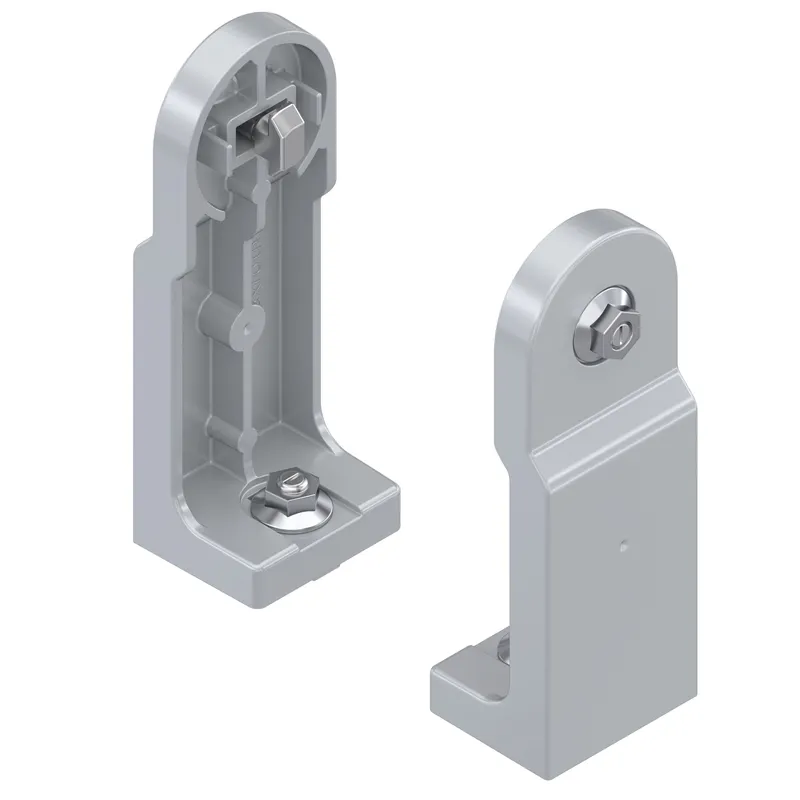

Bosch Rexroth 3842546632
CONSOLE VFPLUS AL, SET
- MPN
- 3842546632
- Category
- VarioFlow plus Leg sets AL
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842546632?

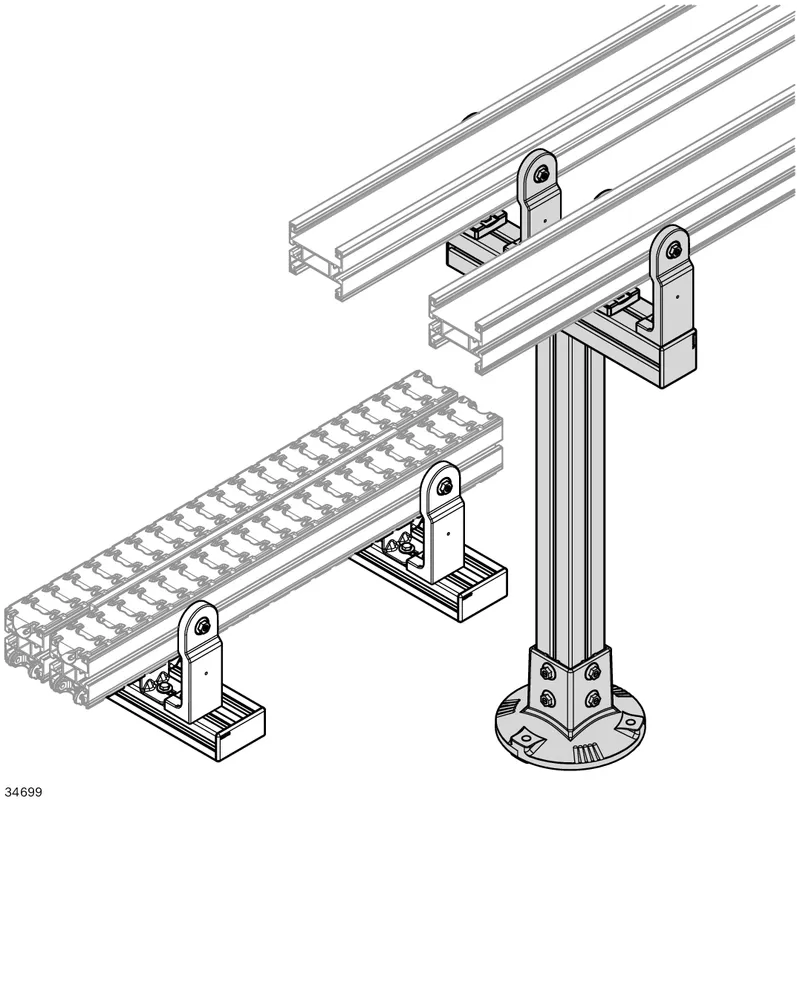

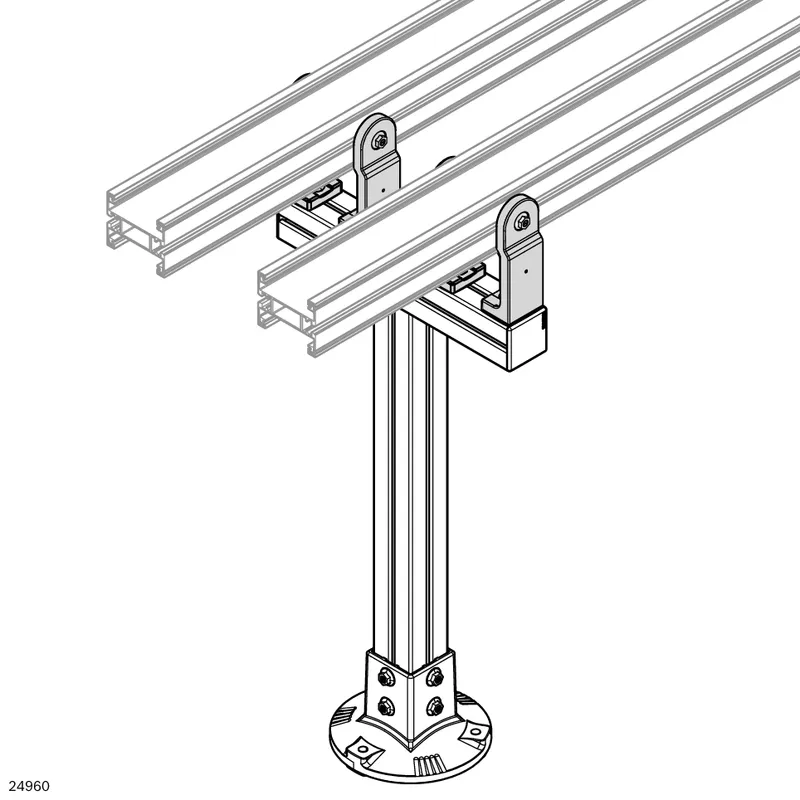

The supporting bracket allows for the assembly of one or more parallel sections on horizontal profiles at a defined distance from the conveyor medium.
The distance of the supporting brackets in the conveying direction is approx. 2 m, depending on speed, accumulation behavior and weight. They are fastened on a leg set made by the customer
The supporting brackets can also be used for ascending and descending conveyor sections (up to about 45°, depending on the returning chain) (with the supporting bracket AL, the centering lugs must be removed)
For a conductive connection, the contact washers must be mounted between the flange nuts or the washers and coated accessories (holders, …) in order to break through the coating
Very simple assembly thanks to pluggable screw connection
Easy-to-clean design with draining surfaces

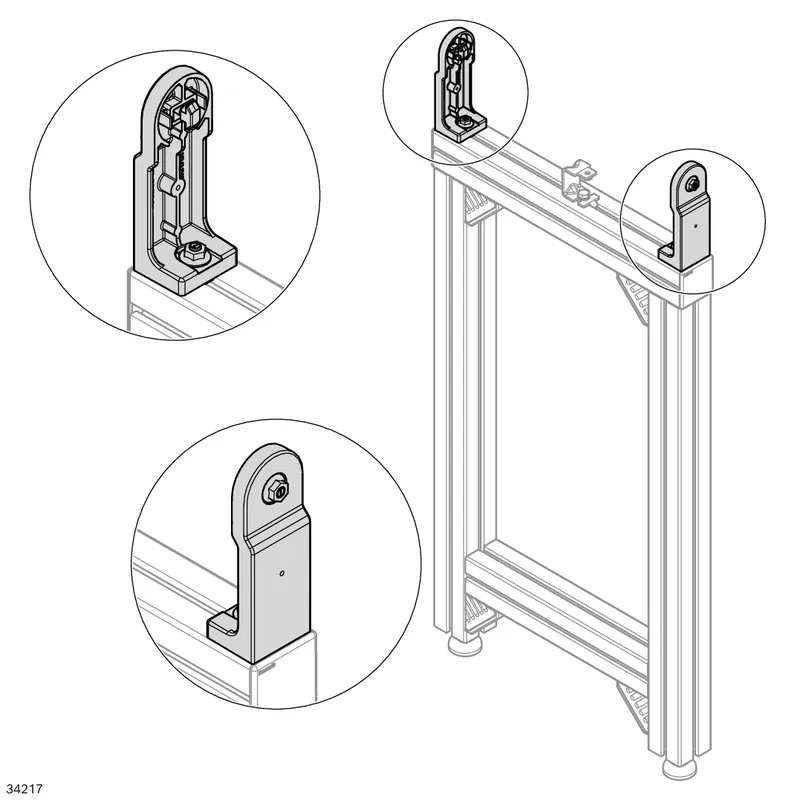

Simple centering of the supporting brackets in the slot thanks to centering lugs

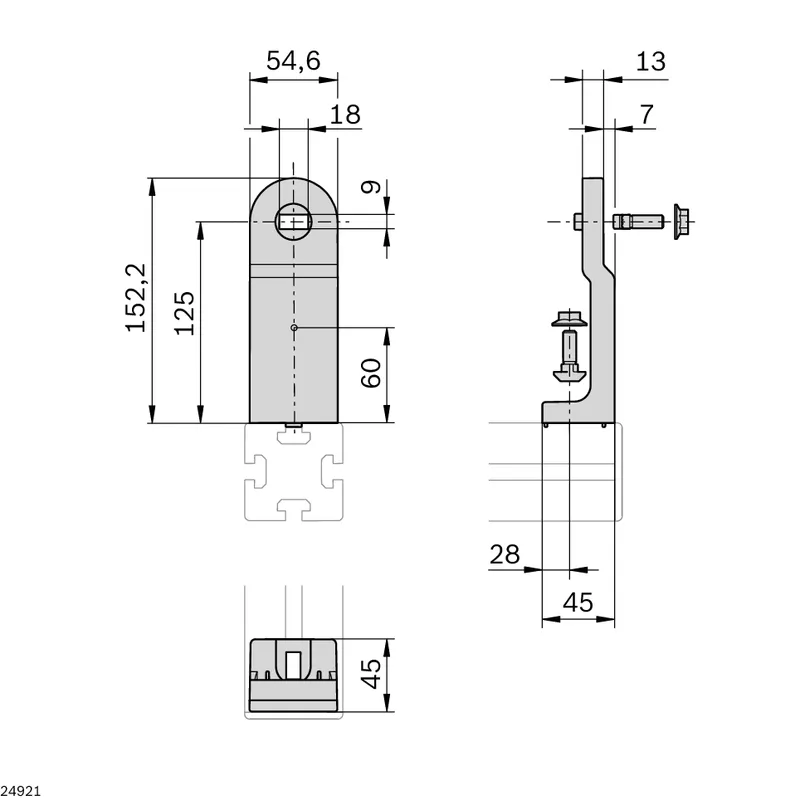

Specifications
Specifications
| Profile slot | 10 |
| Color | Silver |
| Packaging unit | Set |
| Scope of delivery | Set (2 pcs) incl. fastening material |
| Material information | Fastening material: Steel, galvanized; Holder: Diecast aluminum |
| Material | Diecast aluminum |
| Fastening material | 4x T-bolt M8x25; 4x flange nut M8 |
| Weight [kg] | 0.41 |
