Bosch Rexroth 3842546519
SAFETY CATCH MD
- MPN
- 3842546519
- Category
- Counterbalance for lifting doors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842546519?

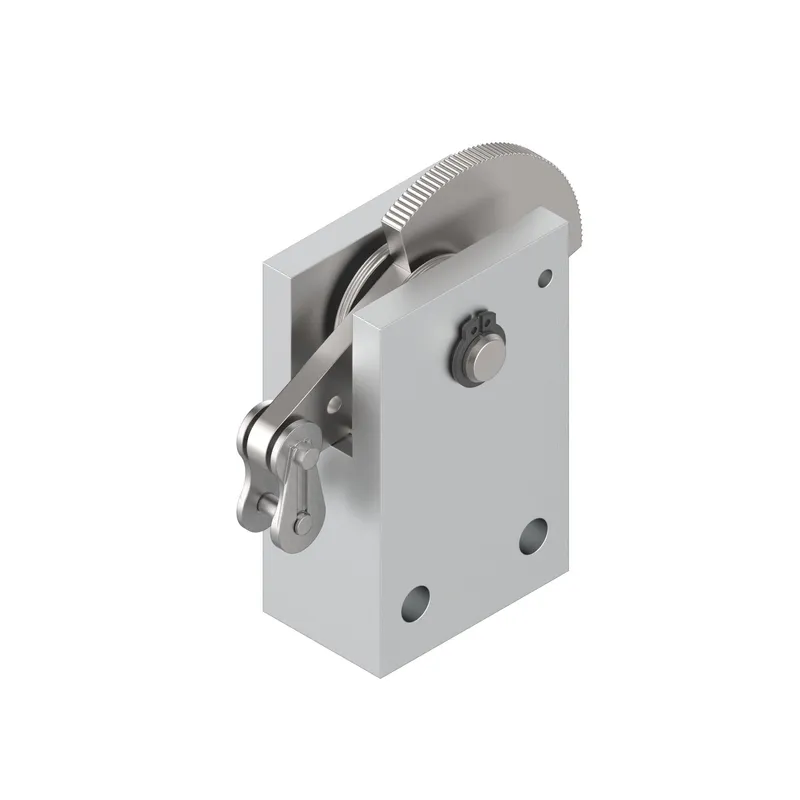

Safety catch
The safety catch in conjunction with the other components prevents a lifting door from falling if a cable breaks

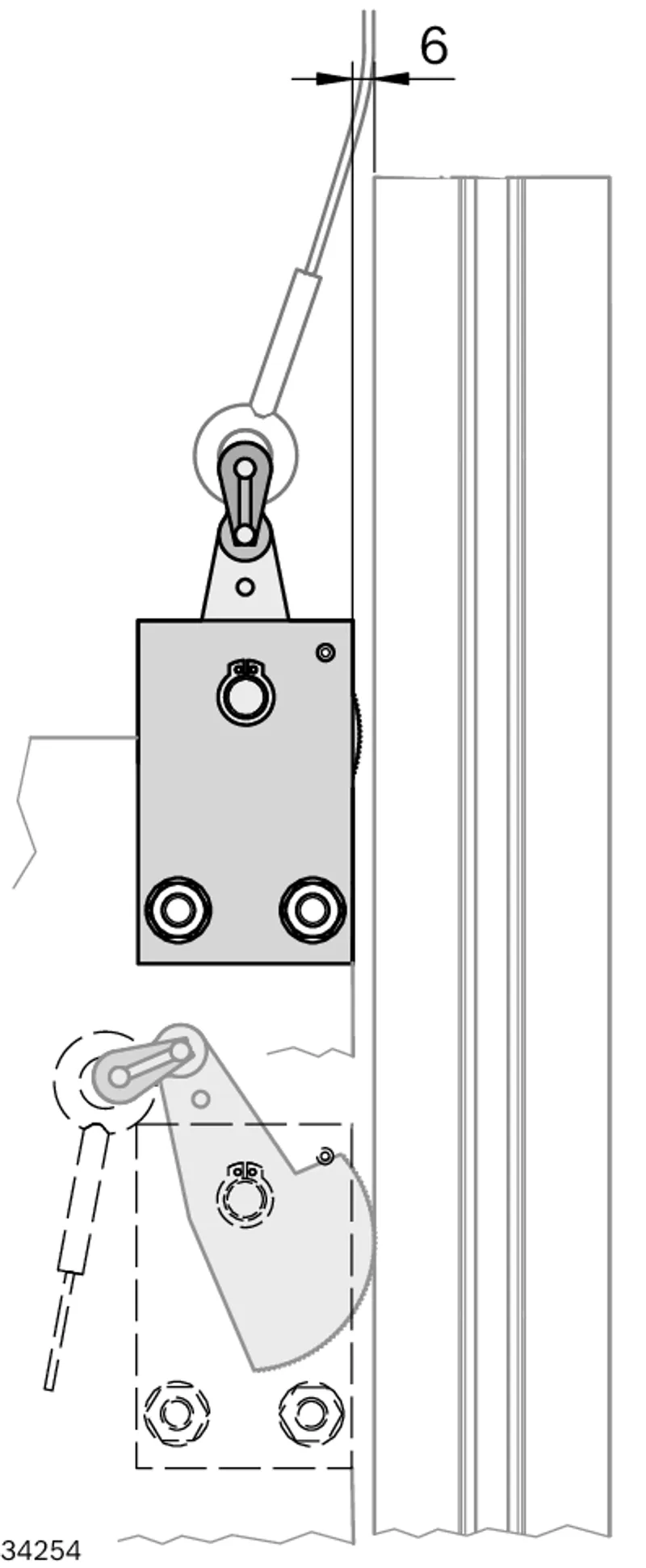

If a cable breaks, the revolving part of the safety catch jams against a counterbearing and is wedged in position in the guide profile

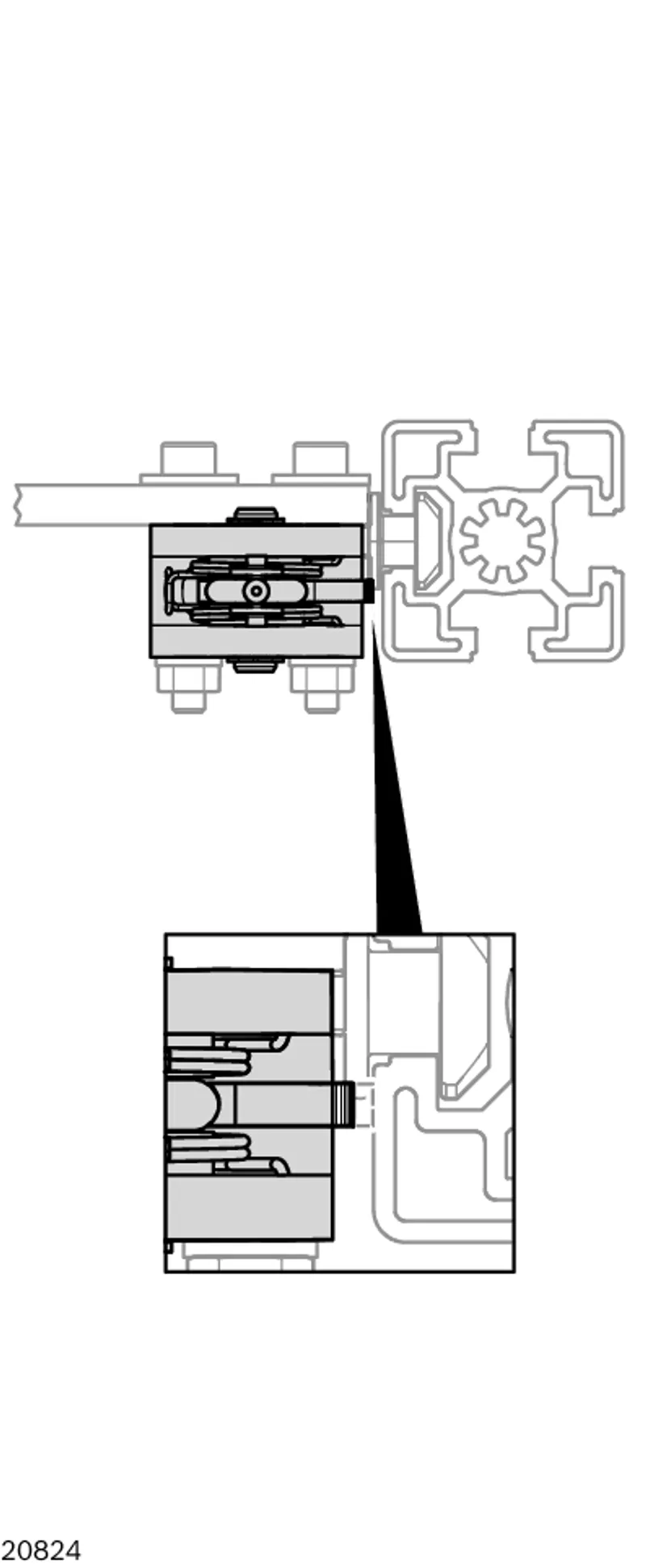

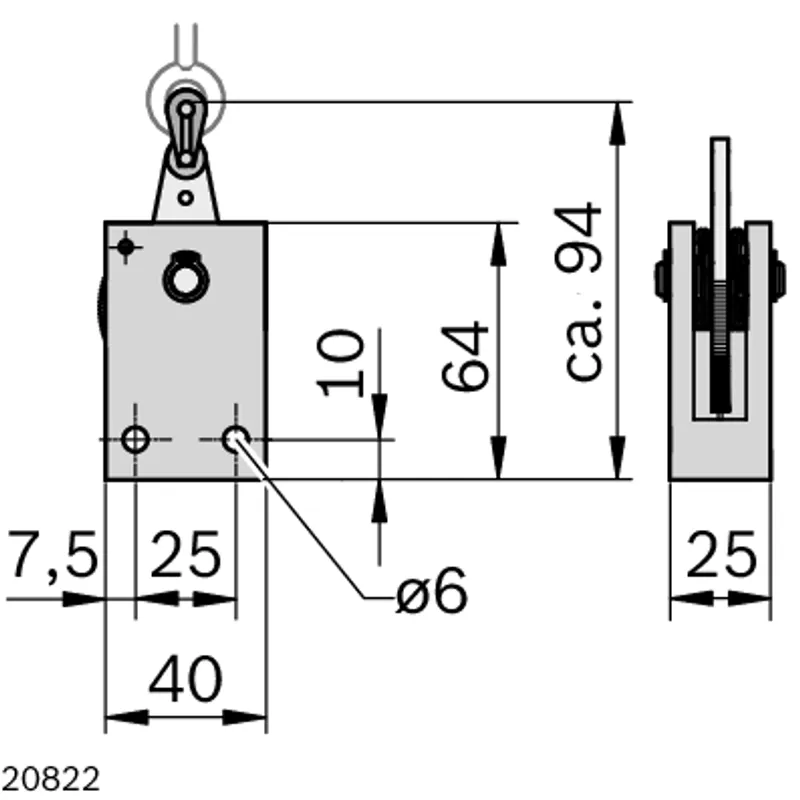

Gap dimension between safety catch body and lateral guide profile: 6 mm

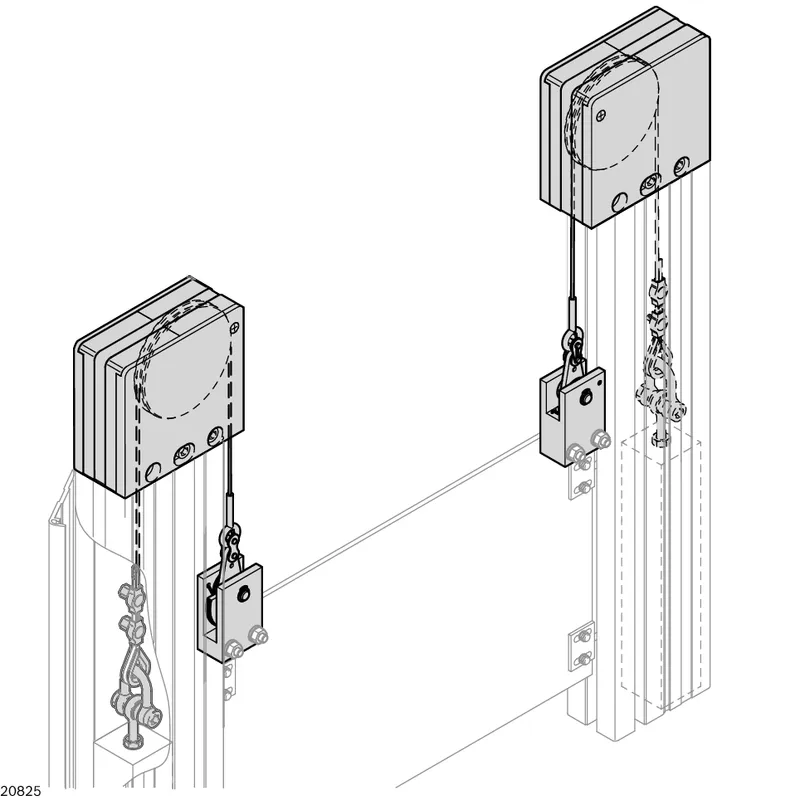

One safety catch is required for each cable:
– max. load per safety catch: 250 N
– min. load per safety catch: 25 N

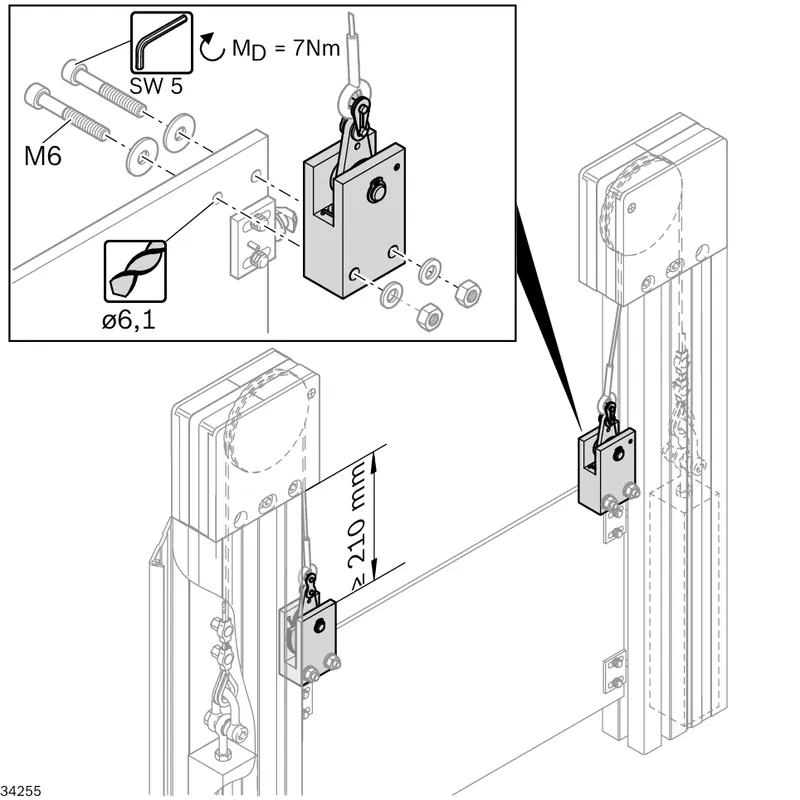

The counterbearing (e.g. slider 3 842 530 303 should be mounted under the safety catch and as close as possible to it
It can also be mounted without a frame on surface elements which have adequate transverse rigidity
Before installation and use please read the data sheet containing notes on use which is enclosed with the product
Specifications
Specifications
| Profile slot | 10 |
| Packaging unit | 1 |
| Force [Fmin] [N] | 25 |
| Force [Fmax] [N] | 250.0 |
| Scope of delivery | Incl. chain lock for securing the cable |
| Delivery information | Assembled |
| Material information | Bolt: Steel, hardened; Chain lock: Steel, nickel-plated; Housing: Aluminum; Spacer disk: POM; Turntable: Steel, stainless |
| Recommended accessories | Counterbalance (3842518798); Fastening material for attaching the safety catch to the lifting door; Slider (3842564170); Strut profiles |
| Weight [kg] | 0.18 |
