Bosch Rexroth 3842545648

INTERMEDIATE PLATE 260/325

MPN: 3842545648
Category: Connection kits longitudinal conveyor

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842545648?

260/325 intermediate plate

Profile connector

Intermediate plate

Coupling

Connection kits

The coupling is used to connect the king shafts. A cross plate in the coupling compensates for alignment errors and concentricity tolerances.

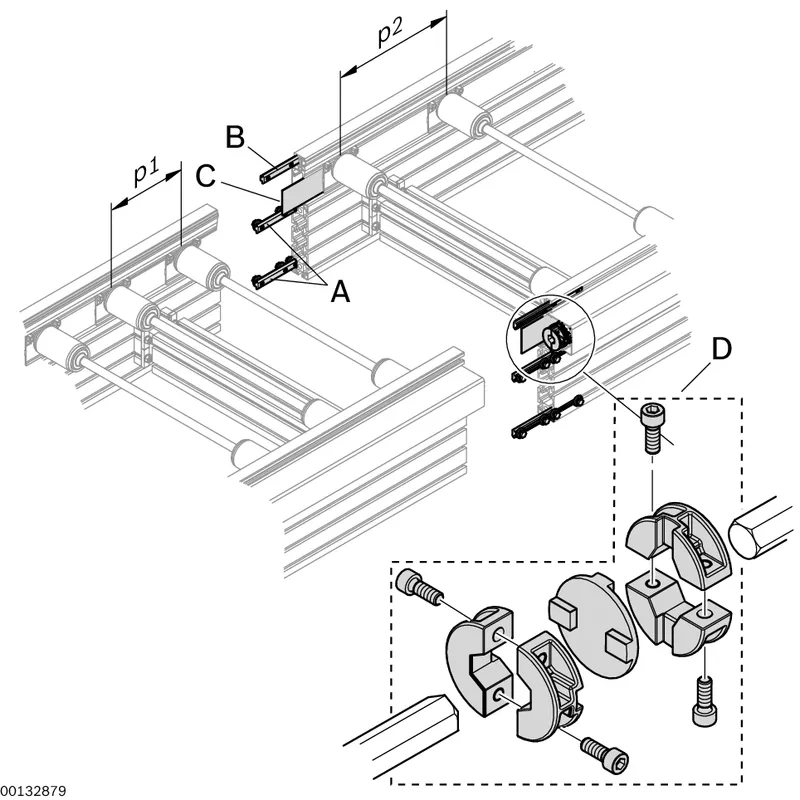

To connect two TS 5 modules, you will need:

— 4 profile connectors for section profiles ( A )

— 2 profile connectors for lateral guides ( B )

— 2 intermediate plates ( C )

— 1 coupling ( D )

Profile connectors for section profiles/lateral guides

The profile ends are connected to each other using profile connectors.

Intermediate plates for module transitions

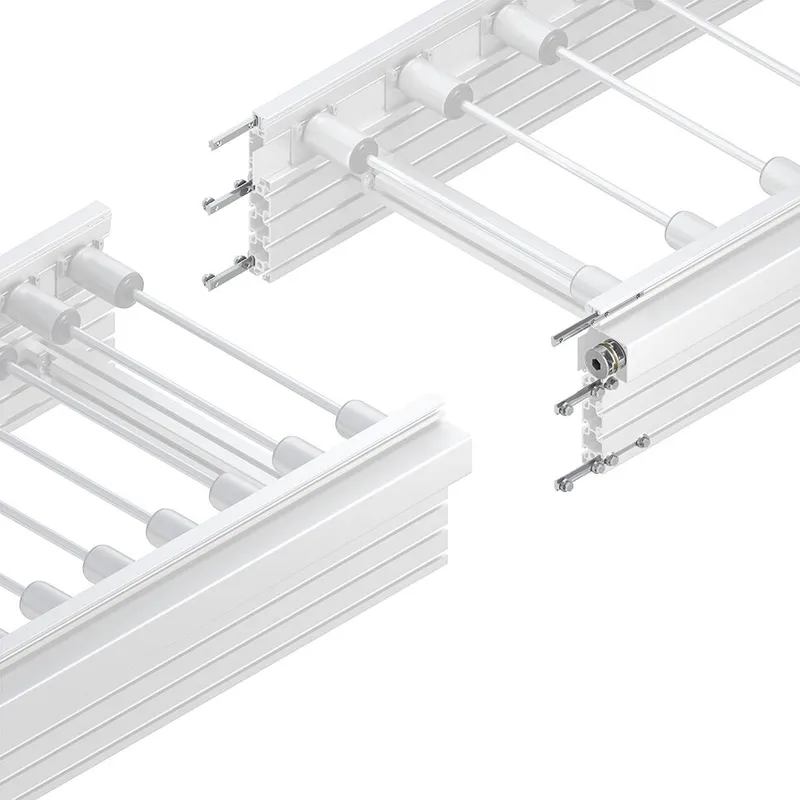

The modules (conveyor sections, drives, curves, diverters) are separated using intermediate plates with the respective roller dimension p.

For connecting the king shaft. Compensates for alignment errors and concentricity tolerances.

Notice: The coupling disk must be greased by the customer.

Specifications

Packaging unit	10
Transition between different roller spacing dimensions [p1/p2]	260/325
Material	Steel, galvanized
Weight [kg]	0.2
