COLLAR SCREW M8X20-SW13-TX40
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Collar screw |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842541409 be shipped?
3842541409 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842541409 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842541409 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842541409, subject to availability and destination.

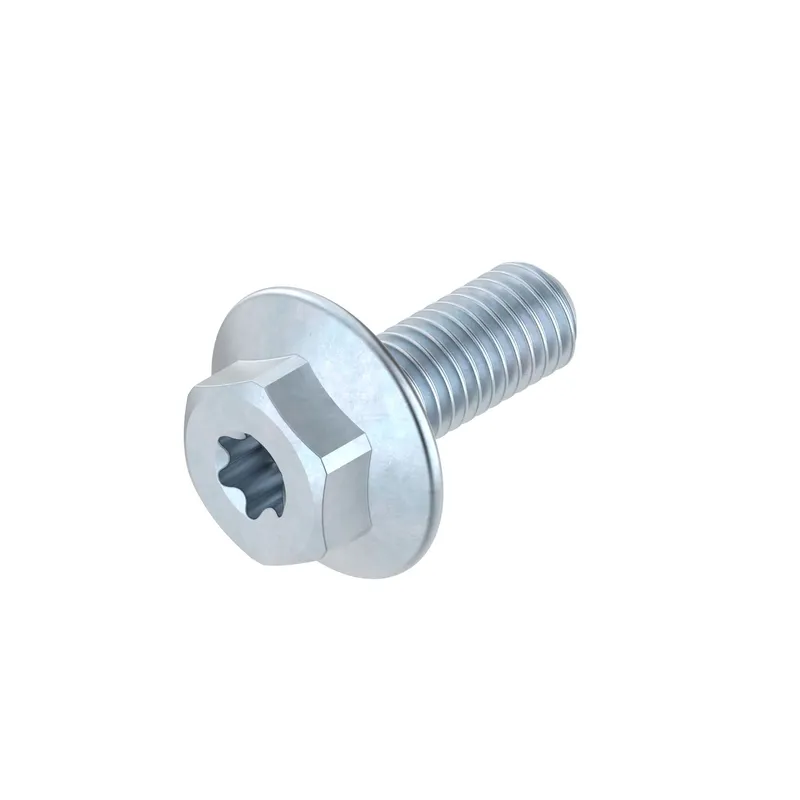

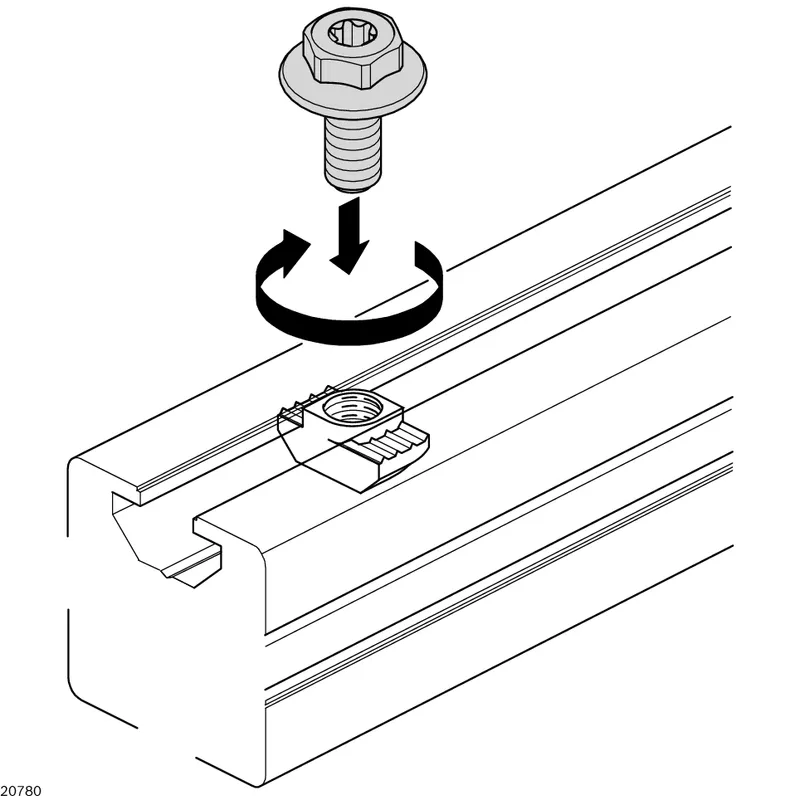

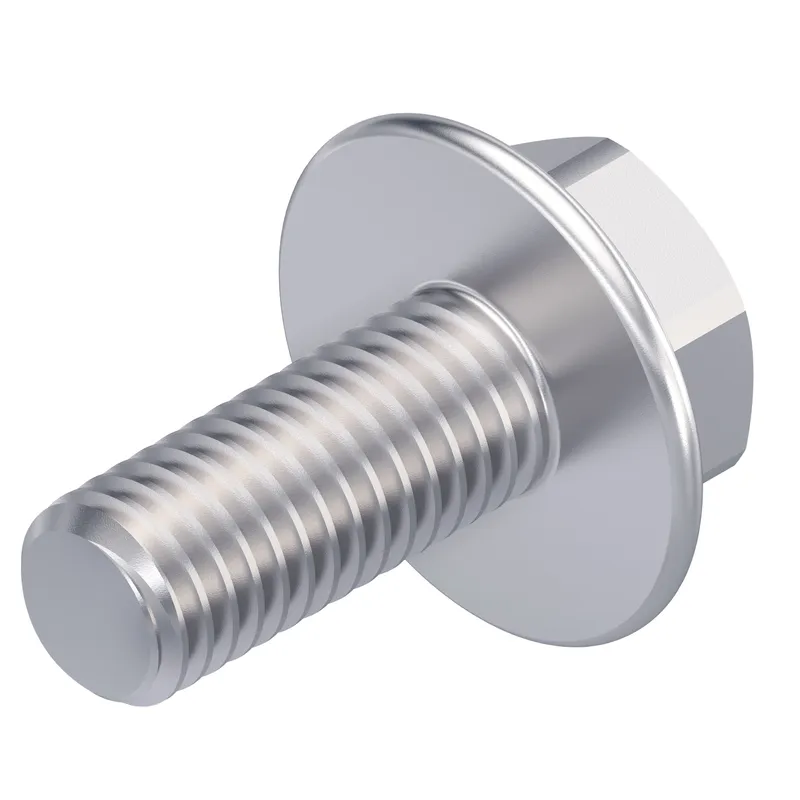

Collar screw M8x20-SW13-Torx 40 Collar screw with multi-function head so that tightening with a ring/open-end wrench (WS 13) or Torx screwdriver (T40) is possible Machine tightening possible Preferably to be used for fastening angles Quick and simple assembly Excellent force transmission via the wide flange ESD-capable Polymer spot for precise positioning of T-nut

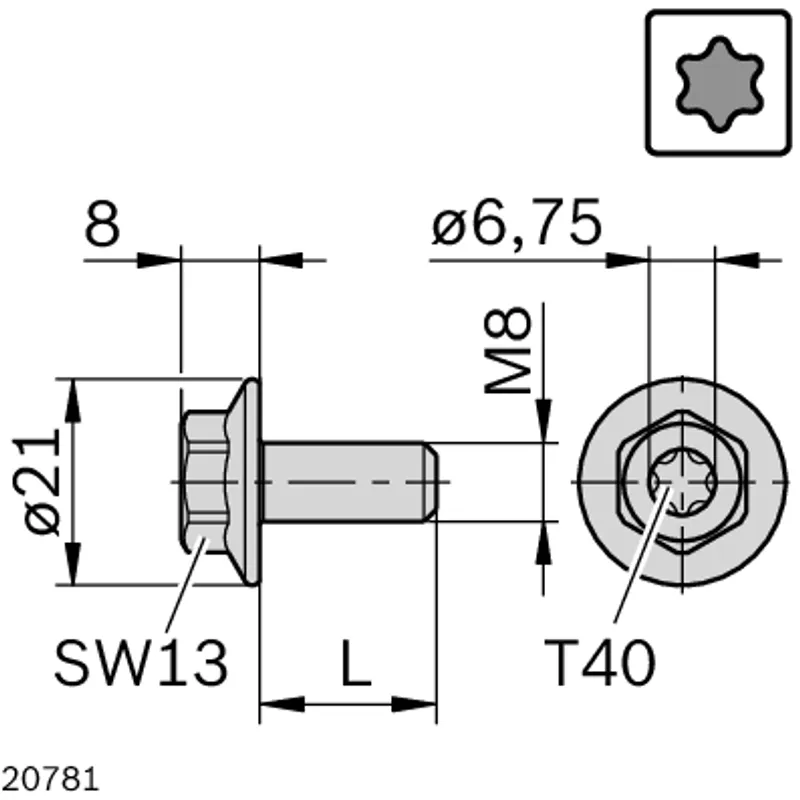

Specifications
Specifications
| ESD | Yes |
| Thread size | M8 |
| Packaging unit | 100 |
| Length [L] | 20.0 |
| Notice | Slot 10 for all brackets, except 40/40 and 60/60 |
| Material | Steel, galvanized |
| Required accessories | T-nut |
| Recommended accessories | Offset screwdriver (3842528588) |
| Weight [kg] | 0.02 |
