FOOT COMPLETE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | VarioFlow plus Leg sets AL |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842540173 be shipped?
3842540173 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842540173 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842540173 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842540173, subject to availability and destination.

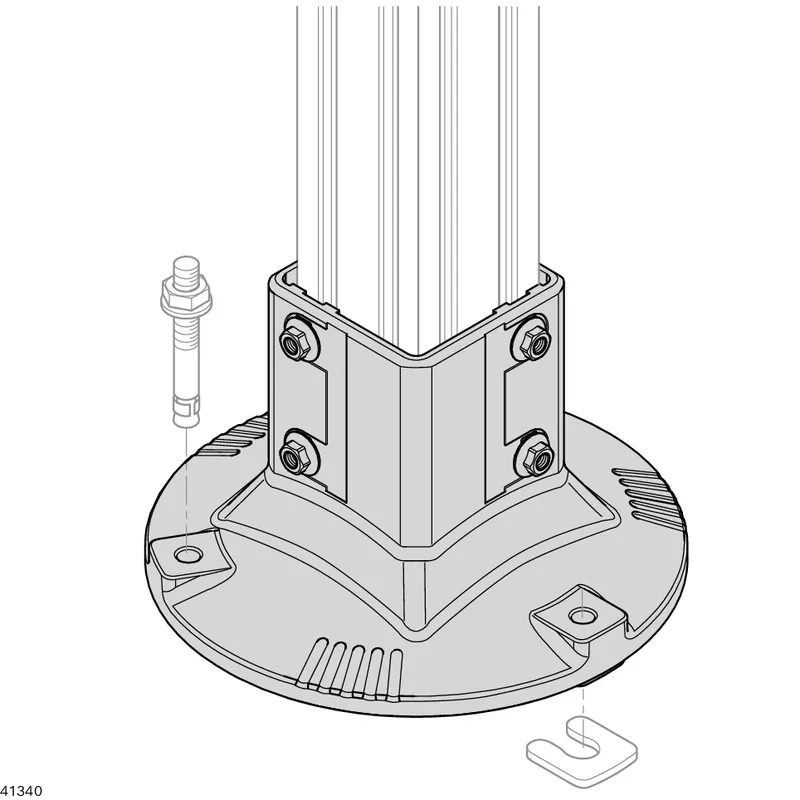

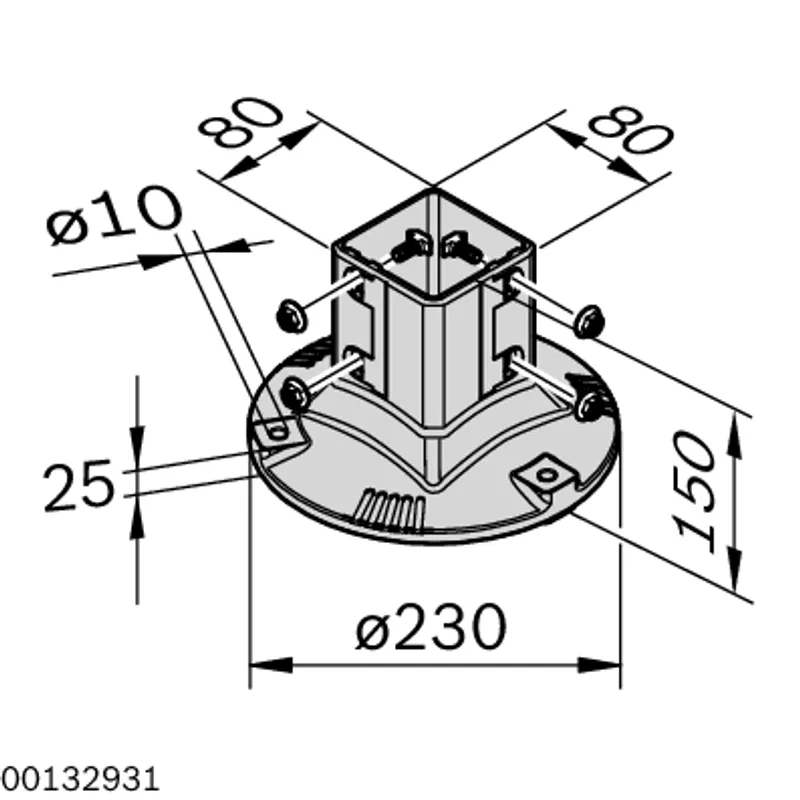

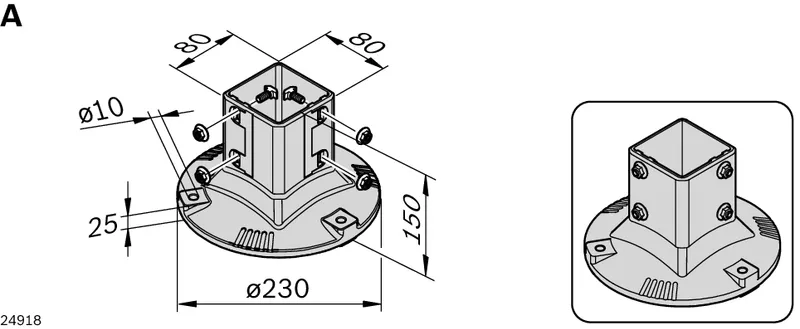

Foot 80x80 For construction of leg sets of 80x80L profiles Large installation surface for good stability Easy cleaning due to small number of horizontal surfaces Open on the inside to allow draining of liquids End stop as depth limit for profile (removable)
Specifications
Specifications
| Modular dimension [mm] | 40 |
| Profile slot | 10 |
| Color | White aluminum (RAL 9006) |
| Packaging unit | 1 |
| Size [b] [mm] | 160; 240; 320 |
| Scope of delivery | incl. fastening material (FS1) |
| Material information | Foot: Aluminum, painted; Woven wire grille and fastening material: Steel, galvanized |
| Material | Aluminum, painted |
| Fastening material | 4x T-bolt M8x25; 4x flange nut M8 |
| Required accessories | Floor dowel 3842540668; Washer 3842546717 or 3842546718 |
| Weight [kg] | 1.8 |
