Bosch Rexroth 3842537846

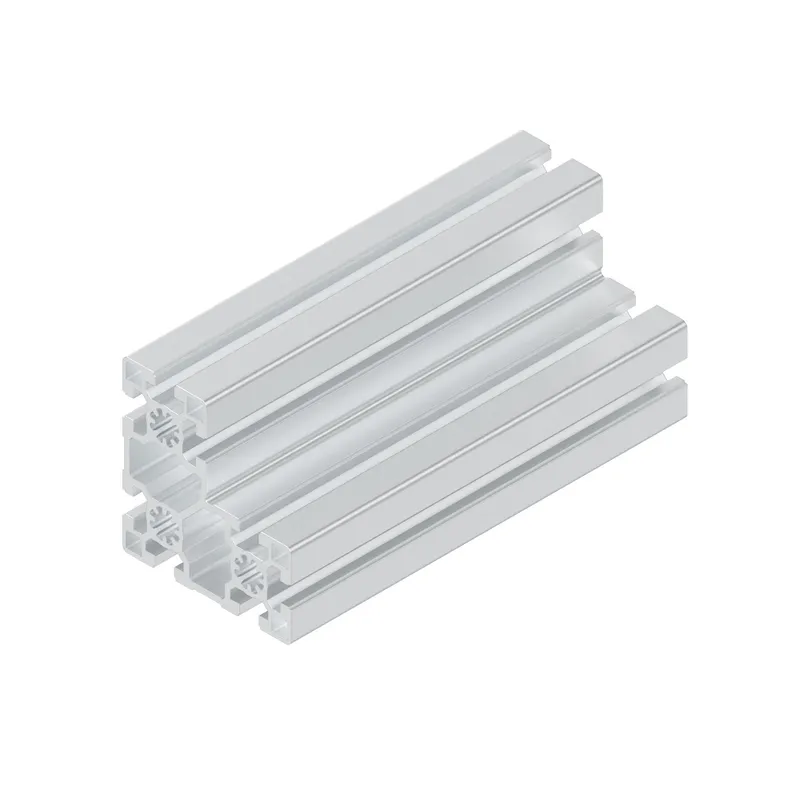

STRUT PROFILE 45X90X90L L=6170
- MPN
- 3842537846
- Category
- Strut profile
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842537846?
Strut profile 45x90x90L
Specifications
Specifications
| Condition on delivery | Single rod in standard length |

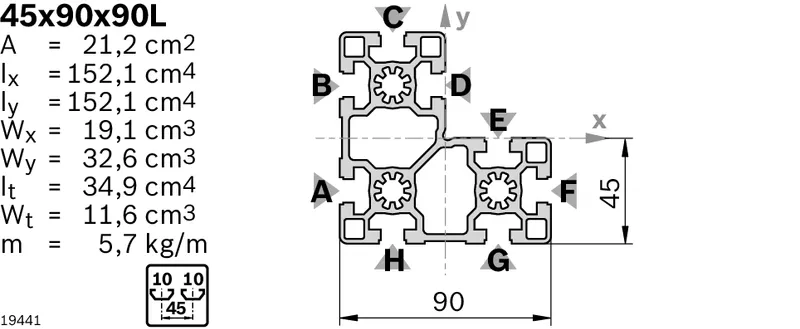

| Cross-section | 45x90x90L |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| Dimensions | 45x90x90 |
| Open slots | 8.0 |
| Profile type | angled |
| Color | Natural |
| Packaging unit | 1 |
| Mass [m] [kg] | 5.7 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 152.1 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 152.1 |
| Profile surface [A] [cm²] | 21.2 |
| Moment of resistance in the x-direction [Wx] [cm³] | 19.1 |
| Moment of resistance in the y-direction [Wy] [cm³] | 19.1 |
| Torsional moment of inertia [It] [cm⁴] | 34.9 |
| Moment of torsion resistance [Wt] [cm³] | 11.6 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Cover cap 45x90x90, black; Cover cap 45x90x90, signal gray; Cover cap with hole 45x90x90, black; Cover cap with hole 45x90x90, signal gray |
| Weight [kg] | 35 |
