Bosch Rexroth 3842537823

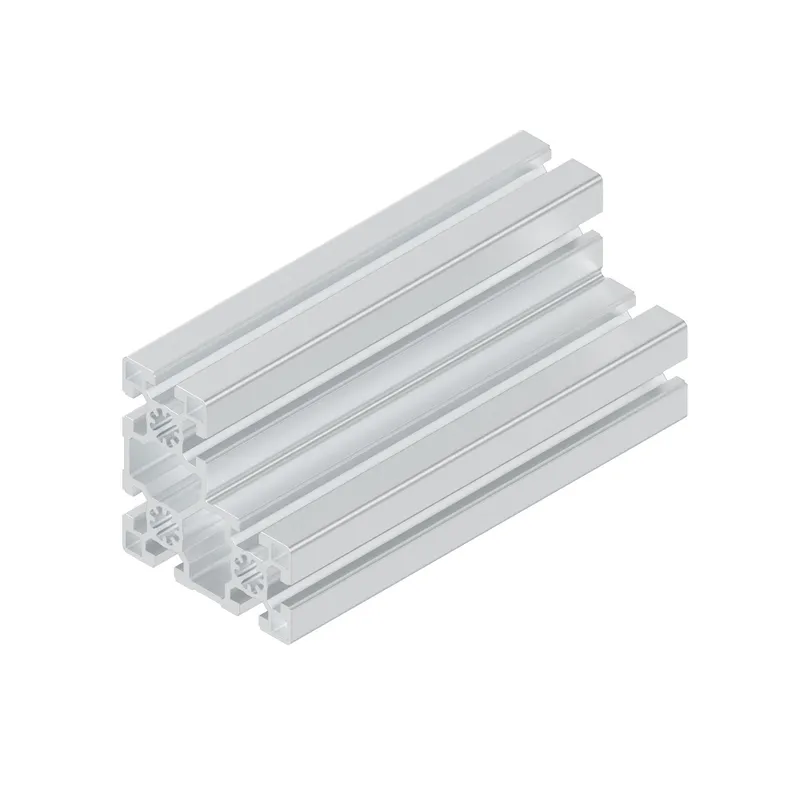

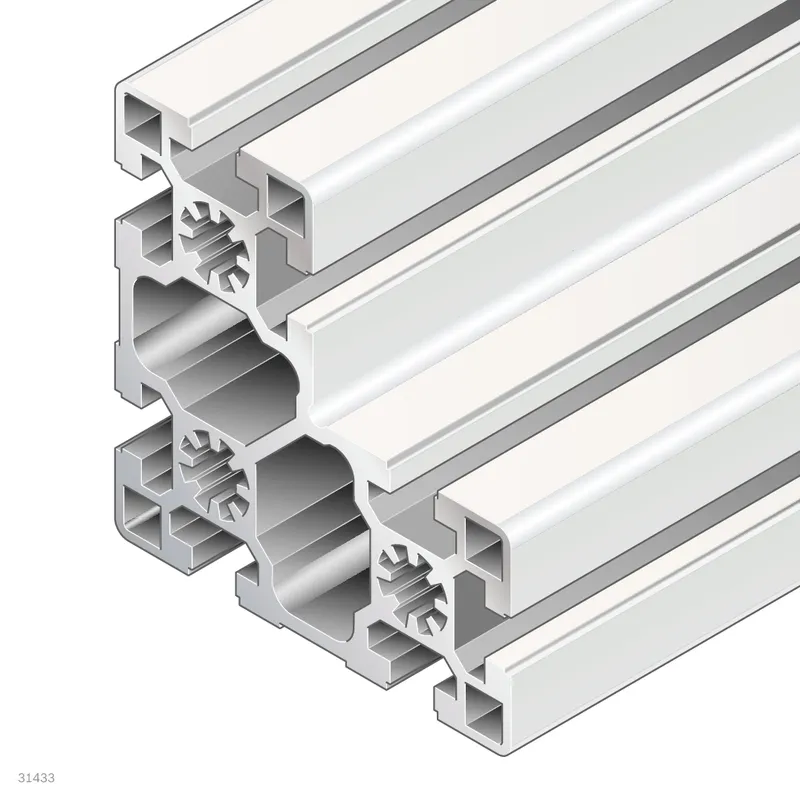

STRUT PROFILE 45X90X90L 8X6070MM

MPN: 3842537823
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842537823?

Strut profile 45x90x90L, 8xL=6070mm

Specifications

Condition on delivery	Packaging unit in standard length

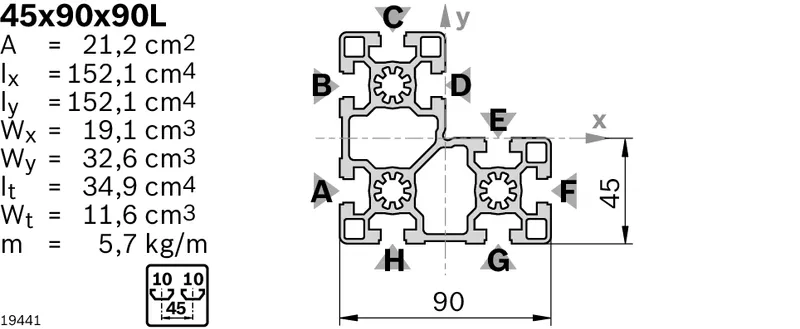

Cross-section	45x90x90L
Modular dimension [mm]	45
Profile slot	10
ESD	Yes
Dimensions	45x90x90
Open slots	8.0
Profile type	angled
Color	Natural
Delivery unit	8
Mass [m] [kg]	5.7
Area moment of inertia in x-direction [lx] [cm⁴]	152.1
Area moment of inertia in y-direction [ly] [cm⁴]	152.1
Profile surface [A] [cm²]	21.2
Moment of resistance in the x-direction [Wx] [cm³]	19.1
Moment of resistance in the y-direction [Wy] [cm³]	32.6
Torsional moment of inertia [It] [cm⁴]	34.9
Moment of torsion resistance [Wt] [cm³]	11.6
Profile adaption	M12: in the central bore at the intersection of slots A and H
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 45x90x90, black; Cover cap 45x90x90, signal gray; Cover cap with hole 45x90x90, black; Cover cap with hole 45x90x90, signal gray
Weight [kg]	280
