DAMPER DA1/B

MPN: 3842535360
Category: Damper TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

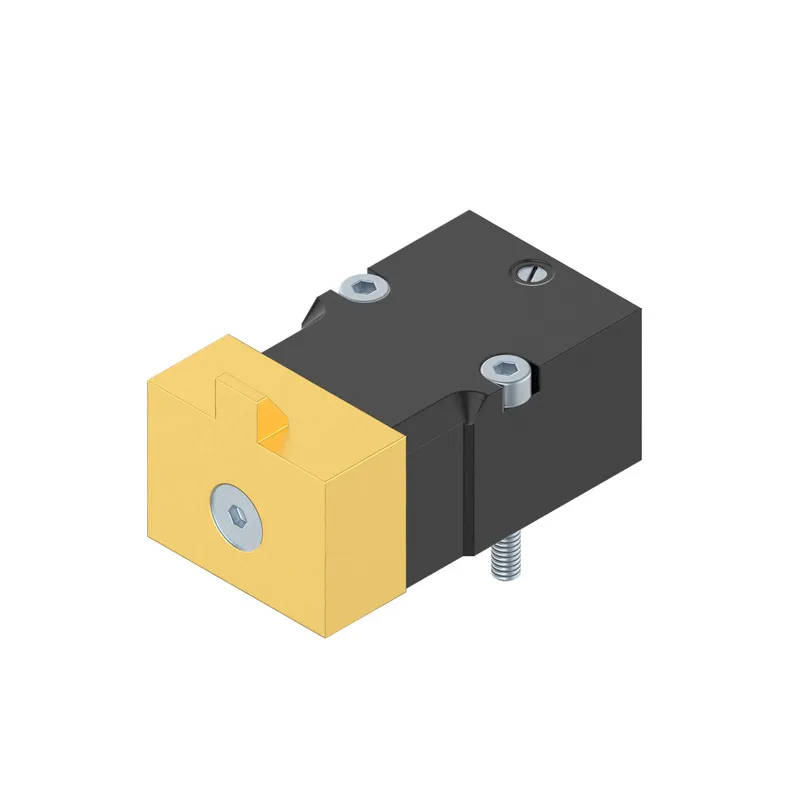

What is the Bosch Rexroth 3842535360?

Damper DA 1/B

Pneumatic damper

Degree of damping adjustable

Workpiece pallet load 0.5 kg to 6 kg permissible (with conveying speed 9 m/min)

Specifications

Dry room [%rF]	<1
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Mass [m] [kg]	0.5
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	10; 10; 7; 8; 9
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	Incl. fastening material for assembly on conveyor section; Pneumatic straight fitting (pushlock type)
Delivery information	Fully assembled
Clean room classification	ISO class 7

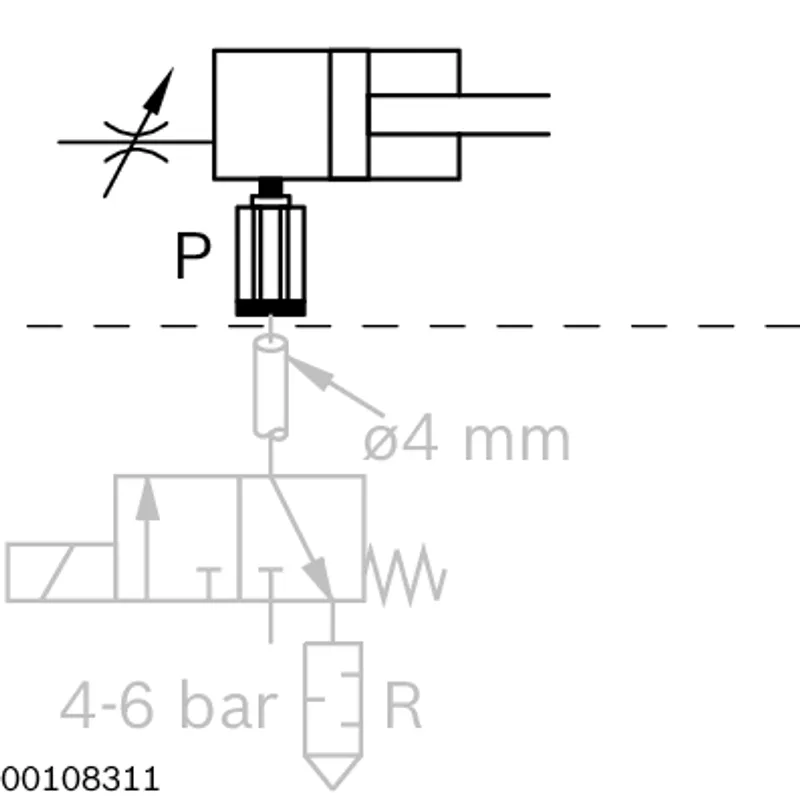

Required accessories	Pneumatic valve. Recommendation: Rexroth M5, nominal flow rate 100 l/min
Weight [kg]	0.3
