What is the Bosch Rexroth 3842532762?

PE-VF/H

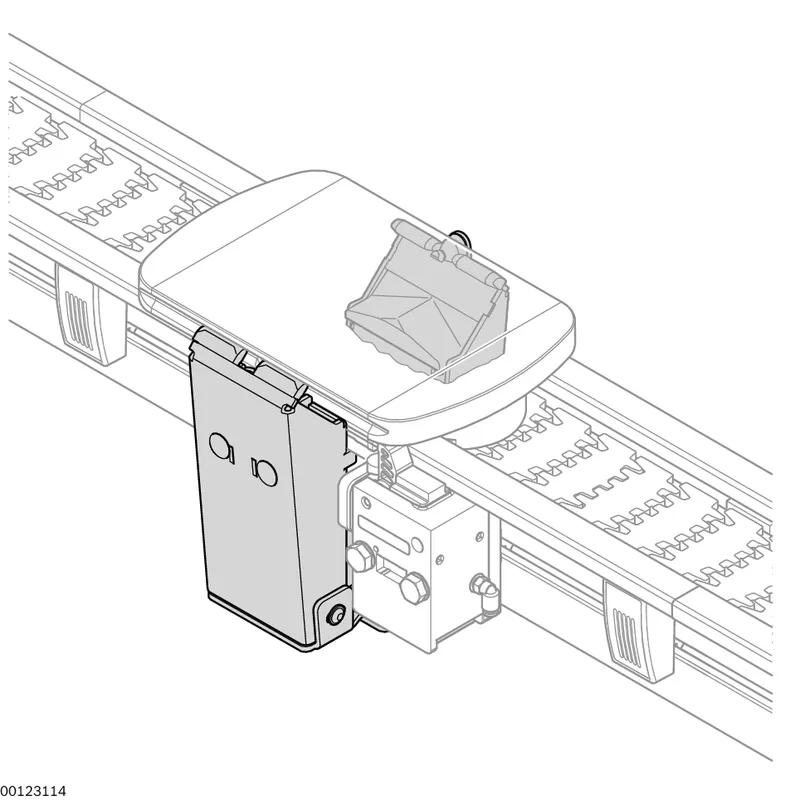

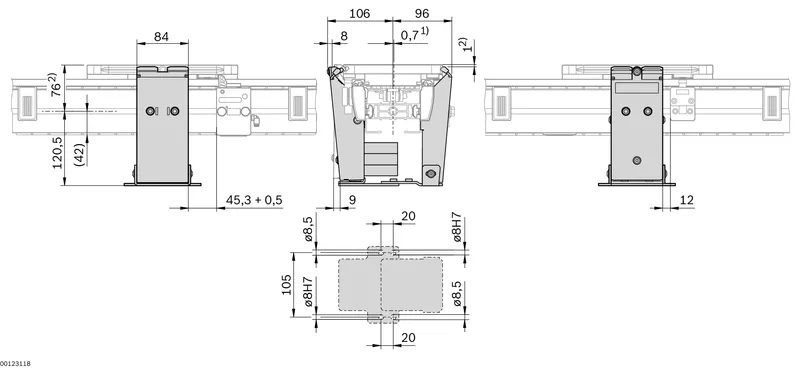

The plier-shaped form of the positioning unit (PE) makes it highly resistant to dirt and shavings and thus suitable for dirty environments.

The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing

Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm)

Maximum vertical press force (p = 4 bar): 400 N

Maximum retention force (p = 4 bar) in the direction of transport: 300 N

Suitable for retrofitting without disrupting the lateral guide

The switch bracket can be installed in any position

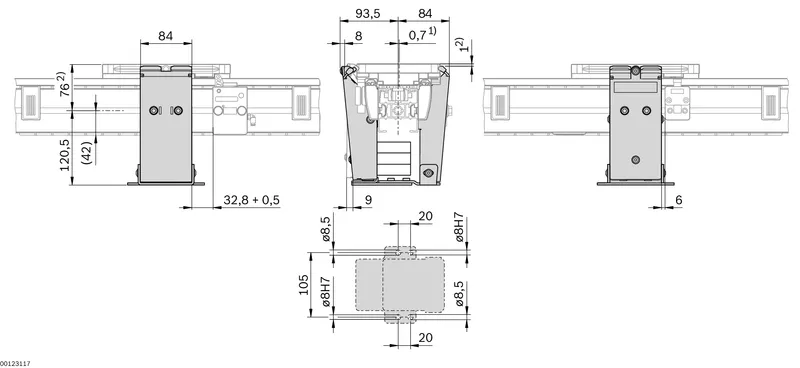

Minimum length of the workpiece pallets in order to incorporate the positioning unit:

Size 65: L = 125 mm

Size 90: L = 125 mm

2 positioning units can be combined for workpiece pallets with L > 250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer

Position inquiry with assembly kit and 2 M12x1 sensors on the housing (sensor not in the scope of delivery) or with 3 842 535 150 on the cylinder

Maximum permissible torque in the plier area: 60 Nm
