Bosch Rexroth 3842528772
GLIDE PLATE VF90 STS
- MPN
- 3842528772
- Category
- VarioFlow workpiece pallet
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842528772?
Steel wear pad VFplus 90
Level WT surface with no indentations
The entire top of the WT can be built upon since everything else on the section is ready-mounted below the top of the WT.
Compatible with the ID 15 identification system. The integrated installation of a mobile data tag is also possible
The product may also protrude beyond the WT if the position of the center of gravity is taken into consideration
The mounted workpiece pallet must be provided with wear pads (steel or PE) by the customer.

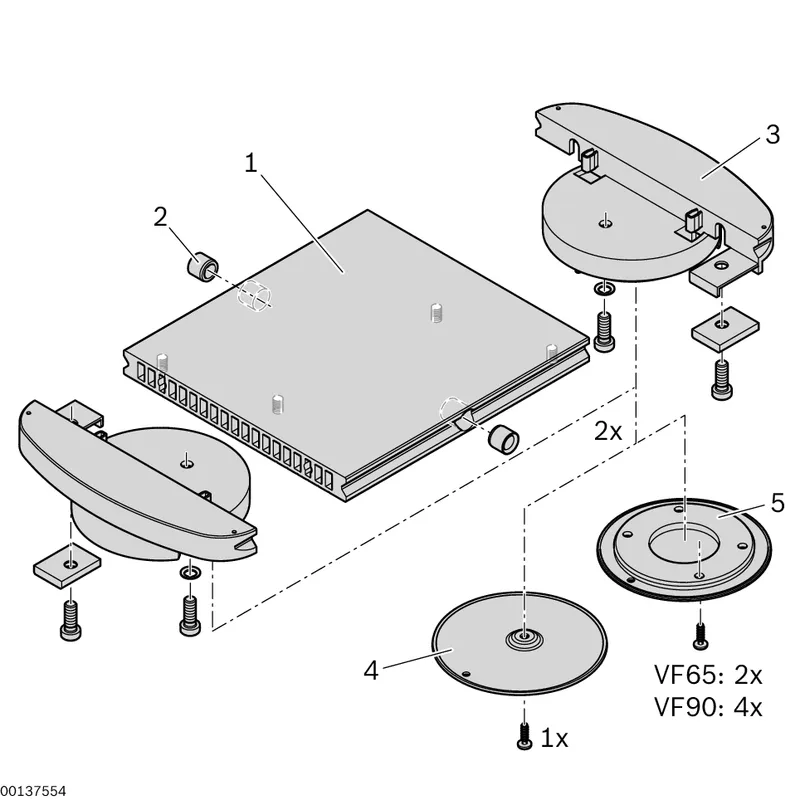

1: WT plate
2: Centering bushing
3: End pieces
4: Steel workpiece pallet wear pad
5: PE workpiece pallet wear pad
Specifications
Specifications
| ESD | Yes |
| Packaging unit | 10 |
| Size [b] [mm] | 90 |
| Hardness (Vickers) [HV] | ≥ 480 |
| Material | Steel, stainless |
| Required accessories | Screw 3842543246 (not in scope of delivery) |
| Weight [kg] | 0.08 |
