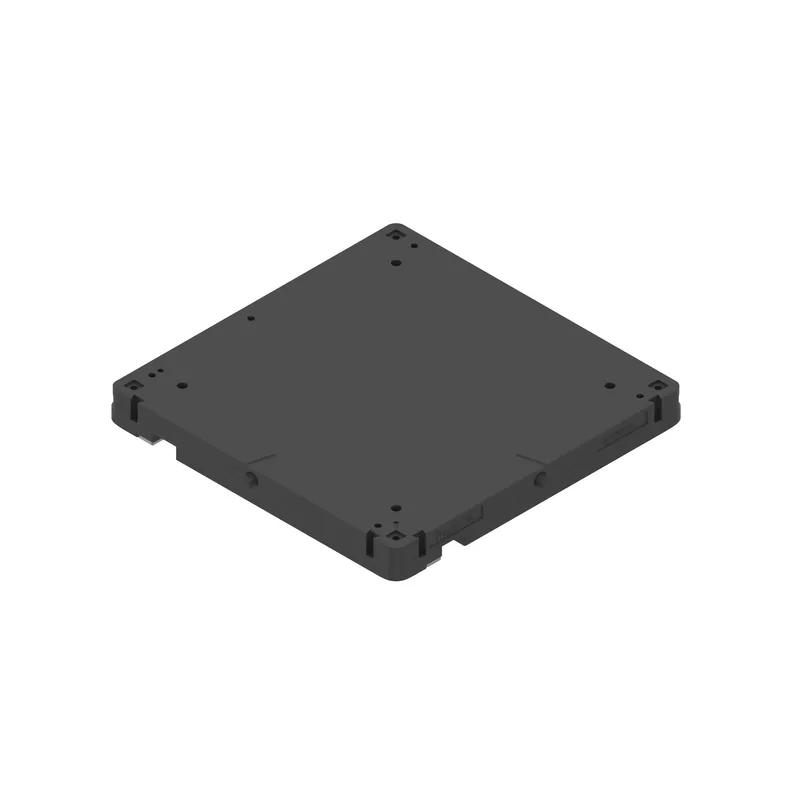

Bosch Rexroth 3842527122
WORKPIECE PALLET WT 1/K-80 KPL
- MPN
- 3842527122
- Category
- Workpiece pallet WT 1/K
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842527122?
Workpiece pallet WT 1/K 80x80
3 standard sizes
Double-sided prism slot for positioning in the positioning unit PE 1/P
Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200
Replaceable outer soles
Specifications
Specifications
| ESD | Yes |
| Dimension [a] [mm] | 80 |
| Dry room [%rF] | <1 |
| Dimension [c] [mm] | 19 |
| Dimension b [mm] | 38 |
| Workpiece pallet length [lWT] [mm] | 80 |
| Weight workpiece pallet [mWT] [kg] | 0.075 |
| Flatness [mm] | 0.5 |
| Admissible WT contact area weight [FGL] [kg] | 1.5 |
| Scope of delivery | Workpiece pallet, complete |
| Delivery information | Fully assembled |
| Material information | Wear pad: Polyamide (PA 66) |
| Material | PA 66 |
| Workpiece pallet width [bWT] [mm] | 80 |
| Clean room classification | ISO class 7 |
| Recommended accessories | Damping Elements; Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT; Switching element |
| Weight [kg] | 0.08 |
3842527122: frequently asked questions
When can 3842527122 be shipped?
3842527122 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842527122 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842527122 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842527122, subject to availability and destination.
