WORKPIECE PALLET WT 1/S-80 KPL

MPN: 3842526849
Category: Workpiece pallet WT 1/S

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

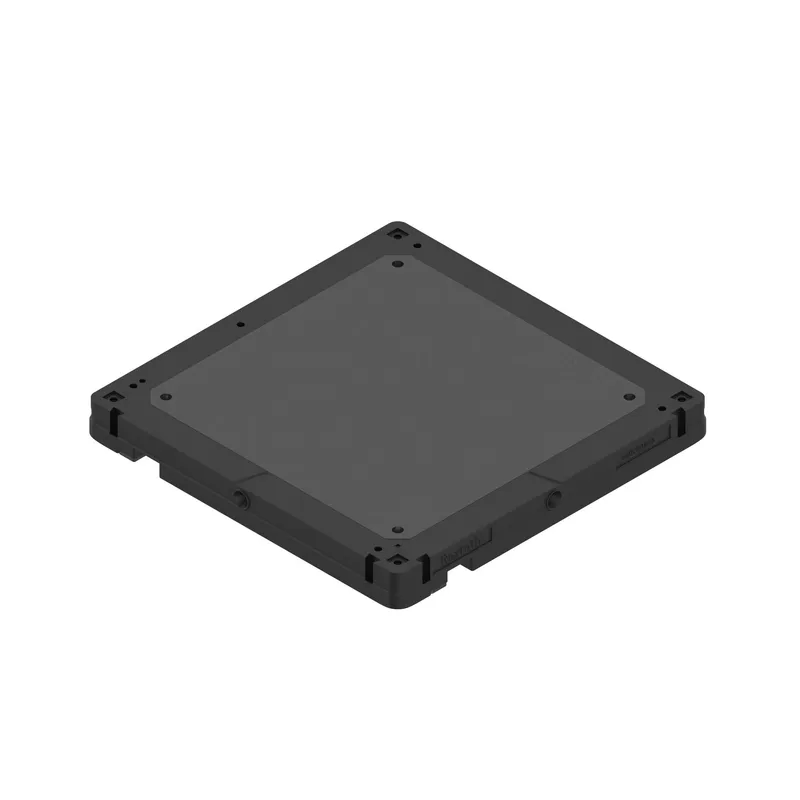

What is the Bosch Rexroth 3842526849?

Workpiece pallet WT 1/S 80x80

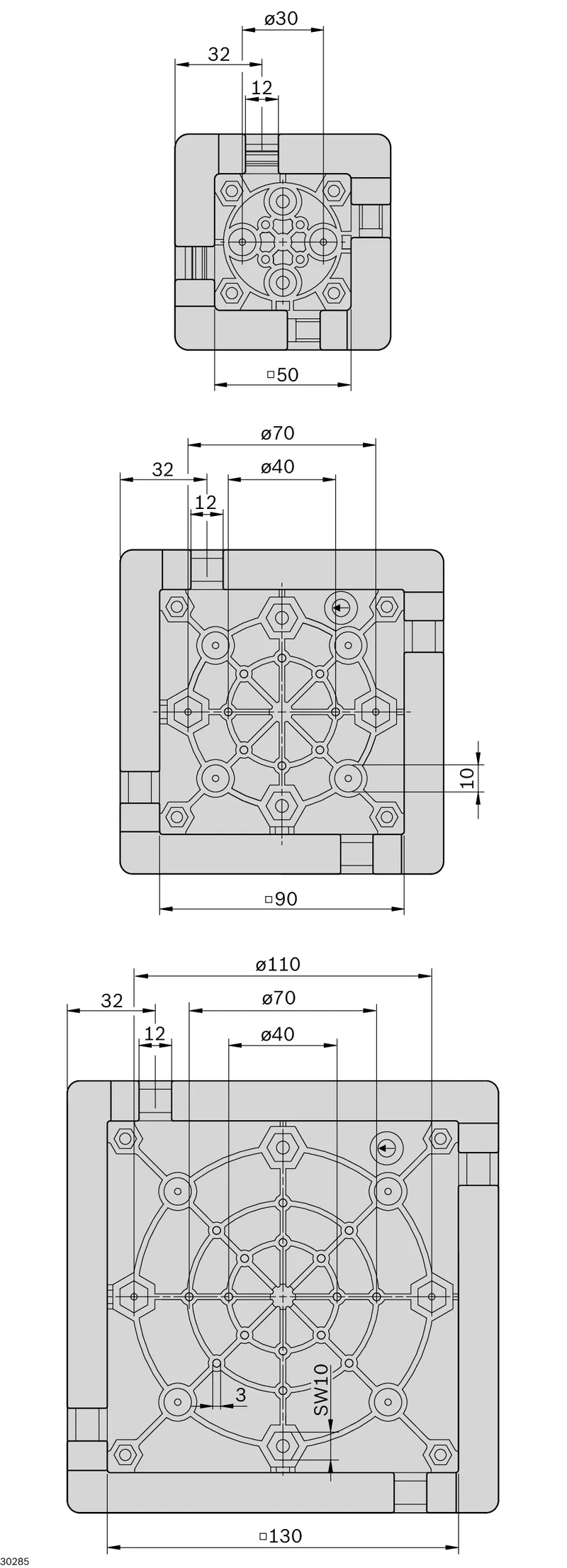

3 standard sizes

Frame made from polyamide, carrying plate made from steel

Double-sided prism slot for positioning in the positioning unit PE 1/P

Mounting and installation options for mobile data tags of the identification systems ID 15, ID 40 and ID 200

Replaceable outer soles

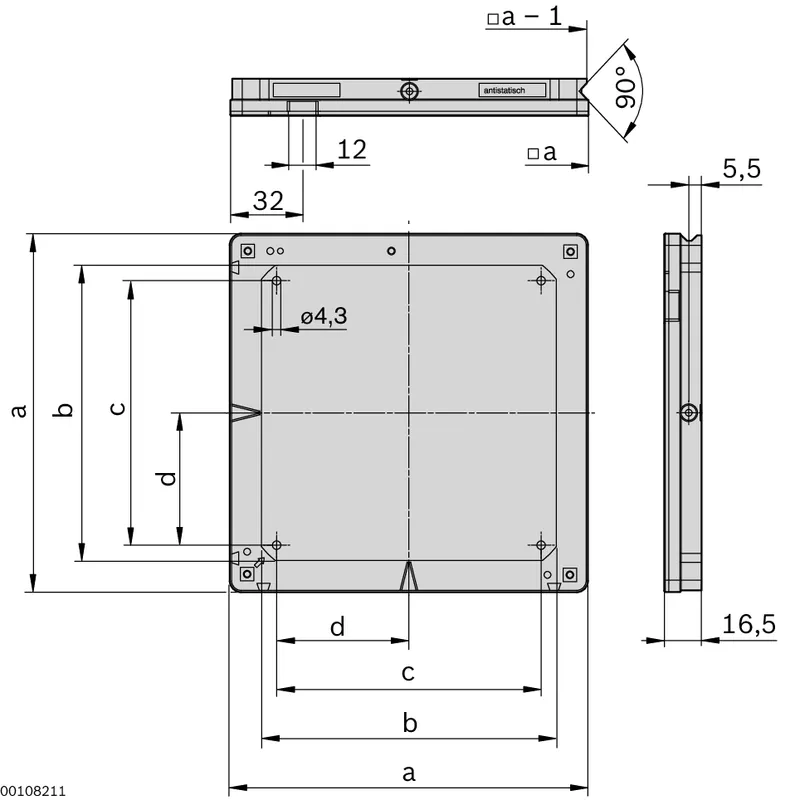

Specifications

ESD	Yes
Dimension [a] [mm]	80
Dry room [%rF]	<1
Dimension [c] [mm]	38
Dimension [d] [mm]	19
Dimension b [mm]	52
Workpiece pallet length [lWT] [mm]	80
Weight workpiece pallet [mWT] [kg]	0.165
Flatness [mm]	0.5
Admissible WT contact area weight [FGL] [kg]	1.5
Scope of delivery	Workpiece pallet, complete
Delivery information	Fully assembled
Material information	Carrying plate: Steel, coated with cataphoretic primer; Frame, wear pad: Polyamide (PA 66)
Workpiece pallet width [bWT] [mm]	80
Clean room classification	ISO class 7
Recommended accessories	Damping Elements; Mobile data tag ID 15/MDT, ID 40/MDT or ID 200/MDT; Switching element
Weight [kg]	0.18
