Bosch Rexroth 3842525999

FRAME MODULE EXTENSION 320 M.BOHRG.

MPN: 3842525999
Category: Reinforced frame module

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842525999?

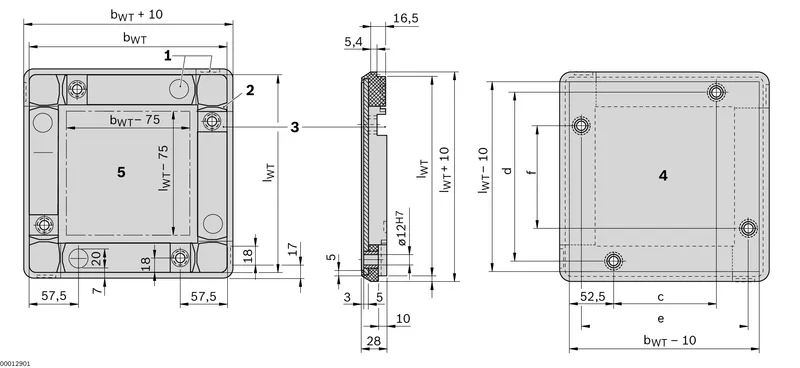

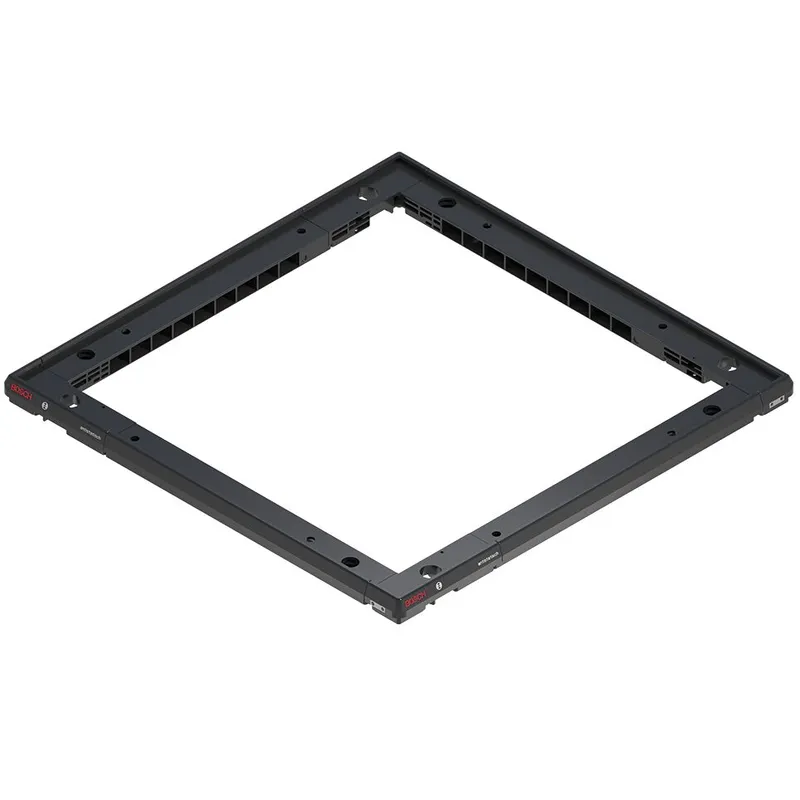

Reinforced frame module, extension module (PA)

For self-assembly of workpiece pallets measuring 400 x 400 mm and above. Necessary for overall weights of workpiece pallets m W > 50 kg and for conveying speeds v N > 12 m/min

400 mm corner module

320 mm frame extension module

Wide variety of workpiece pallet sizes can be achieved by combining standard modules

Material:

– Corner/extension module (PA) with PA (polyamide) wear pad

– Corner/extension module (PA) with PE (= polyethylene) wear pad

Can be combined with WT 2 carrying plates

Specifications

Workpiece pallet total weight [mG] [kg]	100
Length [L]	320.0
Weight [kg]	0.15
