Bosch Rexroth 3842525855

LIFT-ROTATE UNIT HD2 B240*LT160 180 40

MPN: 3842525855
Category: Lift rotary units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

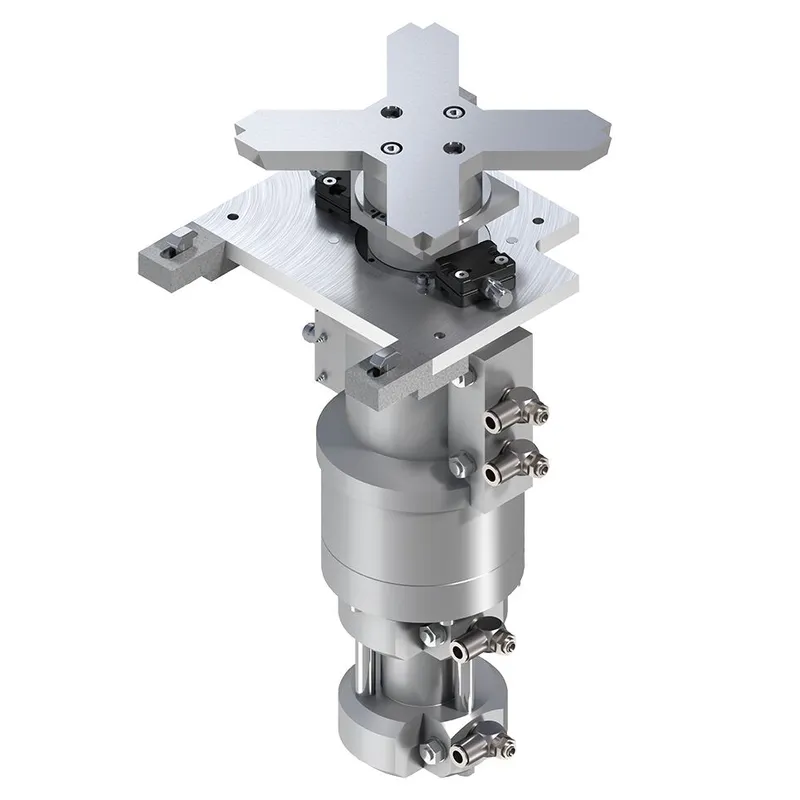

What is the Bosch Rexroth 3842525855?

HD 2, b240, l lift rotate unit T 160, DW180, h40

Turning angles on the Z axis: 90° or 180°. If necessary, the rotational direction of the HD 2/90° can be actuated individually for each workpiece pallet

WT lift 40 mm or 90 mm above transportation level. The version with a 40 mm lift is suitable for turning workpiece pallets directly above the conveyor section. If there are any components mounted at the side of the workpiece pallet, e.g. identification and data storage modules, it may be necessary to select the version with a 90 mm lift

Max. permitted total mass moment of inertia: 0.65 kgm 2

Can be combined with WT 2 and WT 2/LS (only with LS version)

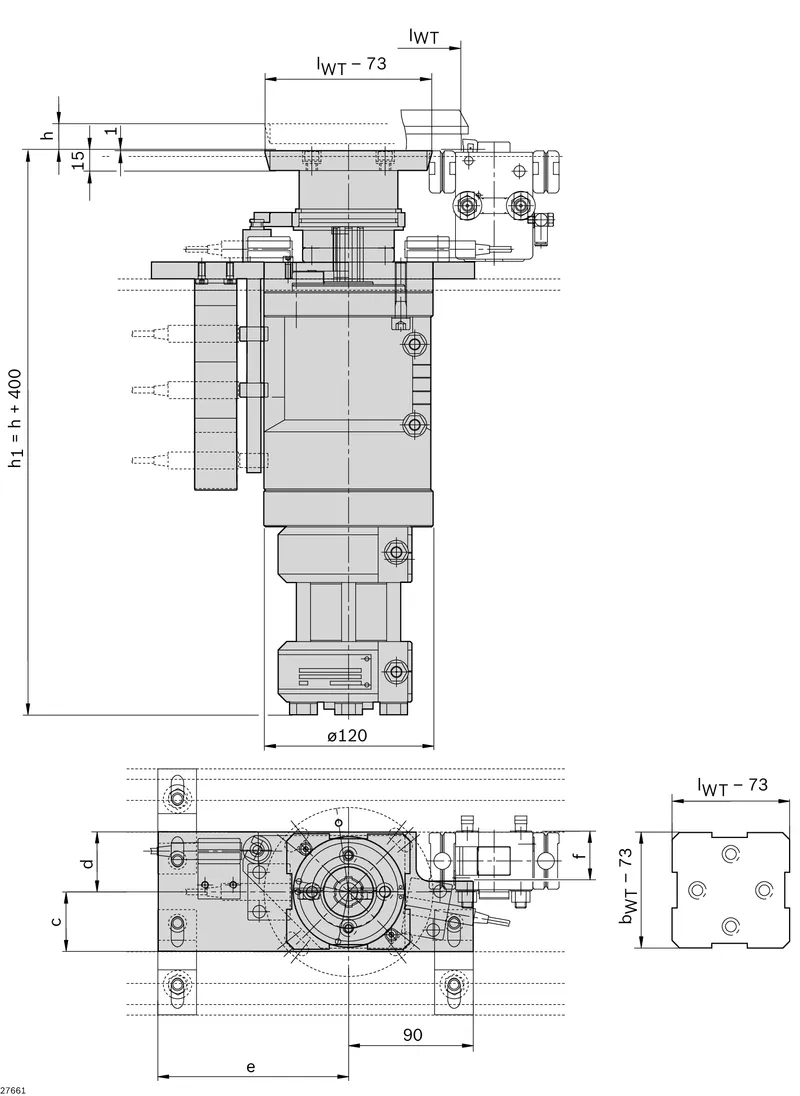

Specifications

ESD	Yes
Dimension [c] [mm]	82
Dimension [d] [mm]	82
Workpiece pallet total weight [mG] [kg]	16
Lift of WT over conveyor medium [h0]	40
Track width in direction of transport [b] [mm]	240
Length in direction of transport [lT] [mm]	160
Scope of delivery	Incl. fastening material
Required accessories	M12x1 Sensor with Rated Sensing Range of S<sub>N</sub>≥ 4 mm, Cannot be Installed Flush, but Rather with 0.5 mm; Stop gate VE 2/...
Weight [kg]	23.8
