ROCKER WI 2/D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Rockers |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842524448 be shipped?
3842524448 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842524448 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842524448 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842524448, subject to availability and destination.

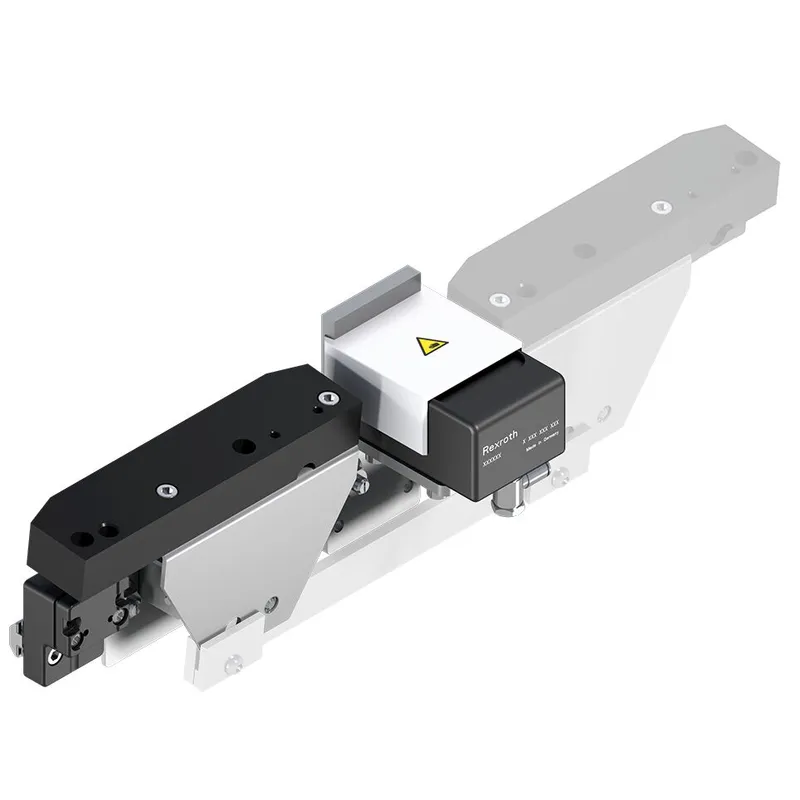

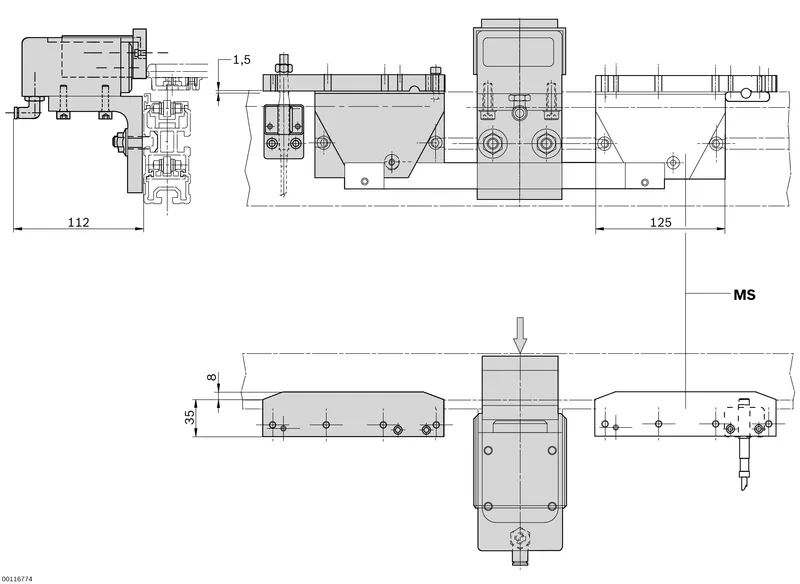

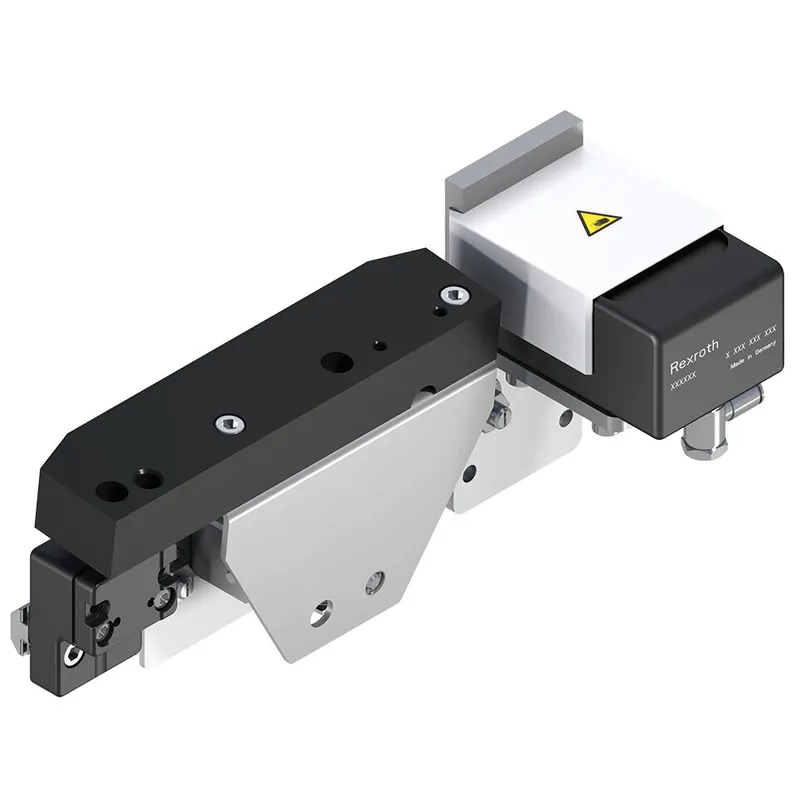

WI 2/D Rocker As a damped stop for workpiece pallets in the transverse conveyor For area monitoring For workpiece pallet recognition For permitted total weight of workpiece pallets > 35 kg Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm Can be combined with WT 2, WT 2/F and WT 2/LS Suitable for use in an EPA
Specifications
Specifications
| ESD | Yes |
| Mass [m] [kg] | 5 |
| Workpiece pallet total weight [mG] [kg] | 100 |
| Monitoring range, min [mm] | 430 |
| Monitoring range, max [mm] | 1230 |
| Scope of delivery | Incl. fastening material; Including DA 2/100 damper |
| Notice | Max. total WT weight applies when infeeding from a transverse section into a main section; for area monitoring, only the max. system weight of 240 kg cannot be exceeded; Min. WT weight applies per rocker body |
| Required accessories | Sensor M12 circular with rated switching distance S<sub>N</sub> = 4 mm at vertical installation; Sensor M12 circular with rated switching distance S<sub>N</sub> = 8 mm at horizontal installation |
| Recommended accessories | Additional MS rocker extension with second rocker and connecting strip for installation of a rocker positioned between the start and end of the conveyor section from a monitoring range of 400 mm. |
| Weight [kg] | 0.78 |
