Bosch Rexroth

Bosch Rexroth 3842523094

BUTT CONNECTOR 45 PN

MPN: 3842523094
Category: Longitudinal end connector 45 Pneu

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842523094?

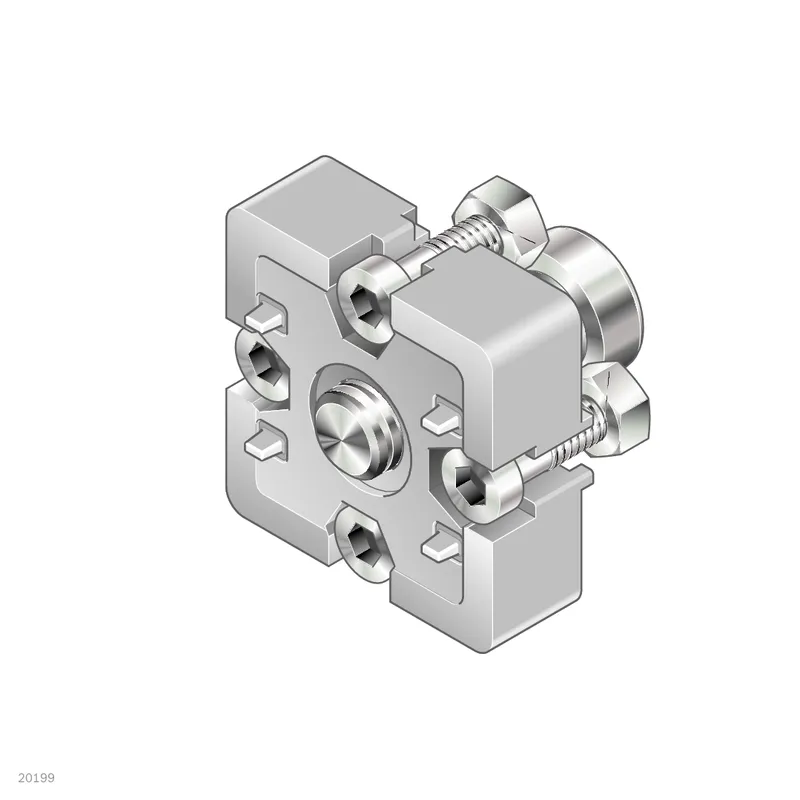

Longitudinal end connector 45 Pneu

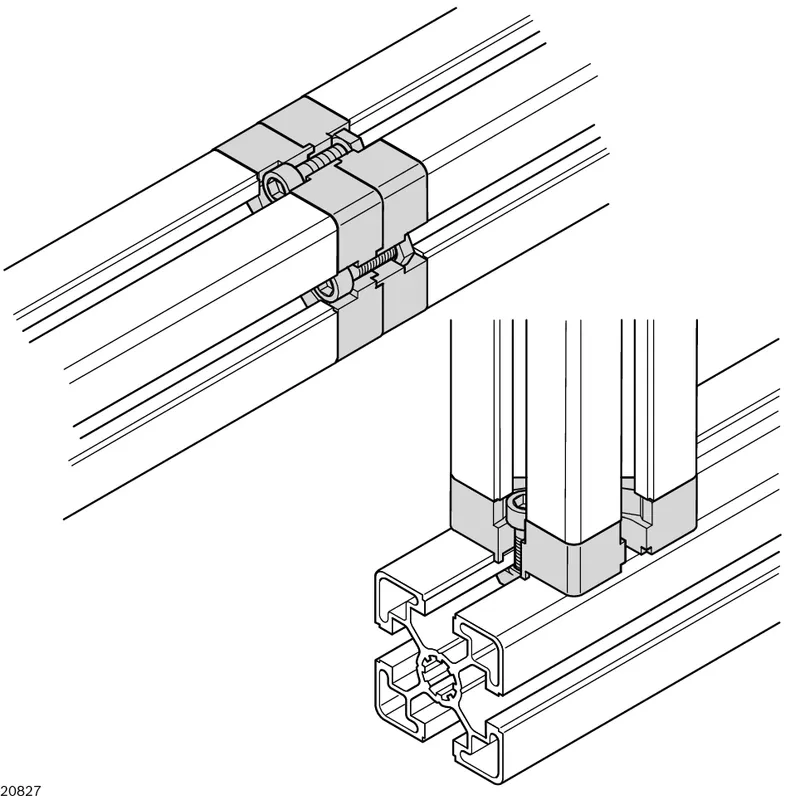

Longitudinal end connector 45 Pneu for end face mechanical and pneumatic connections of two 45x45 or 45x45L profiles for using the central hole as a compressed-air lead

T-connector 45 Pneu for the mechanical and pneumatic connection of two 45x45 or 45x45L profiles at under a 90° angle for using the central hole as a compressed-air lead

For a maximum pressure (p max max) of 8 bar

Specifications

Profile slot	10
Packaging unit	1
Scope of delivery	Incl. fastening material, sealing rings
Material information	Longitudinal end connector: Diecast aluminum; Seal: NBR
Material	Diecast aluminum

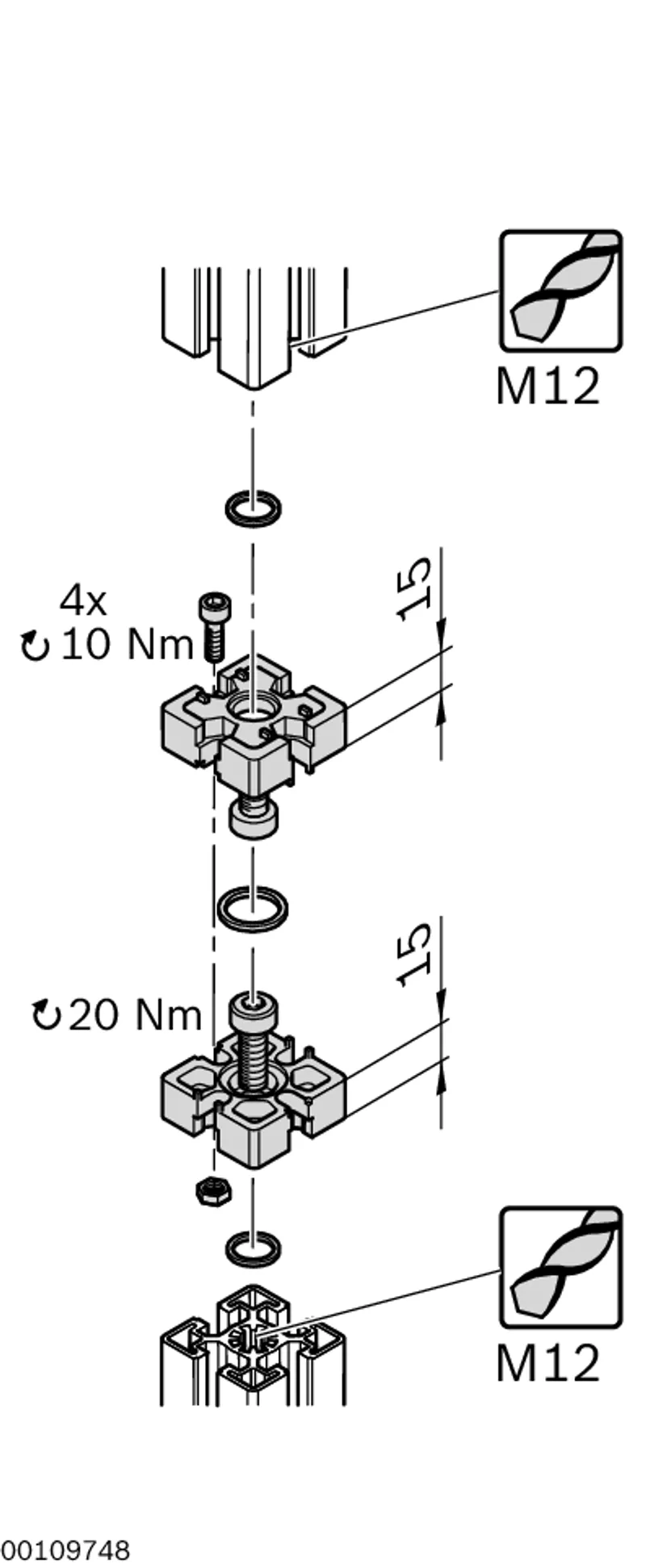

Fastening material	2x screw M12x30; 4x cylinder head screw ISO4762-M6x20; 4x hexagon nut ISO4032-M6
Weight [kg]	0.21
