STOP GATE VE 1/V

MPN: 3842522399
Category: Pneumatic stop gate TS 1

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842522399?

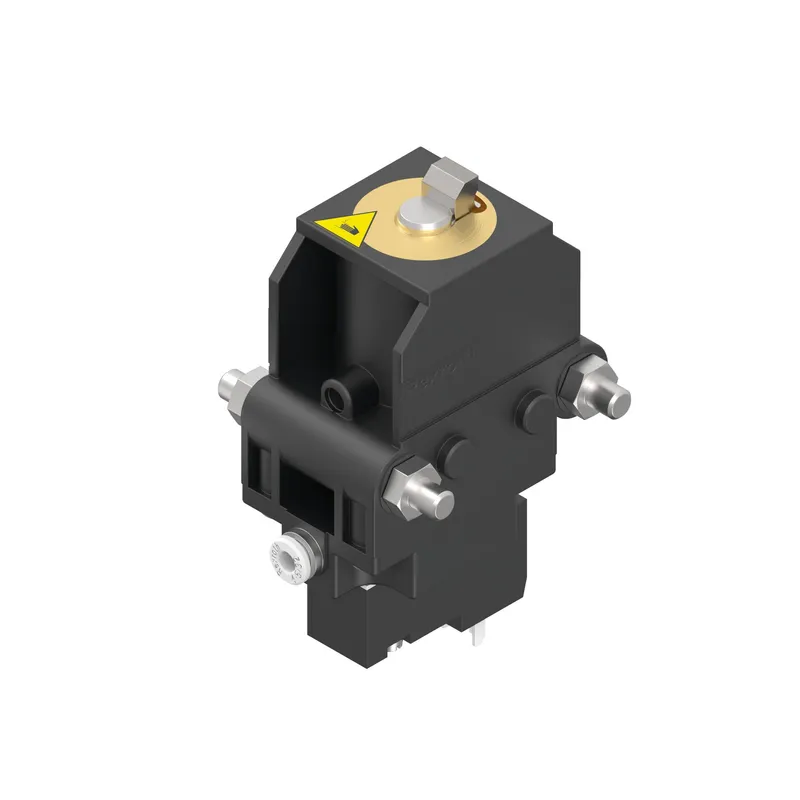

Stop Gate VE 1/V

Pneumatic stop gate. When the pressure is released the stop gate is closed by a spring and the workpiece pallet is stopped.

Integrated solenoid valve enables short response times

Tilting stop gate; can be opened without causing abrasion on the workpiece pallet stop surface.

Permissible total load of all workpiece pallets in the accumulation: 80 kg (with conveying speed 9 m/min)

Specifications

Dry room [%rF]	<1
Workpiece pallet total weight [mG] [kg]	80; 40; 60

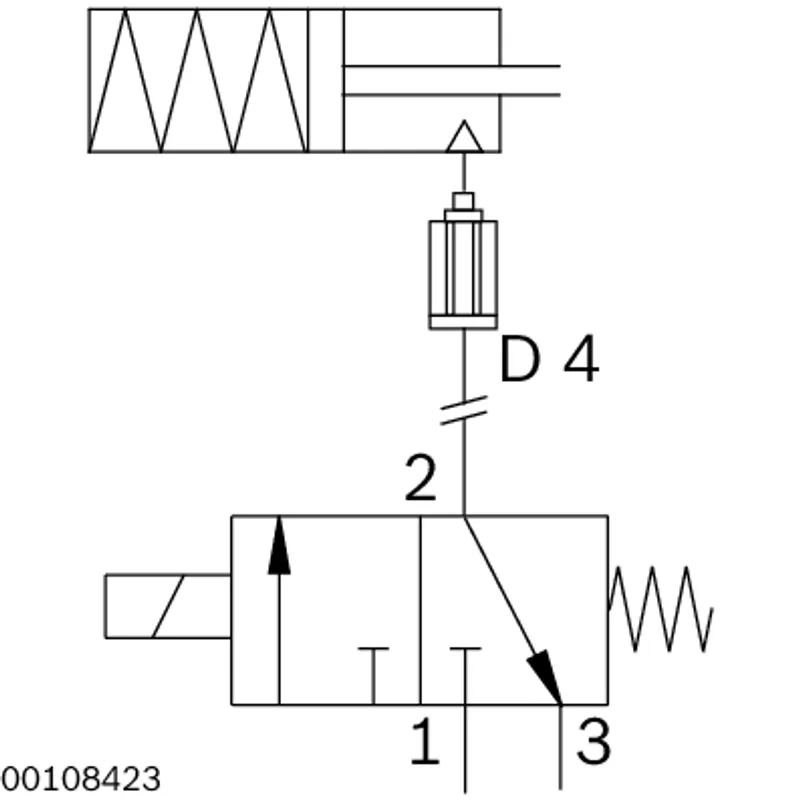

Scope of delivery	3/2-way valve, electrically activated; Incl. fastening material for assembly on conveyor section; Pneumatic connection (pushlock type, ∅ 4 mm)
Delivery information	Fully assembled
Clean room classification	ISO class 7
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Section load in accumulation operation [kg]	80
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Pneumatic straight connection [Ø] [mm]	4
Recommended accessories	Switch Bracket
Weight [kg]	0.4
