ROPE HOIST COUNTERBALANCE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Counterbalance for lifting doors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842518798 be shipped?
3842518798 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842518798 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842518798 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842518798, subject to availability and destination.

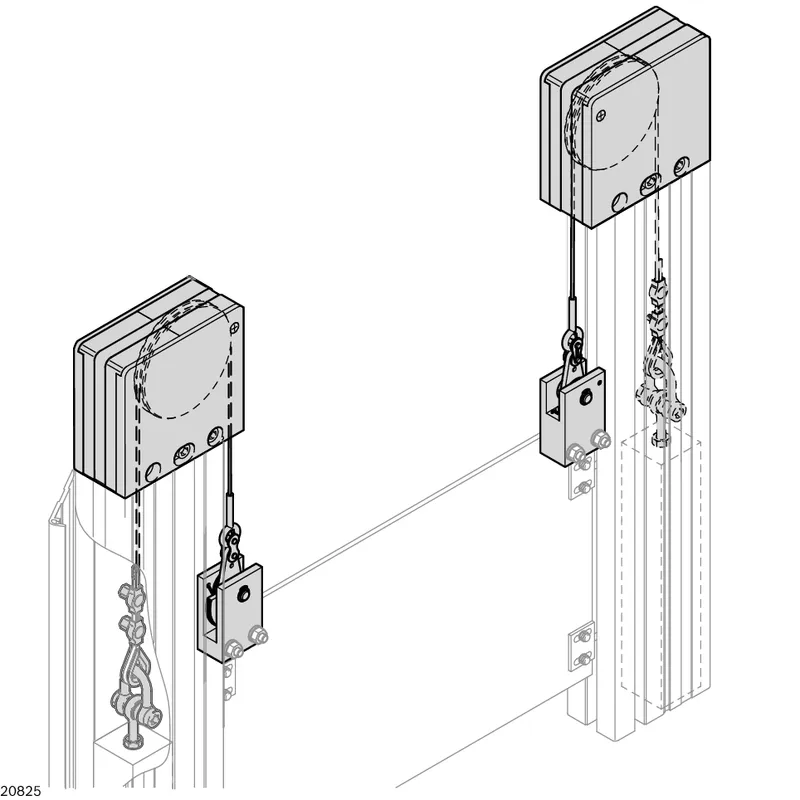

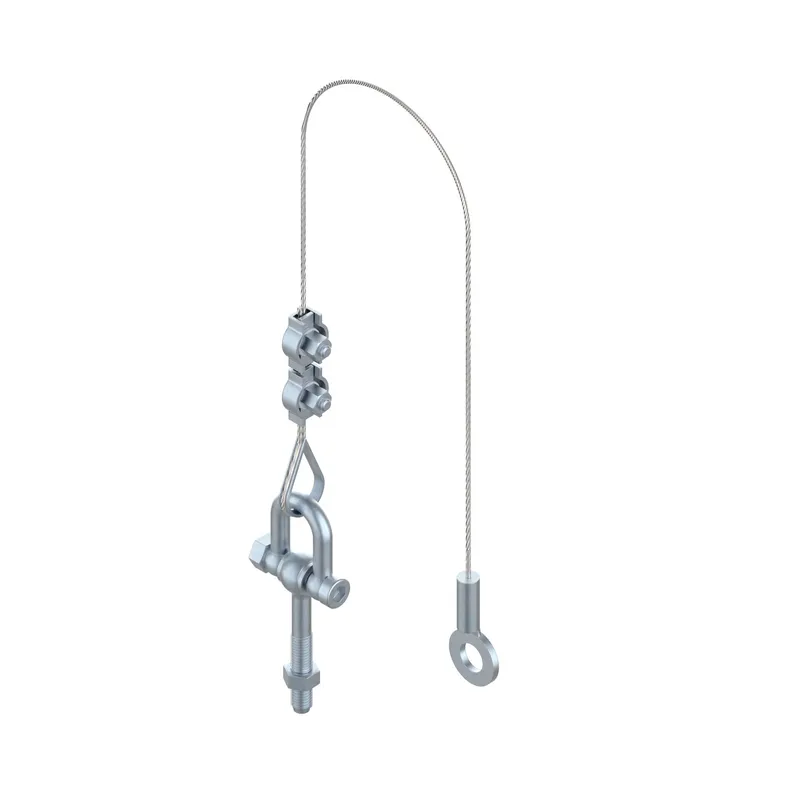

Counterbalance control cable For lifting doors comprising a deflection pulley and control cable Counterweight individually adjustable and preferably guided in a cable duct Length of cable can be adjusted Service life: 50,000 actuations Fit lifting doors with a back-up fall arrestor in accordance with the Machinery Directive 2006/42/EC

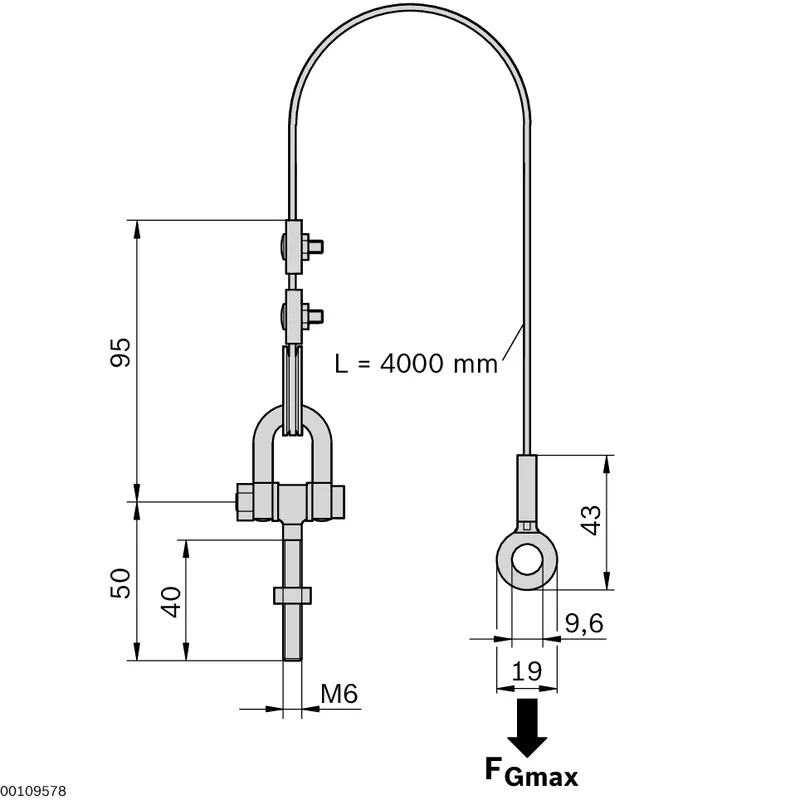

Specifications
Specifications
| Profile slot | 10 |
| Packaging unit | 1 |
| Weight [FGmax] [N] | 250 |
| Material | Steel, stainless |
| Required accessories | Counterbalance weight (square profile 35x35 mm) |
| Recommended accessories | Cable duct 45x45 (3842549896); Safety catch (3842546519); Slider (3842564170) |
| Weight [kg] | 0.15 |
