Bosch Rexroth 3842513576
STRUT PROFILE 15X22,5 10X2000MM
- MPN
- 3842513576
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842513576?

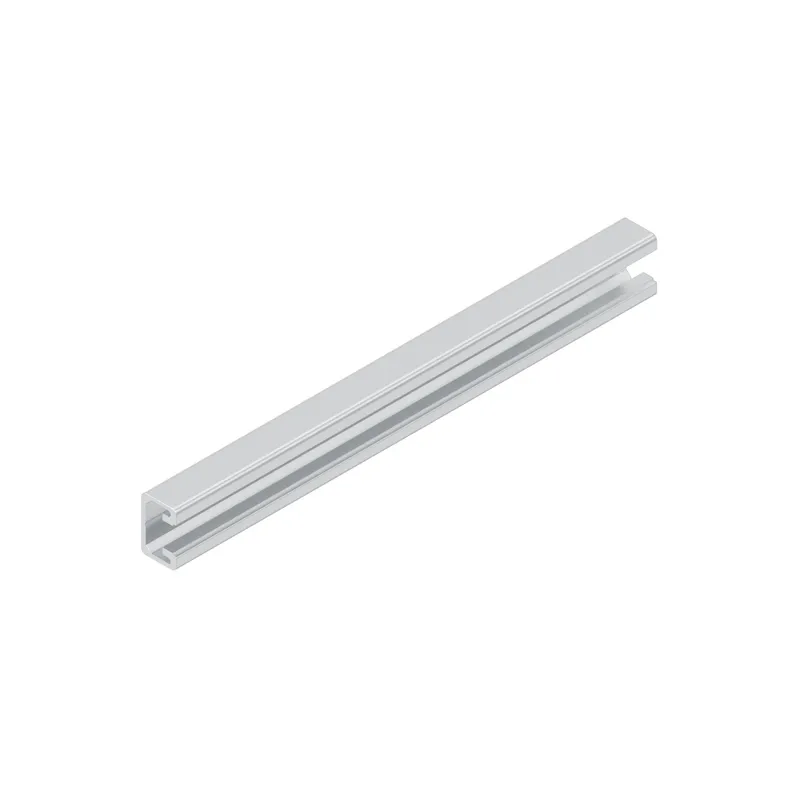

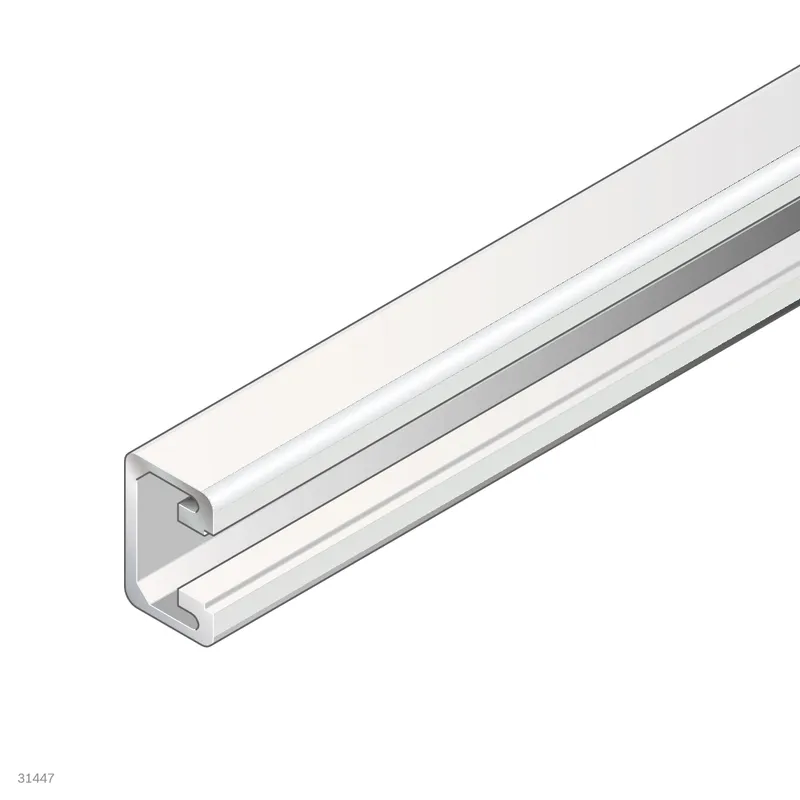

Strut profile 15x22.5, 10xL=2000mm

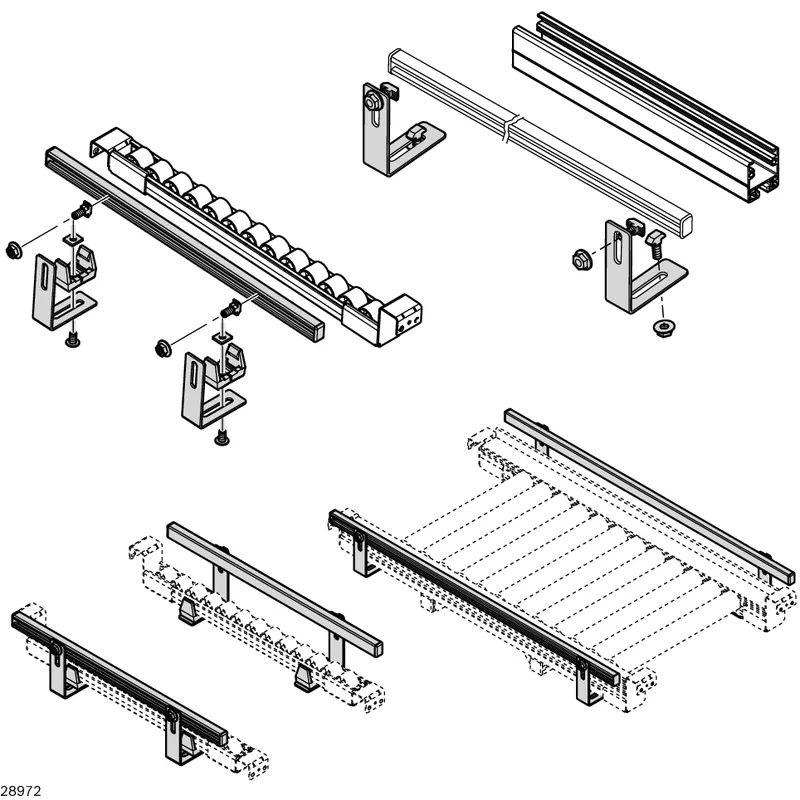

For retrofitting a lateral guide to the XLean, Lean and EcoFlow conveyor tracks

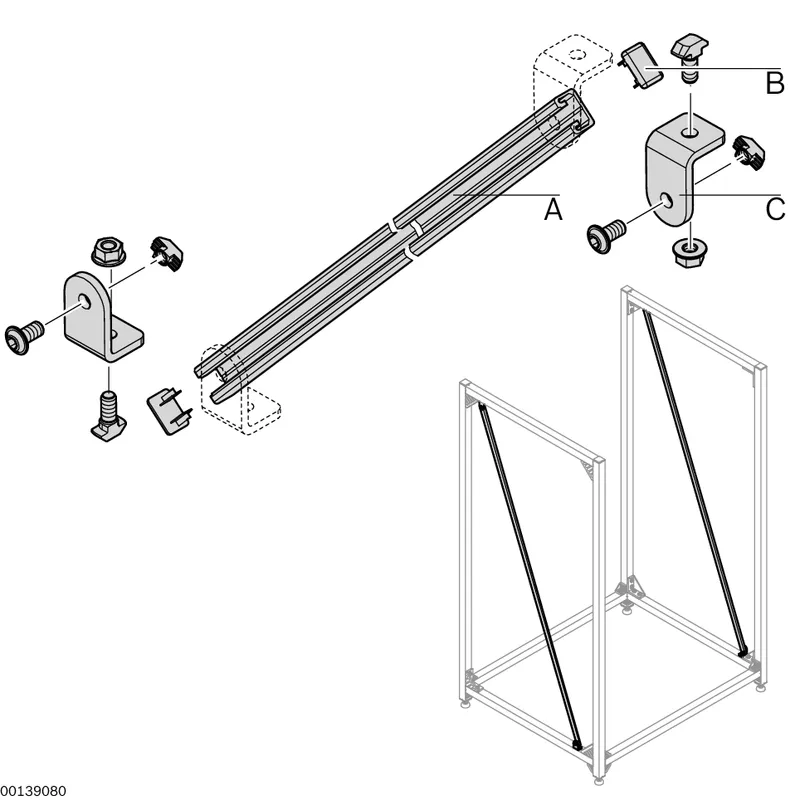

For constructing flow racks with increased stability
Rack loading up to 2000 kg
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |

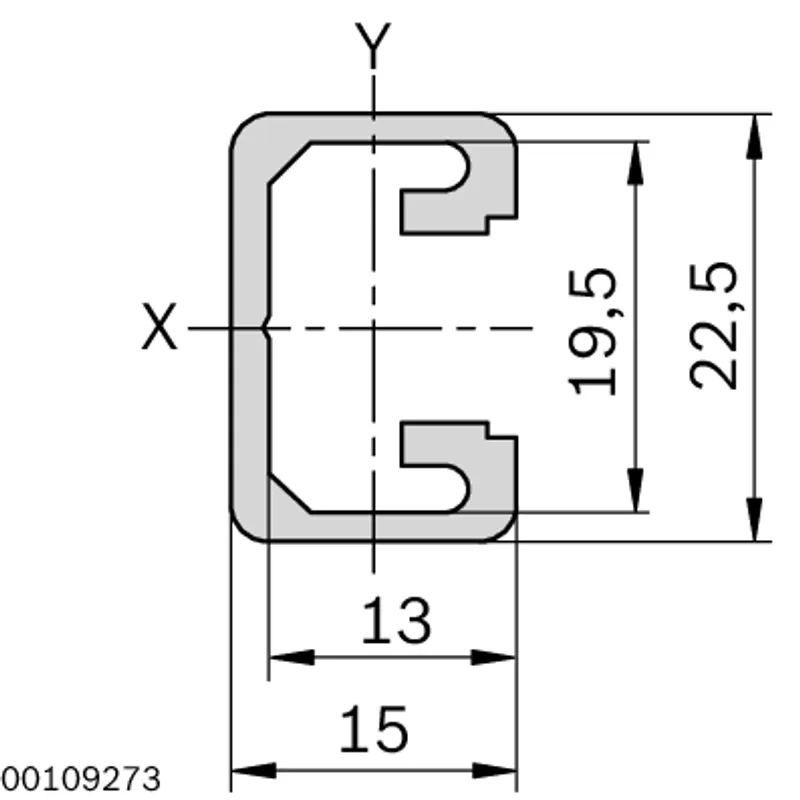

| Cross-section | 15x22,5 |
| Modular dimension [mm] | 45 |
| Profile slot | 10 |
| ESD | Yes |
| Dimensions | 15x22,5 |
| Open slots | 1.0 |
| Profile type | Standard |
| Color | Natural |
| Delivery unit | 10 |

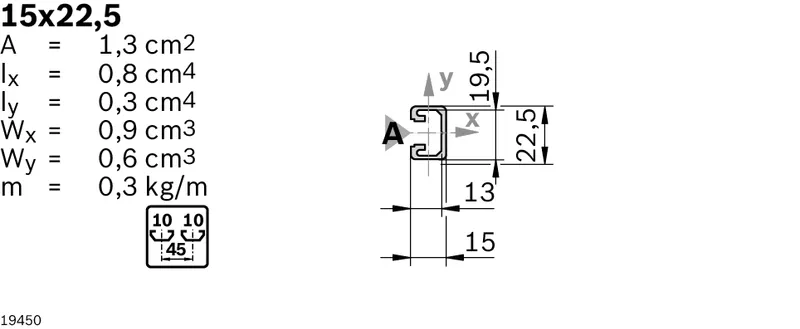

| Moment of resistance in the x-direction [Wx] [cm³] | 0.9 |
| Moment of resistance in the y-direction [Wy] [cm³] | 0.6 |
| Length [L] | 2000.0 |
| Material | Aluminum, anodized |
| Mass [m] [kg] | 0.3 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 0.8 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 0.3 |
| Profile surface [A] [cm²] | 1.3 |
| Recommended accessories | Cover cap 15x22.5, black; Cover cap 15x22.5, signal gray |
| Weight [kg] | 9 |
