Bosch Rexroth 3842508104
ALUMINUM ANGLE PROFILE 45X45 20X5600MM
- MPN
- 3842508104
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842508104?

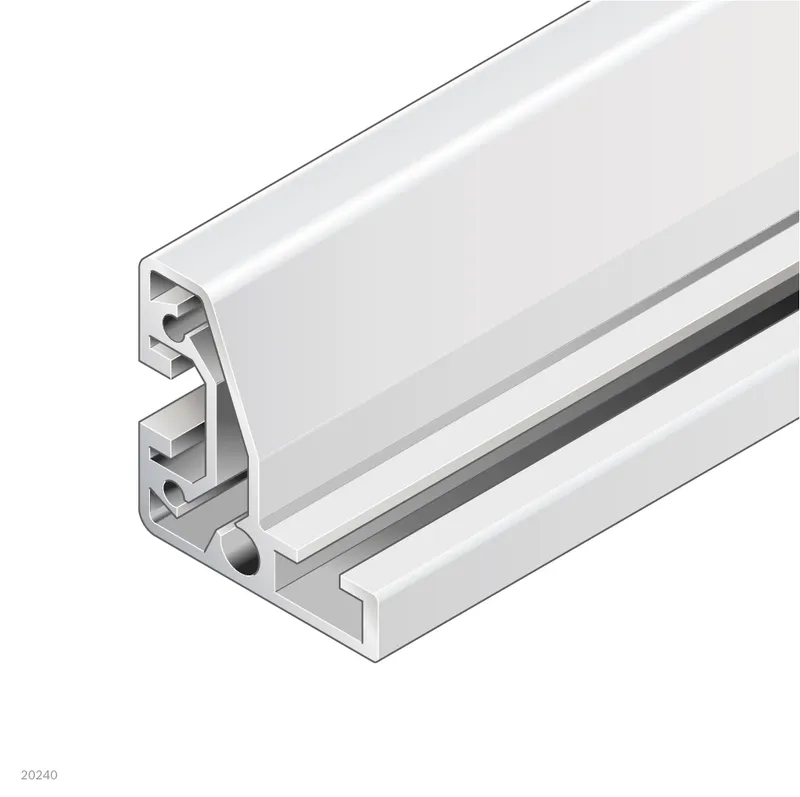

Angle profile; L5600

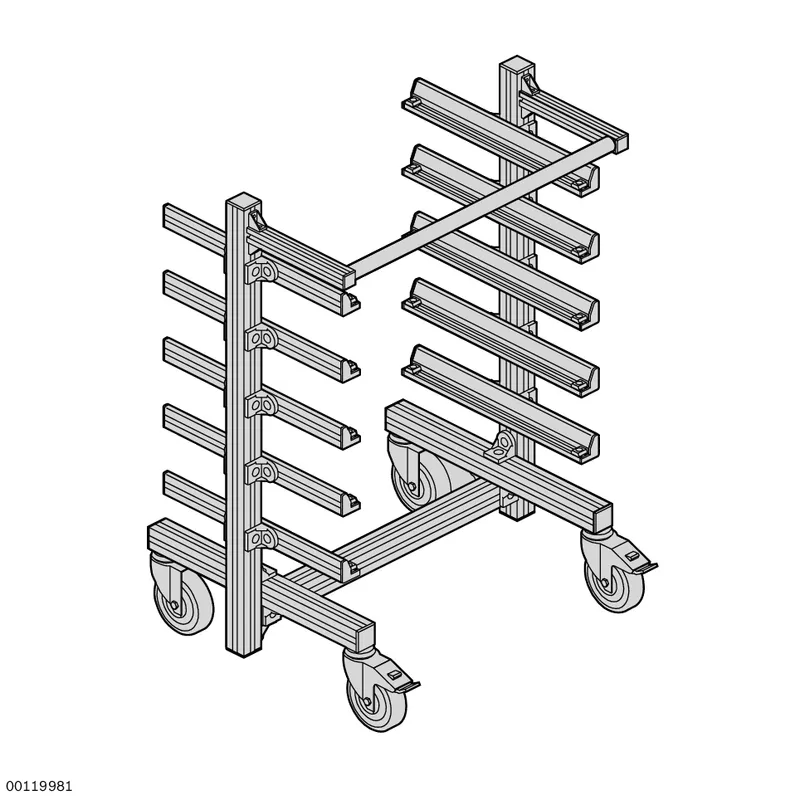

To hold workpiece pallets and containers, including small parts containers
For supporting containers, plates, or workpiece pallets in flow racks, material shuttles, or hopper stackers
Anodized aluminum
Stopper and cover cap
The stopper prevents containers from shifting on the angle profile
Cover cap to prevent injuries at open profile ends
Attractive design
Specifications
Specifications
| Condition on delivery | Packaging unit in standard length |
| Profile slot | 8, 10 |
| ESD | Yes |
| Delivery unit | 20 |
| Mass [m] [kg] | 1.2 |

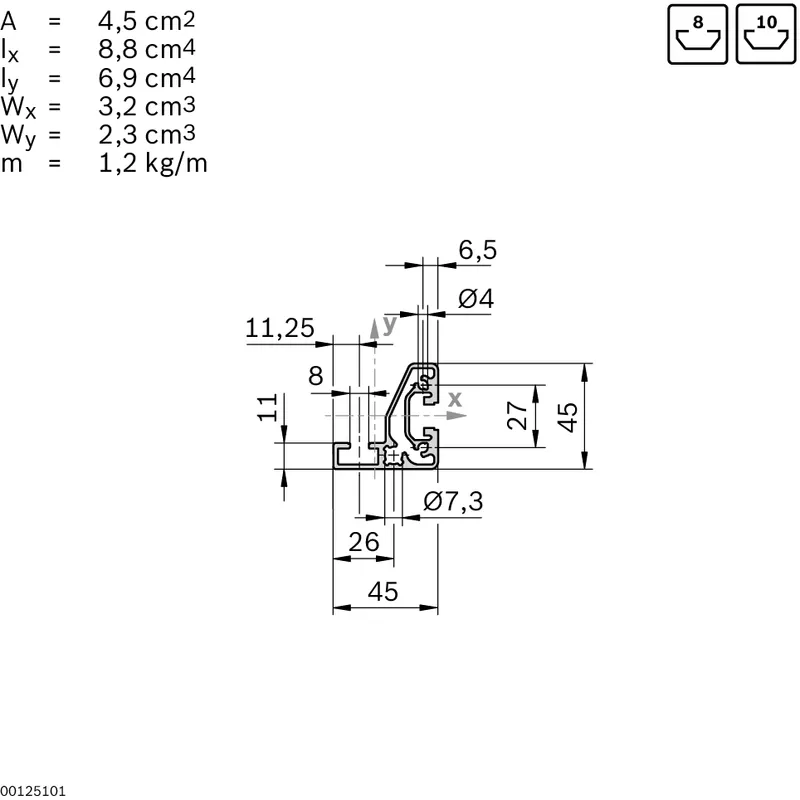

| Area moment of inertia in x-direction [lx] [cm⁴] | 8.8 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 6.9 |
| Profile surface [A] [cm²] | 4.5 |
| Moment of resistance in the x-direction [Wx] [cm³] | 3.2 |
| Moment of resistance in the y-direction [Wy] [cm³] | 2.3 |
| Length [L] | 5600.0 |
| Material | Aluminum, anodized |
| Recommended accessories | Bracket R40x43 |
| Weight [kg] | 150 |
