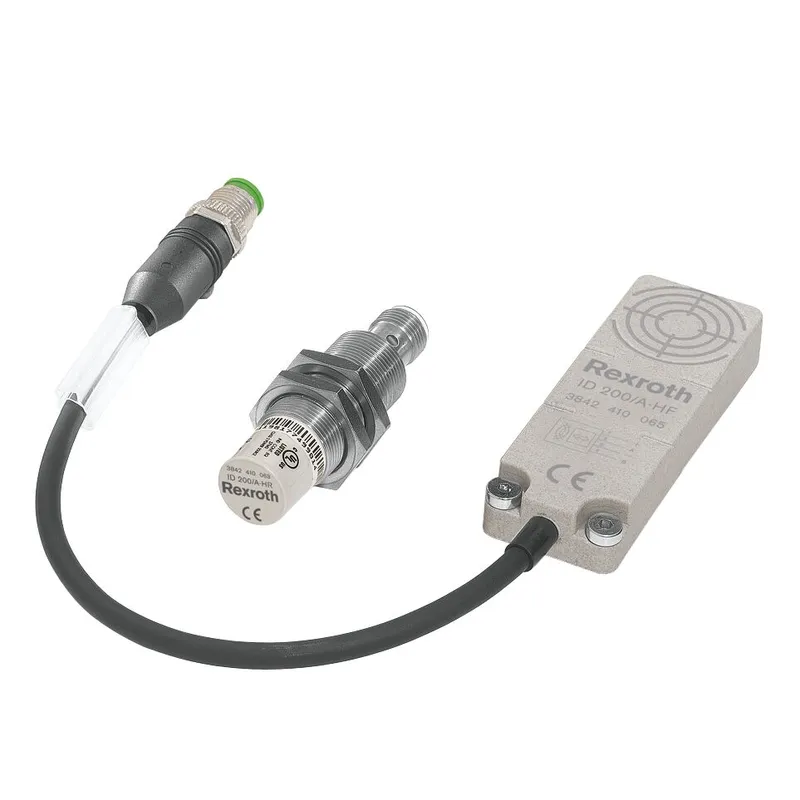

Bosch Rexroth 3842410177
ANTENNA ID 200/A-LR
- MPN
- 3842410177
- Category
- Antennas ID 200
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842410177?
Antenna ID 200/A-LR
Antenna ID 200/A-...F (Flat Antenna)

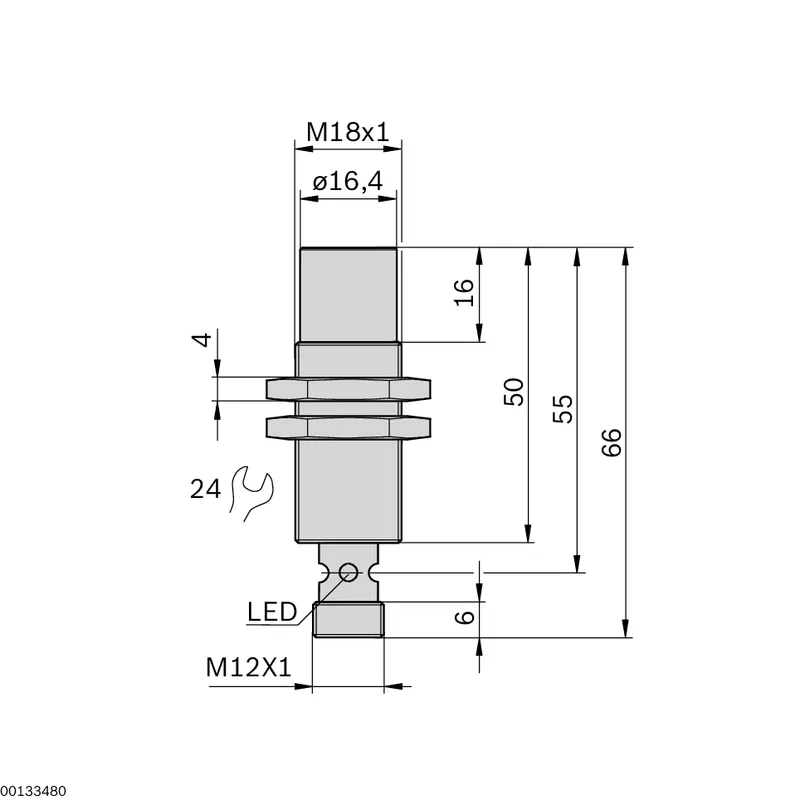

Antenna ID 200/A-...R (Round Antenna)
Specifications
Specifications
| Mass [m] [kg] | 0.1 |
| Protection class | IP67 |
| Ambient temperature [T] | -25 … +70 °C |
| Operating voltage DC [V] | 24 |
| Transmission frequency | 125 |
| Storage temperature [T] | -40 … +85 °C |
| Status indicator 01 | LED orange/green |
| Shock and impact resistance (EN 60068-2-29) | 30 g/11 ms 18 cycles |
| Write/read distance, static [mm] | 15 |
| Write/read distance, dynamic [mm] | 12 |
| Min. distance between 2 antennas multiplex [mm] | 30 |
| Min. distance between 2 antennas simultaneously [mm] | 180 |
| Dynamic data transfer | No |
| Humidity | max. 96% |
| Notice | Operating voltage from communication module; Write/read distance dynamic at v = 20 m/min |
| Material | PBT/stainless steel |
| Required accessories | Assembly kits |
| Weight [kg] | 0.1 |
