Bosch Rexroth 3842191721

SLIDE STOP VA 2/50

MPN
3842191721
Category
Slide stops
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

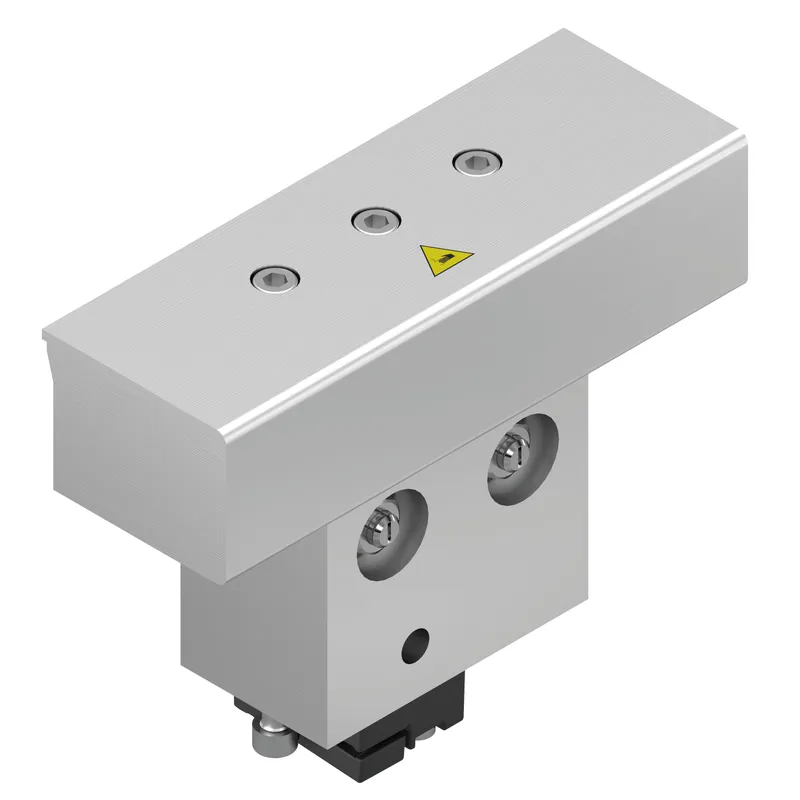

What is the Bosch Rexroth 3842191721?

Slide stop, can be extended pneumatically

Slide stop, can be raised pneumatically

Integrated switch bracket

Reversible operation possible

Not suitable for ST 2...-H sections

Sensing of the slide stop upper position via sensors

Can be combined with WT 2 and WT 2/F

The slide stop is used in a transverse section that connects more than two longitudinal sections and that requires supplementary stops

A lift transverse unit can feed in the workpiece pallet onto the longitudinal section when the slide stop is activated

When depressurized, the pneumatically extended slide stop is lowered to the lower end position

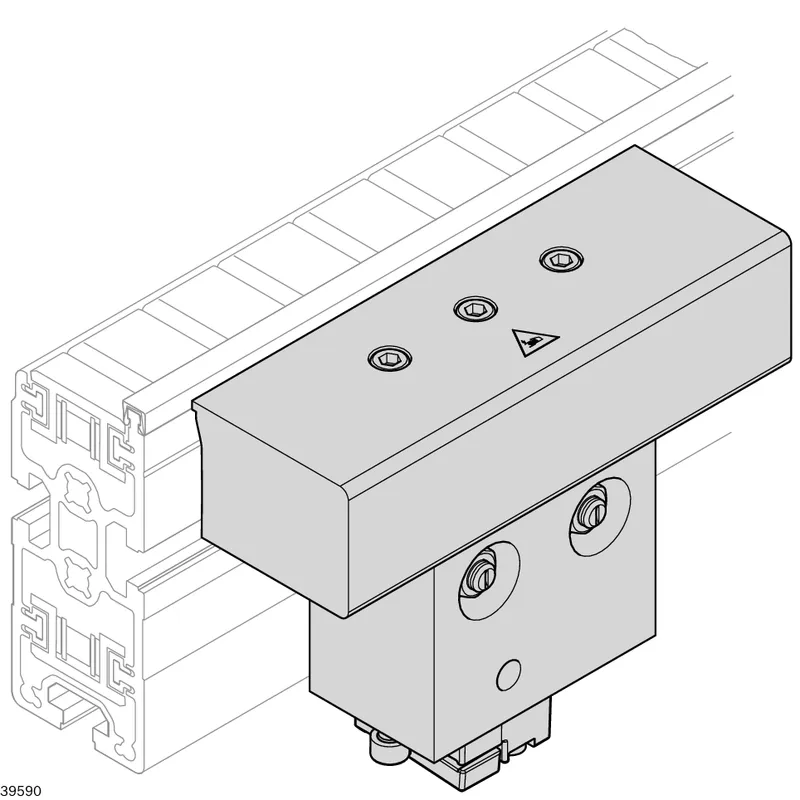

Mounted inside the tracks, directly on the conveyor section

Specifications

Specifications

ESDYes
required compressed air connection [pmax] [bar]6
required compressed air connection [pmin] [bar]4
Operating temperature [T] max+60 °C
Workpiece pallet total weight [mG] [kg]50
Pneumatic straight connection [Ø] [mm]6
Scope of deliveryBracket pivoting screw fitting; Incl. all fastening material to mount on ST 2/... conveyor section
NoticeHigh-temperature stop gate on request
Material informationHousing: Aluminum; Stop: Aluminum

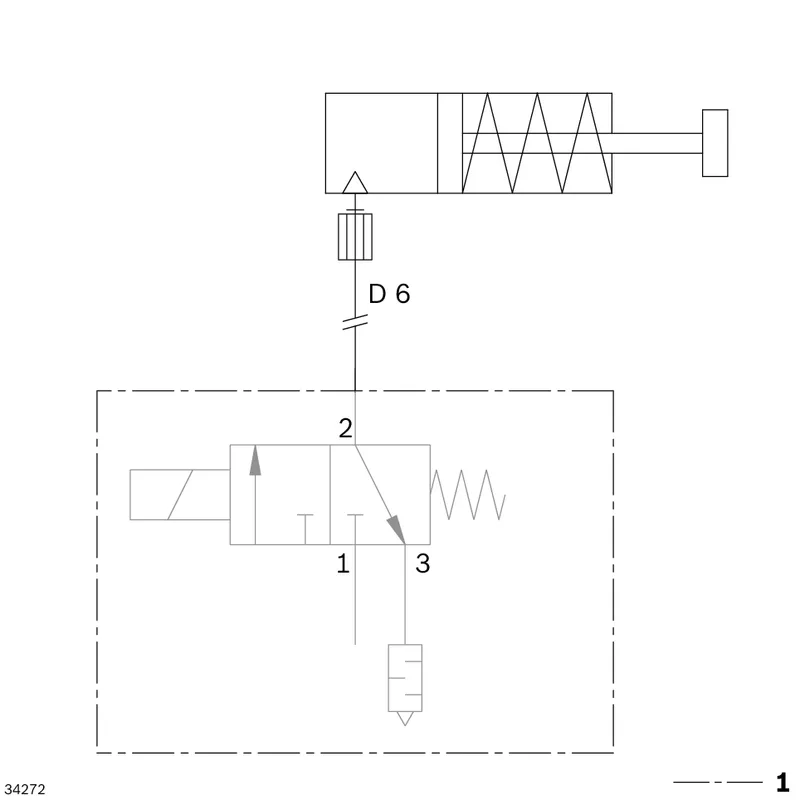

Pneumatic circuit diagram1 Not included in the scope of delivery
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min50 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min35 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 15 m/min25 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min20 kg
Recommended accessoriesSensor M12x1
Weight [kg]1.61
