Bosch Rexroth 0842090041

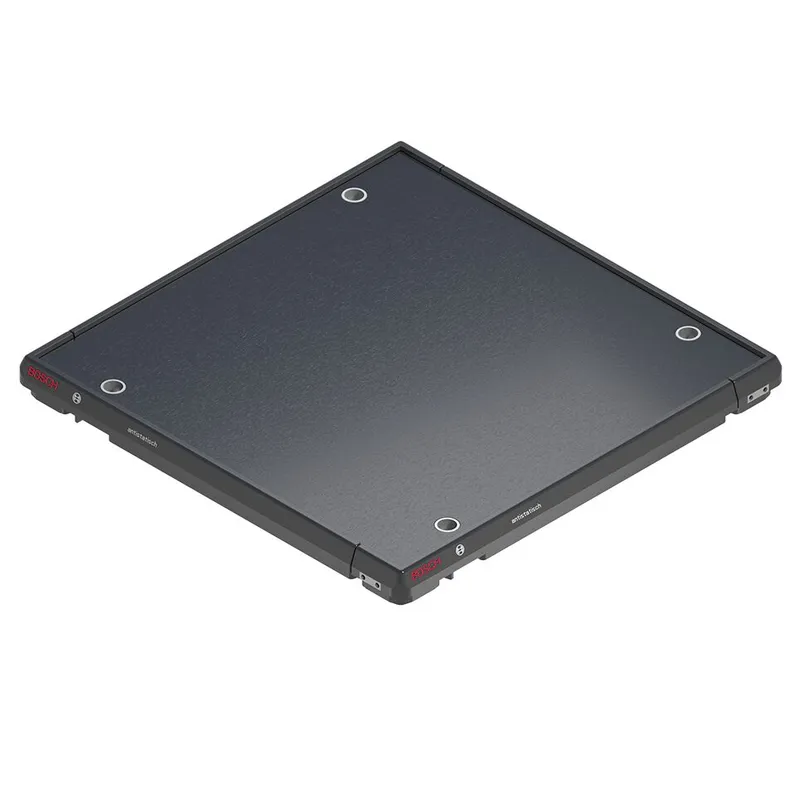

WORKPIECE PALLET LWT320 BWT240

MPN: 0842090041
Category: Workpiece pallet WT 2

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 0842090041?

WT 2 workpiece pallet, fully assembled 240x320

Suitable for belt, toothed belt and flat top chain

Robust workpiece pallet with high rigidity

Integrated positioning bushings

Prepared for installation of mobile data tags of the ID 15 ID 40 and ID 200 identification systems

Not suitable for accumulation roller chains

Plastic frame modules with universal steel carrying plate

15 standard sizes

Material:

- Frame module polyamide (PA) wear pad

- Steel carrying plate (4.8 mm)

Specifications

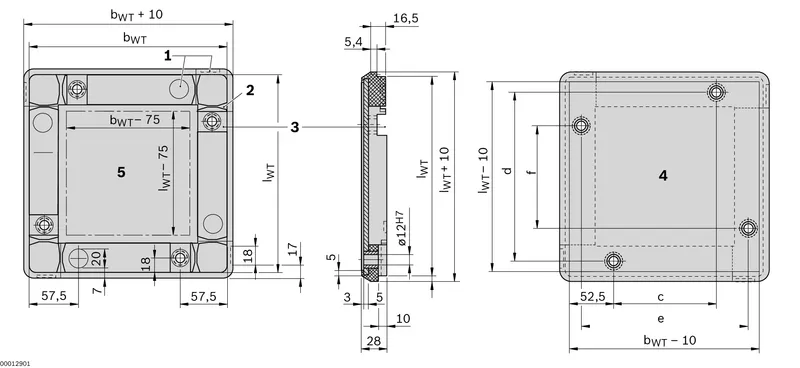

Dimension [c] [mm]	125
Dimension [d] [mm]	284
Plate thickness [dPL] [mm]	4.8
Workpiece pallet total weight [mG] [kg]	100
Workpiece pallet length [lWT] [mm]	320
Weight workpiece pallet [mWT] [kg]	3.3
Plate weight [mPL] [kg]	2.7
Flatness [mm]	0.5
Scope of delivery	Carrying plate; Connection elements; Frame modules; Positioning bushings
Delivery information	Fully assembled
Material information	Frame module with polyamide (PA) wear pad; Steel carrying plate (4.8 mm)
Workpiece pallet width [bWT] [mm]	240
Weight [kg]	3.3
