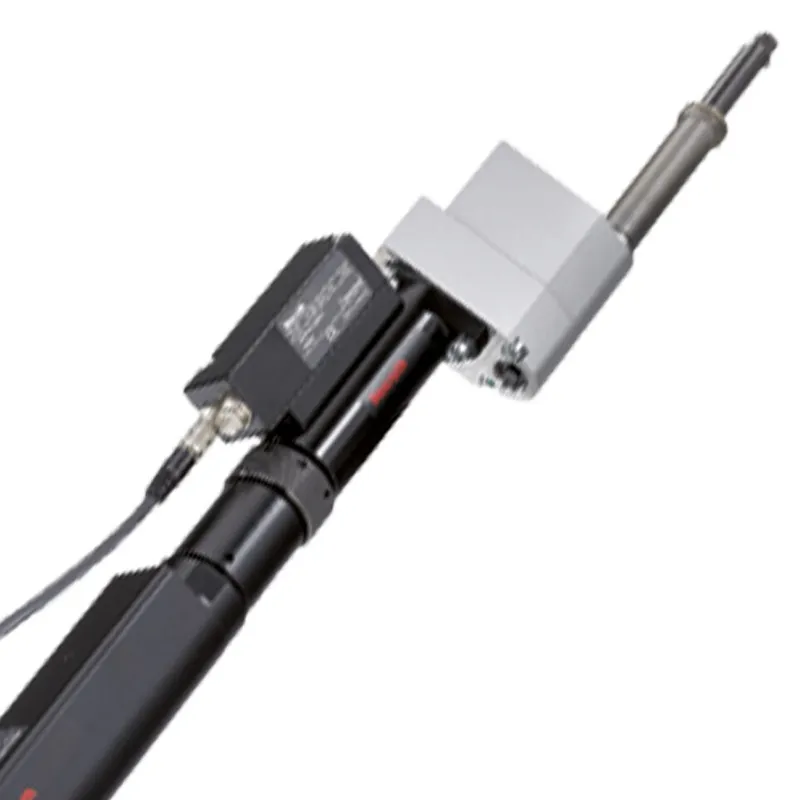

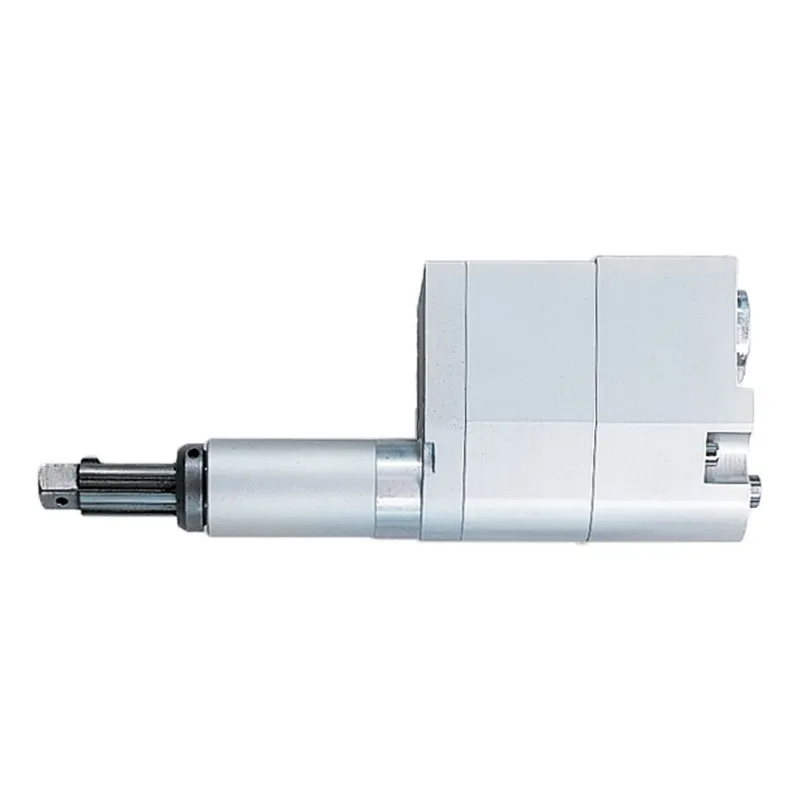

Bosch Rexroth 0608PE0588
REDUCTION GEAR VUK2D242
- MPN
- 0608PE0588
- Category
- Offset output drive
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 0608PE0588?
Working range 6-340 Nm
Max. output drive speed: 1000 rpm
For narrow hole patterns, good side-by-side arrangement with low screw distances
Standard tool mounts
Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 4 |
| Working range (max.) [Nm] | 200.0 |
| Working range (min) [Nm] | 20.0 |
| Maximum drive speed (1/min) [min⁻¹] | 240.0 |
| Tool mount | 3/4" square |
| Weight [kg] | 5.8; 5.8 |
| Typical efficiency | 0.92 |
| Maximum torque [Nm] | 200.0 |
| Length A | 242 |
| Installation length | 370.0 |
| Spring force (max) | 93.0 |
| Spring force (min) | 30.0 |
| Reduction ratio | 1.46 |
| Spring travel | 50.0 |
| Order number | 0608PE0588 |
| Code | VUK2D242 |
No matching specifications
0608PE0588: frequently asked questions
When can 0608PE0588 be shipped?
0608PE0588 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608PE0588 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608PE0588 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608PE0588, subject to availability and destination.
