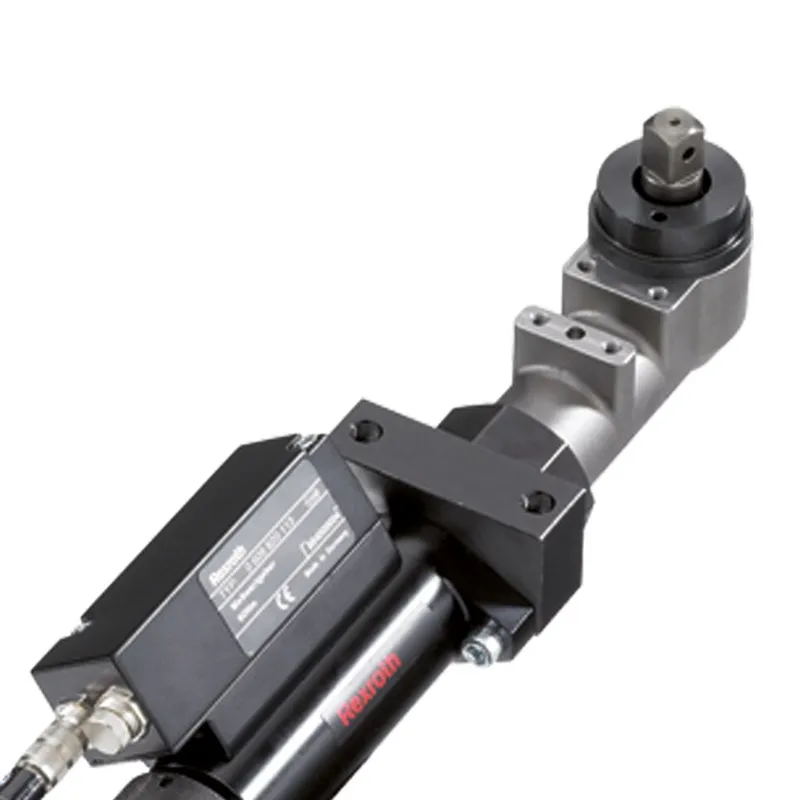

ANGLE HEAD 3W050 SZ3 3/8SQ
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Angle head tightening spindle output drives |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 0608810043 be shipped?
0608810043 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608810043 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608810043 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608810043, subject to availability and destination.
Working range 5.4-90 Nm Max. output speed: 705 1/min For restricted accessibility Precision interlocking for high torque accuracy Positionable in increments (9° increments) Integrated positioning bushings Also comes with integrated measurement transducer on request
Specifications
Specifications
| Nominal size [mm] | 3 |
| Working range (max.) [Nm] | 50.0 |
| Working range (min) [Nm] | 10.0 |
| Maximum drive speed (1/min) [min⁻¹] | 280.0 |
| Tool mount | 3/8" square |
| Weight [kg] | 1.4; 1.77 |
| Typical efficiency | 0.95 |
| Maximum torque [Nm] | 50.0 |
| Installation length | 125.6 |
| Reduction ratio | 1.05 |
| Order number | 0608810043 |
| Code | 3W050 |
