Bosch Rexroth 0608800548

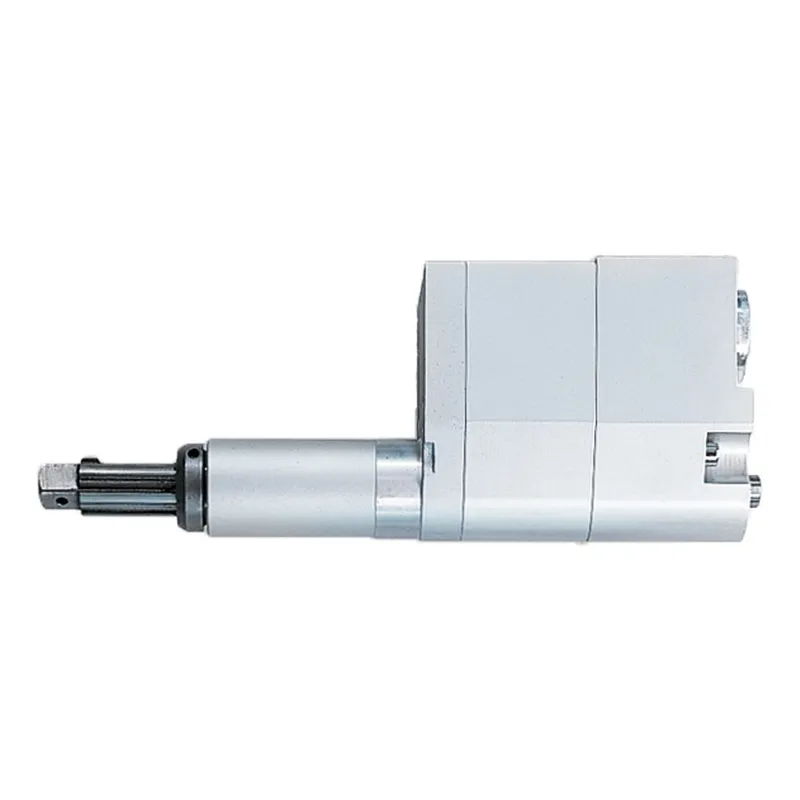

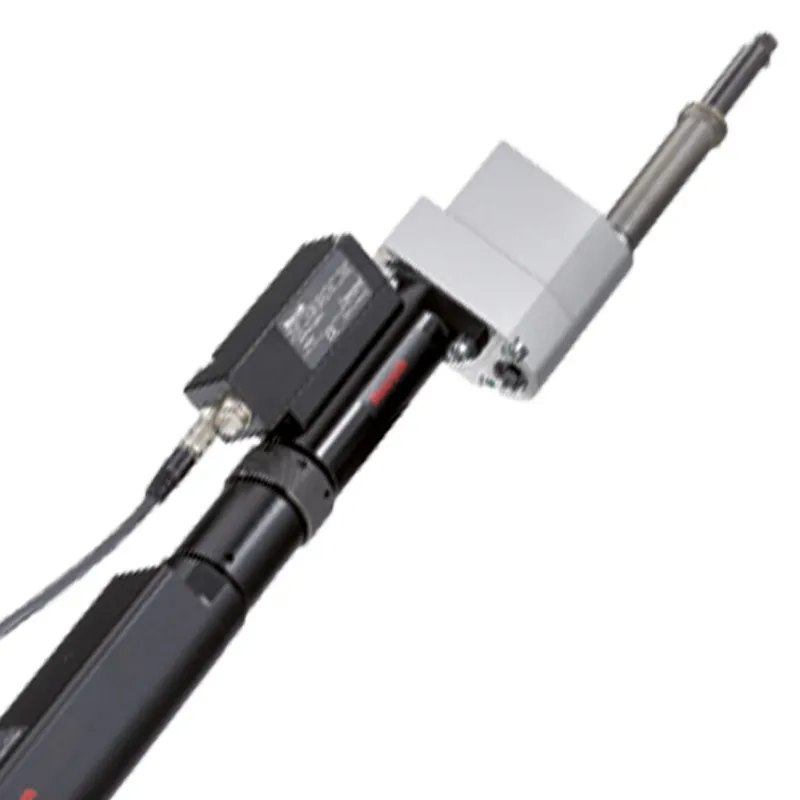

OFFSET OUTPUT DRIVE VNL3C418 SZ5 3/4SQP

MPN: 0608800548
Category: Offset output drive

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 0608800548?

Working range 50-1000 Nm

Max. output speed: 515 1/min

For narrow hole patterns, good side-by-side arrangement with low screw distances

Standard tool mounts

Maintenance-free for 1 million full load cycles

Specifications

Nominal size [mm]	5
Working range (max.) [Nm]	463.0
Working range (min) [Nm]	50.0
Maximum drive speed (1/min) [min⁻¹]	145.0
Tool mount	3/4" square with centering pin
Weight [kg]	12.9; 4
Typical efficiency	0.92
Maximum torque [Nm]	500.0
Length A	421
Installation length	619.0
Spring force (max)	155.0
Spring force (min)	40.0
Reduction ratio	1
Spring travel	80.0
Order number	0608800548
Code	VNK3C418
