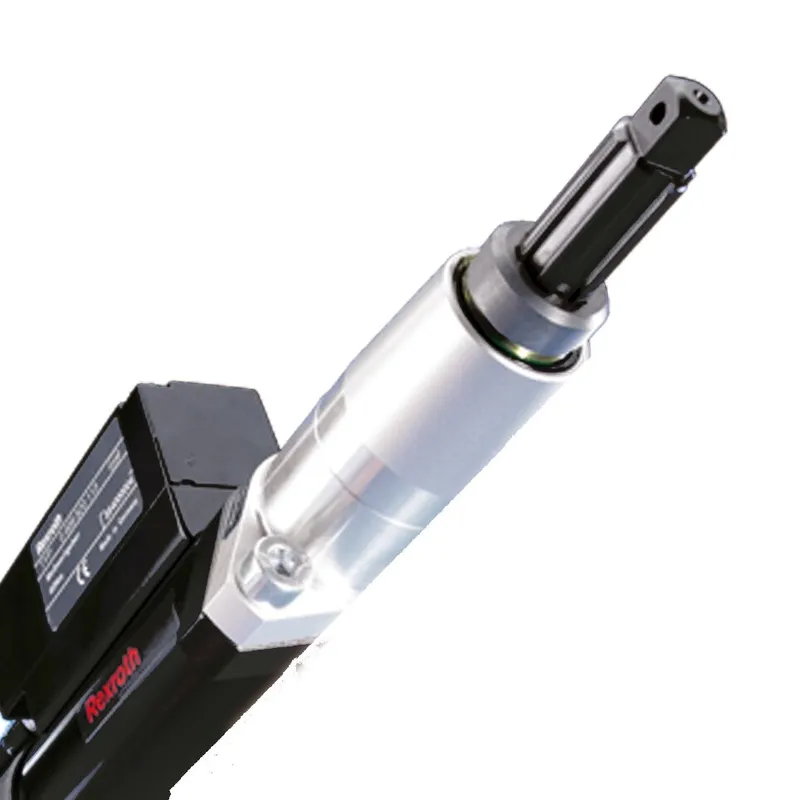

Bosch Rexroth 0608800056
STRAIGHT OUTPUT GL2A319 SZ4 1/2SQ
- MPN
- 0608800056
- Category
- Straight output drive
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth 0608800056?
Working range 5.7-150 Nm
Max. output drive speed: 1000 rpm
Various lengths with axial compensation
Standard tool mounts
Highest possible efficiency
Maintenance-free for 1 million full load cycles
Specifications
Specifications
| Nominal size [mm] | 4 |
| Working range (max.) [Nm] | 150.0 |
| Working range (min) [Nm] | 15.0 |
| Maximum drive speed (1/min) [min⁻¹] | 340.0 |
| Tool mount | 1/2" square |
| Weight [kg] | 2.1; 2.15 |
| Typical efficiency | 1 |
| Maximum torque [Nm] | 150.0 |
| Length A | 319 |
| Installation length | 333.0 |
| Spring force (max) | 93.0 |
| Spring force (min) | 30.0 |
| Reduction ratio | 1 |
| Spring travel | 50.0 |
| Order number | 0608800056 |
| Code | GL2A319 |
No matching specifications
0608800056: frequently asked questions
When can 0608800056 be shipped?
0608800056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0608800056 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0608800056 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0608800056, subject to availability and destination.
