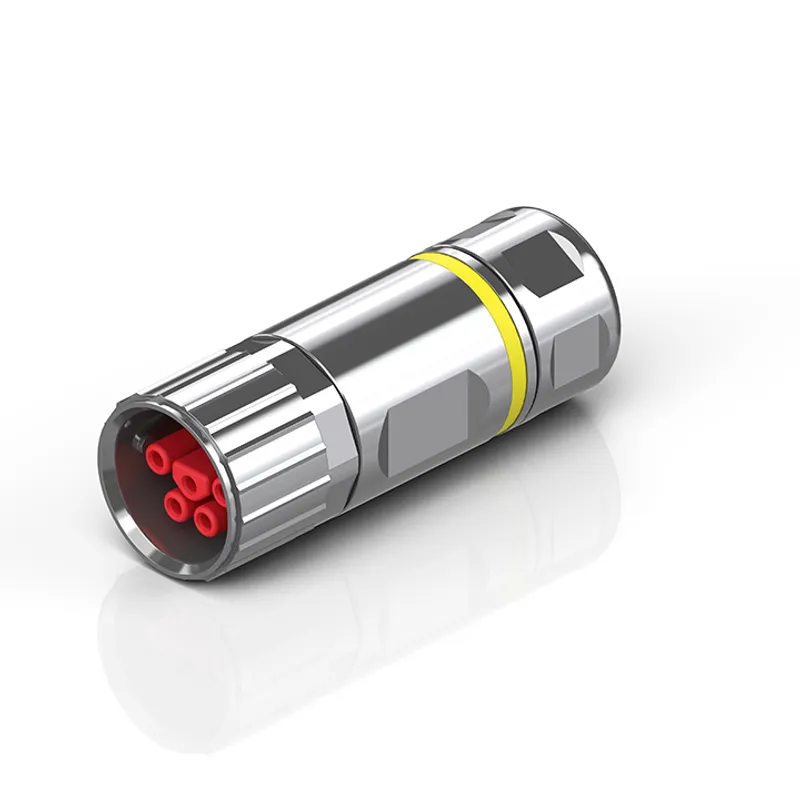

Beckhoff ZS7300-A002

Plug, field assembly, EtherCAT/Ethernet, IP65/67, shielded

MPN: ZS7300-A002
Category: Hybrid connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS7300-A002?

Straight, shielded, EtherCAT-coded B23 plug for EtherCAT

Specifications

Shielding	yes
Installation size	B23
Connector type	plug
Contact type	female+male
Number of positions (face)	pins 4+PE+4
Coding	EtherCAT-coded
Mating cycles	≥ 100
Wire termination	crimp connection
Max. wire cross-section (power)	AWG12/4.0 mm²
Max. wire cross-section (Ethernet)	AWG22/0.34 mm²
Max. cable outer diameter	15.0…16.0 mm
A1	approx. 80.0 mm
A2	29.0 mm

ZS7300-A002: frequently asked questions

When can ZS7300-A002 be shipped?

ZS7300-A002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZS7300-A002 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZS7300-A002 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS7300-A002, subject to availability and destination.
