Beckhoff ZS7300-0013

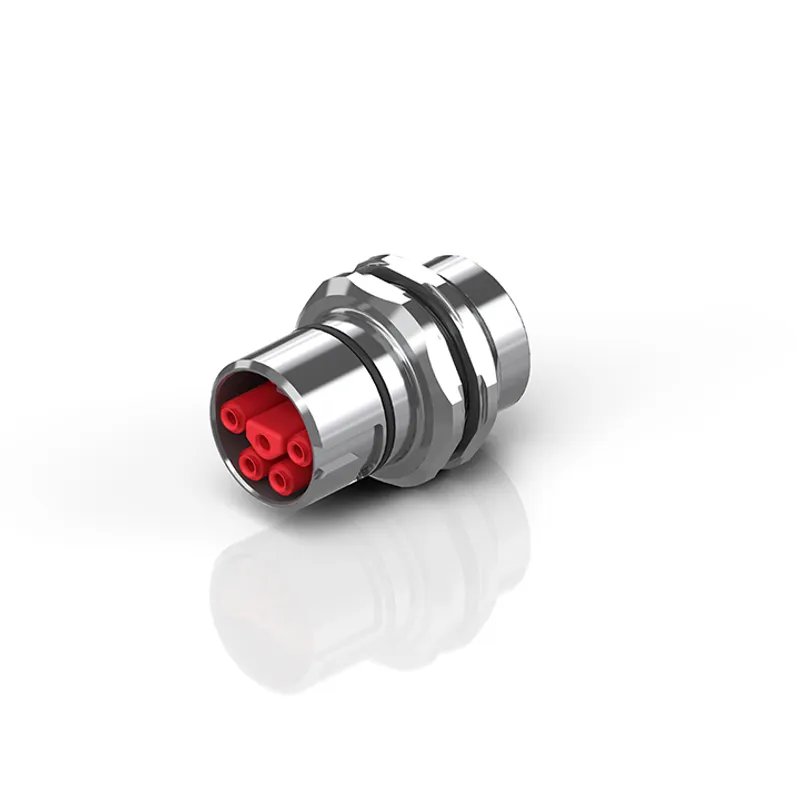

Flange, field assembly, EtherCAT P, IP65/67, shielded

MPN: ZS7300-0013
Category: Hybrid connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS7300-0013?

B23, flange, metal, shielded, crimp, straight, short, female+female, 5+4-pin, front assembly

Specifications

Shielding	yes
Installation size	B23
Connector type	flange front assembly
Contact type	female+ female
Number of positions (face)	pins 4+PE+4
Coding	EtherCAT P-coded
Mating cycles	≥ 100
Wire termination	crimp connection
Max. wire cross-section (power)	AWG12/4.0 mm²
Max. wire cross-section (Ethernet)	AWG22/0.34 mm²
Max. cable outer diameter	13.0…15.0 mm, 15.0…16.0 mm
A1	42.50 mm
A2	30.00 mm
A3	23.80 mm
A4	20.40 mm
A5	17.10 mm
A6	M25

ZS7300-0013: frequently asked questions

When can ZS7300-0013 be shipped?

ZS7300-0013 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up ZS7300-0013 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for ZS7300-0013 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS7300-0013, subject to availability and destination.
