Beckhoff ZS7300-0003

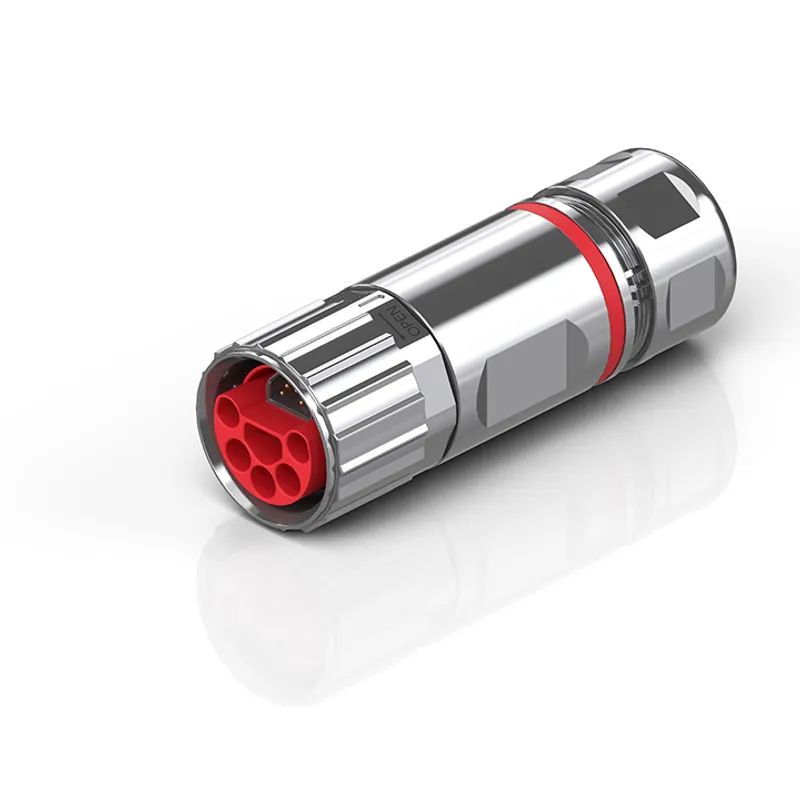

Plug, field assembly, EtherCAT P, IP65/67, shielded
- MPN
- ZS7300-0003
- Category
- Hybrid connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff ZS7300-0003?
Plug, field assembly, EtherCAT P, IP65/67, shielded - ZS7300-0003
Specifications
Specifications
| Shielding | yes |
| Installation size | B23 |
| Connector type | plug |
| Contact type | male+male |
| Number of positions (face) | pins 5+PE+4 |
| Coding | EtherCAT P-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Max. wire cross-section (power) | AWG14/2.5 mm² + AWG12/4.0 mm² |
| Max. wire cross-section (Ethernet) | AWG22/0.34 mm² |
| Max. cable outer diameter | 15.0…16.0 mm |
| A1 | approx. 80.0 mm |
| A2 | Ø23.8 mm |
ZS7300-0003: frequently asked questions
When can ZS7300-0003 be shipped?
ZS7300-0003 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS7300-0003 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS7300-0003 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS7300-0003, subject to availability and destination.
