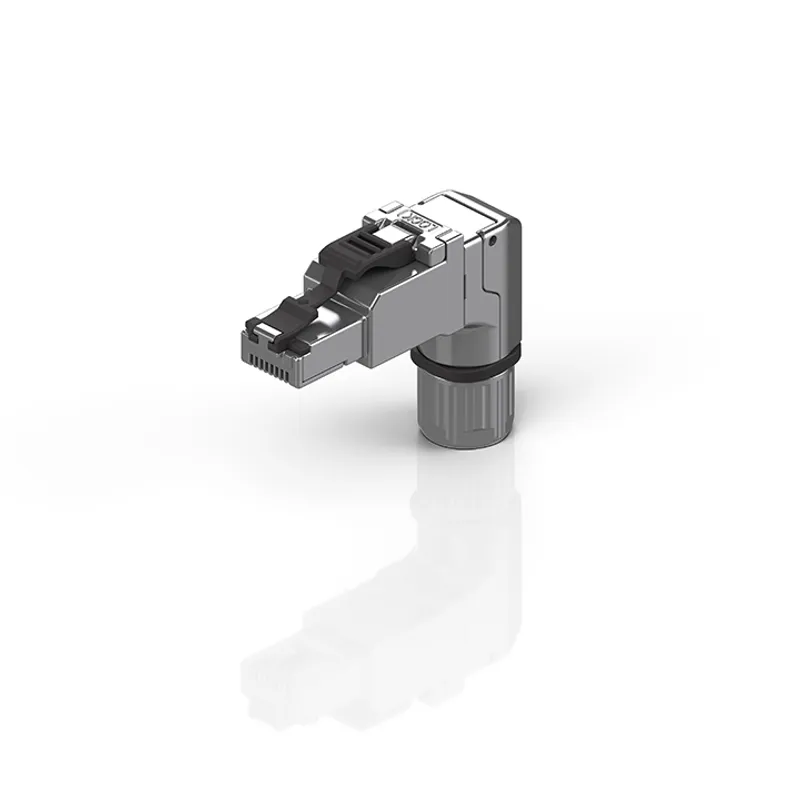

RJ45 plug field assembly, IP20, shielded
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EtherCAT and fieldbus connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZS1090-0035 be shipped?
ZS1090-0035 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS1090-0035 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS1090-0035 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS1090-0035, subject to availability and destination.
plug, field assembly, RJ45, IP20, angled, male, 8-pin, AWG22…26, PU = 10 pieces, Ø 5.0…9.0 mm, shielded Cable outlet 90°, rotatable in four
Specifications
Specifications
| Shielding | yes |
| Installation size | RJ45 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 8-pin |
| Rated current | 1 A at 50°C |
| Mating cycles | ≥ 750 |
| Wire termination | IDC |
| Max. wire cross-section | AWG24…AWG26 (0.25 mm²…0.14 mm²) |
| Max. cable outer diameter | 5.5…10.0 mm |
| A1 | 45.70 mm |
| A2 | Ø 13.80 mm |
| A3 | 38.00 mm |
