Beckhoff ZS1090-0005

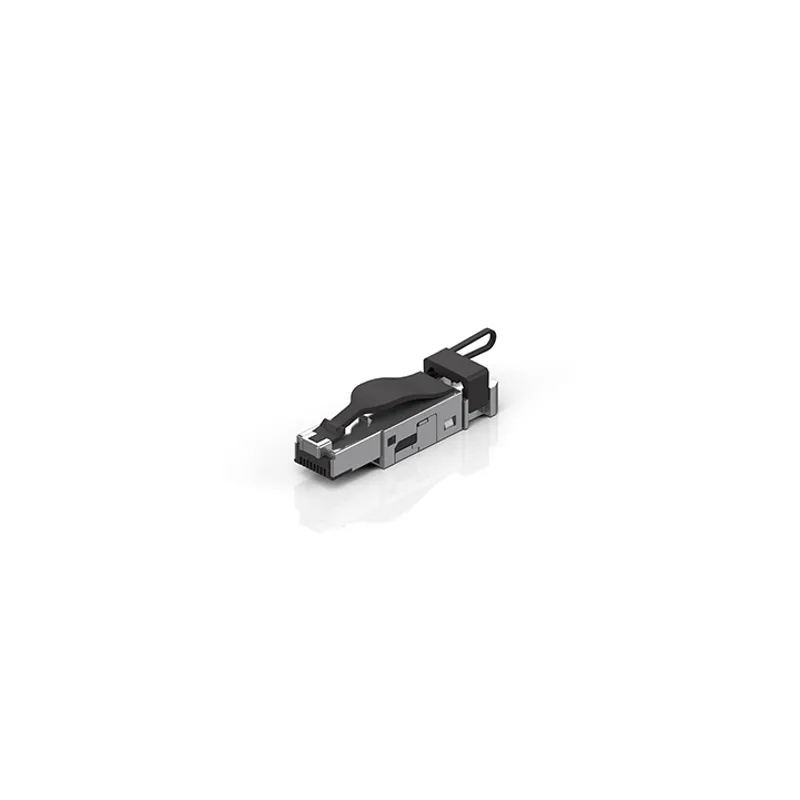

RJ45 plug field assembly, IP20, shielded

MPN: ZS1090-0005
Category: EtherCAT and fieldbus connectors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff ZS1090-0005?

The Cat.6 EtherCAT/Ethernet plug is suitable for gigabit due to its 8-pole implementation. The robust IP20 die-cast zinc housing is made up of only two parts and can be assembled in the field without special tools. Cables from AWG22-26 can be connected.

Specifications

Shielding	yes
Installation size	RJ45
Connector type	plug
Contact type	male
Number of positions (face)	8-pin
Rated current	1 A at 50°C
Mating cycles	≥ 750
Wire termination	IDC
Max. wire cross-section	AWG26…AWG22 (0.14 mm²…0.34 mm²)
Max. cable outer diameter	5.5…8.5 mm
Material	plastic
A1	approx. 51.00 mm
A2	12.90 mm
