Beckhoff
ZS1031-3000PROFIBUS, Modbus, D-sub connector, up to 12 Mbaud with resistive terminator (other design as ZB3100)

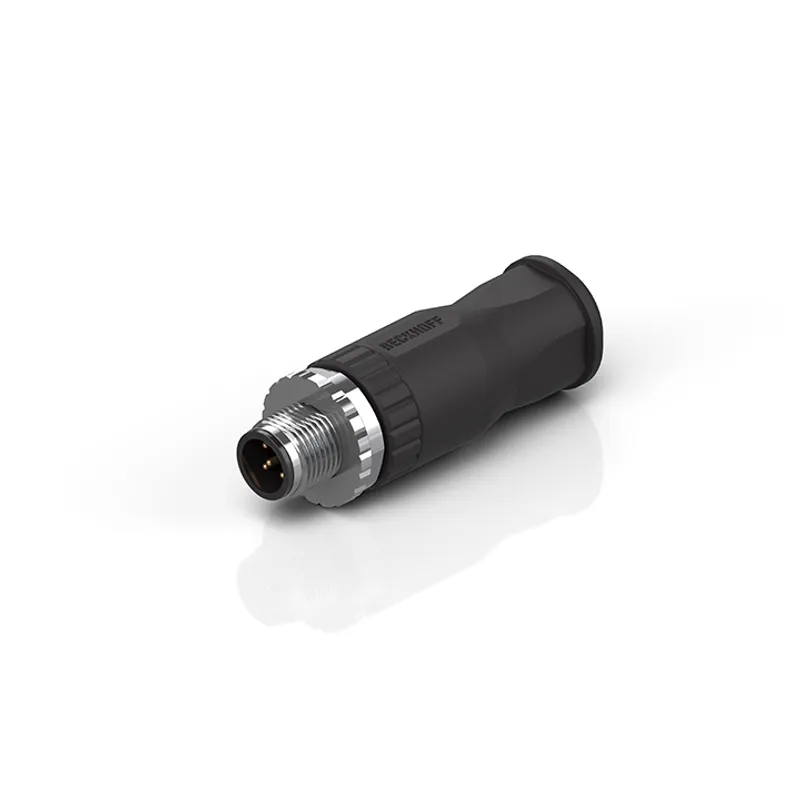

Beckhoff ZS1052-0610
Plug CANopen/DeviceNet®, IP67
- MPN
- ZS1052-0610
- Category
- EtherCAT and fieldbus connectors
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Beckhoff ZS1052-0610?
Plug CANopen/DeviceNet®, IP67, M12, straight, male, schraub, 5-pin
Specifications
Specifications
| Installation size | M12 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 5-pin |
| Coding | A‑coded |
| Rated current | 7.5 A at 40°C (according to IEC 61076-2-101) |
| Rated voltage | 60 V (according to IEC 61076-2-101) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Max. wire cross-section | AWG16 (1.5 mm²) |
| Max. cable outer diameter | 4.0…8 mm |
| A1 | 57.0 mm |
| A2 | Ø 20.0 mm |
ZS1052-0610: frequently asked questions
When can ZS1052-0610 be shipped?
ZS1052-0610 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZS1052-0610 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZS1052-0610 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZS1052-0610, subject to availability and destination.
