Motor cable, IP67, (4 G 2.5 mm²+(2 x 0.75 mm²)+(2 x AWG22)), PUR, orange, drag-chain suitable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Hybrid cables |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK7A63-3673-0xxx be shipped?
ZK7A63-3673-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7A63-3673-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7A63-3673-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7A63-3673-0xxx, subject to availability and destination.
Motor cable, IP67, (4 G 2.5 mm² +(2 x 0.75 mm²)+(2 x AWG22)), PUR, orange, drag chain suitable, B23, mechanical coding 3, plug, straight, male+male, 6+2 pin – M23, mechanical coding 3, plug, straight, female+female, 6+2
Specifications
Specifications
| Installation size | M23 |
| Connector type | plug |
| Contact type | female |
| Number of positions (face) | Power: 3+PE, Signal: 5 |
| Mating cycles | 500 |
| Wire termination | crimp connection |
| Operating voltage | max. 1000 V AC (UL), Uo/U 600/1000 V (VDE) |
| Cross-section (power) | 2.50 mm² (approx. AWG14) |
| Cross-section (signal) | AWG22 (approx. 0.34 mm²) |
| Use | drag-chain suitable |
| Material jacket | TPU (thermoplastic polyurethane) |
| Outer cable diameter | 13.9 mm ± 0.4 mm (0.5472" ± 0.0157") |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | orange |
| A1 | 95.00 mm |
| A2 | 29.00 mm |
| B1 | 79.00 mm |
| B2 | 28.00 mm |
More Beckhoff parts
Available on requestB23, ECP cable, PUR, 7 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Available on requestB23, ENP cable, PUR, 7 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Available on requestB23, ENP cable, PUR, 7 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 3 (user-defined voltage)
Available on requestMotor cable, IP67, (4 G 2.5 mm²+(2 x 1.0 mm²)+(2 x AWG22)), PUR, orange, drag-chain suitable

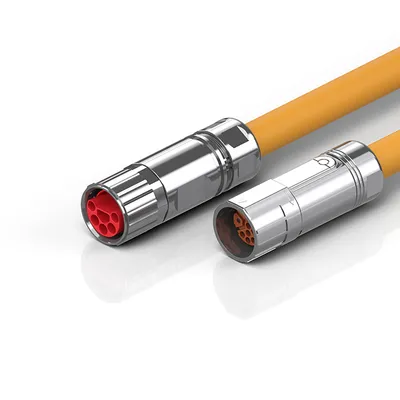

Available on requestMotor cable, IP67, (4 G 4 + (2 x 1.0 mm²)+(2 x AWG22)), PUR, orange, drag-chain suitable
