Beckhoff
ZK7752-6566-0xxxB23, Power cable, PUR, IP67, 7 G 2.5 mm², drag-chain suitable, key 2 (400 V AC)

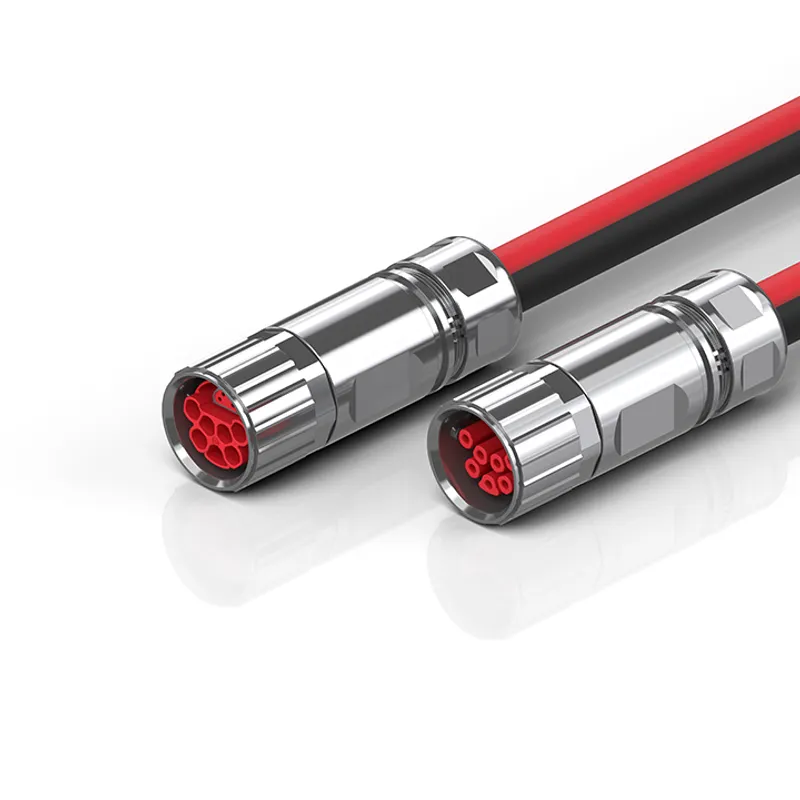

Beckhoff ZK7755-6566-0xxx
B23, ECP cable, PUR, 7 G 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (400 V AC)
- MPN
- ZK7755-6566-0xxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK7755-6566-0xxx?
EtherCAT P cable, ECP, PUR, 7 G 2.5 mm² + (4xAWG22), drag-chain suitable, shielded, B23, mechanical key 2, plug, straight, male+ male, pins 7+4, EtherCAT P-coded – B23, mechanical key 2, plug, straight, female+female, pins 7+4
Specifications
Specifications
| Installation size | B23 |
| Connector type | socket |
| Contact type | female+ female |
| Number of positions (face) | pins 6+PE+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Operating voltage | ≤ 1000 V AC |
| Cross-section (power) | 7 x 2.5 mm² (approx. AWG14) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 14.3 mm ± 0.2 mm (0.563" ± 0.0079") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Jacket color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| A1 | 93.60 mm |
| A2 | 28.50 mm |
| B1 | 93.60 mm |
| B2 | 28.50 mm |
No matching specifications
ZK7755-6566-0xxx: frequently asked questions
When can ZK7755-6566-0xxx be shipped?
ZK7755-6566-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7755-6566-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7755-6566-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7755-6566-0xxx, subject to availability and destination.
