Beckhoff
ZK7714-CA00-AxxxB23, ENP cable, PUR, 5 G 4.0 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (400 V AC)
Beckhoff ZK7721-3700-Axxx
B23, ENP cable, PUR, 4 G 4.0 mm² + 2 x 2.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (user-defined voltage)
- MPN
- ZK7721-3700-Axxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK7721-3700-Axxx?

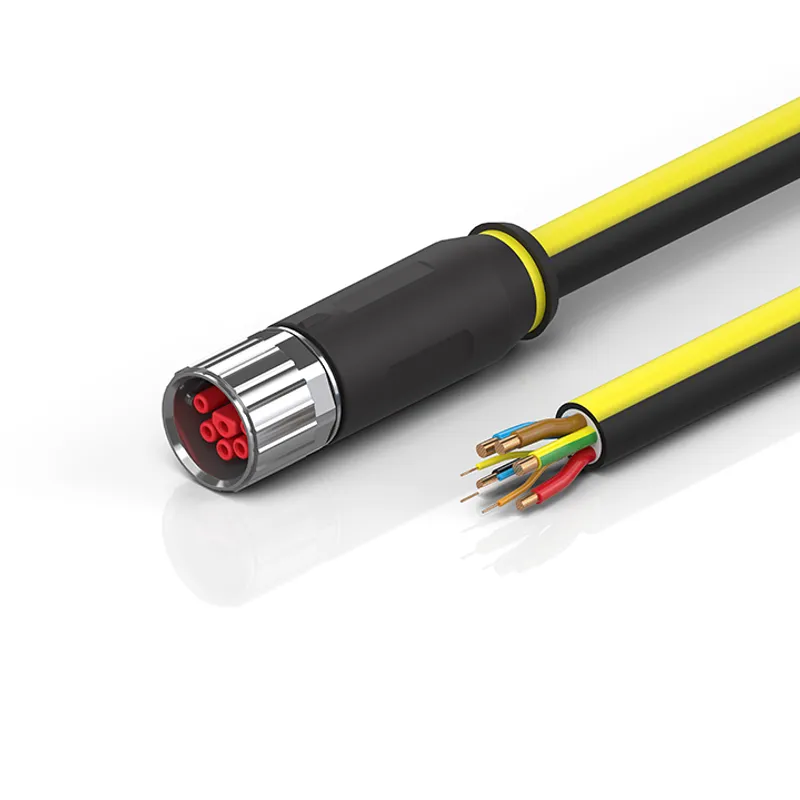

EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B23, plug, straight, female+male, pins 3+PE+2+4, EtherCAT-coded – open
Specifications
Specifications
| Installation size | open end |
| Connector type | plug |
| Contact type | female+male |
| Number of positions (face) | pins 3+PE+2+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Operating voltage | ≤ 1000 V AC |
| Cross-section (power) | 4 x 4.0 mm² (approx. AWG12) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Cross-section (signal) | 2 x 2.5 mm² (approx. AWG14) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 15.6 mm ± 0.4 mm (0.6142" ± 0.0157") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 3 million |
| Jacket color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| A1 | 94.00 mm |
| A2 | 29.00 mm |
No matching specifications
ZK7721-3700-Axxx: frequently asked questions
When can ZK7721-3700-Axxx be shipped?
ZK7721-3700-Axxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7721-3700-Axxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7721-3700-Axxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7721-3700-Axxx, subject to availability and destination.
