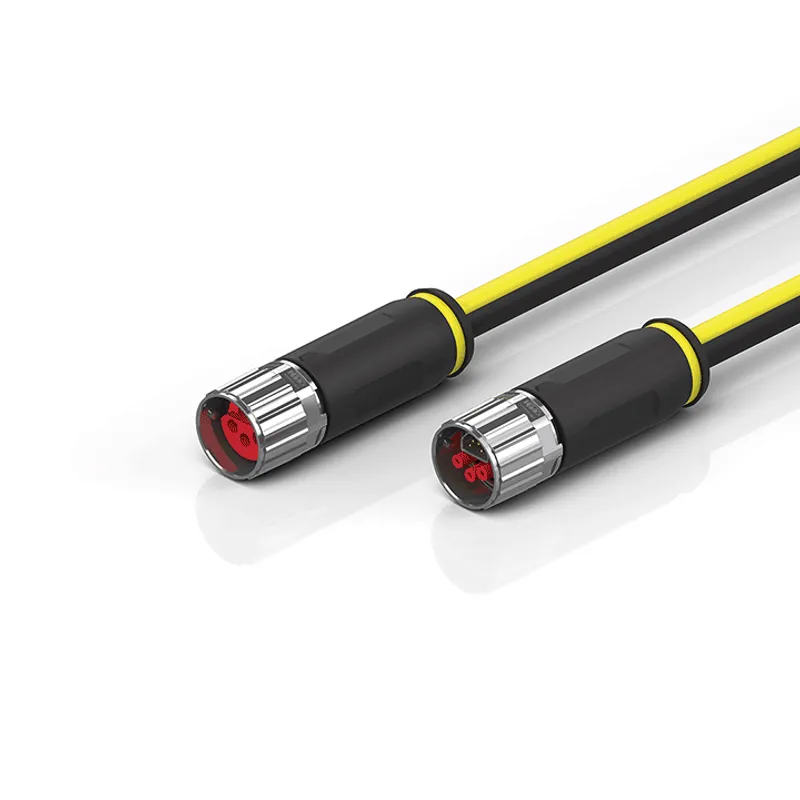

Beckhoff ZK7606-1819-Axxx
B17, ENP cable, PUR, 3 G 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 2 (230 V AC)
- MPN
- ZK7606-1819-Axxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK7606-1819-Axxx?
EtherCAT/Ethernet cable, ENP, PUR, drag-chain suitable, B17, plug, straight, male+female, pins 3+4, EtherCAT-coded – B17, plug, straight, female+male, pins 3+4
Specifications
Specifications
| Installation size | B17 |
| Connector type | plug |
| Contact type | female+male |
| Number of positions (face) | pins 2+PE+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Operating voltage | ≤ 1000 V AC |
| Cross-section (power) | 3 x 1.5 mm² (approx. AWG16) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 10.0 mm ± 0.2 mm (0.3937" ± 0.0079") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 3 million |
| Jacket color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| CE | yes |
| A1 | 73.60 mm |
| A2 | 23.00 mm |
| B1 | 73.60 mm |
| B2 | 23.00 mm |
