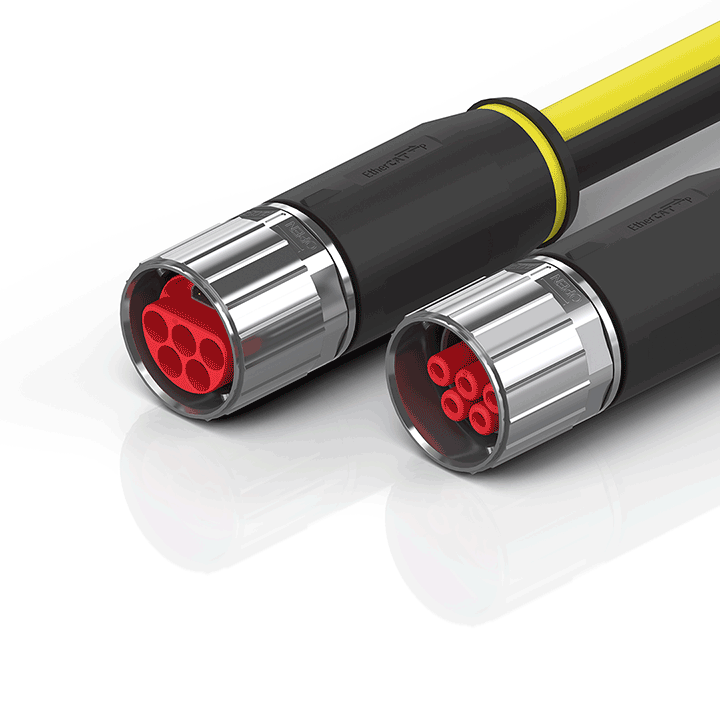

Beckhoff ZK7425-3031-Axxx
B40, ENP cable, PUR, 5 G 16.0 mm² + (1 x 4 x AWG22), drag-chain suitable, key 1 (2 x 24 V DC + PE)
- MPN
- ZK7425-3031-Axxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK7425-3031-Axxx?
B40, plug, straight, male+female, pins 4+PE+4, EtherCAT-coded – B40, plug, straight, female+male, pins 4+PE+4
Specifications
Specifications
| Installation size | B40 |
| Connector type | plug |
| Contact type | female+male |
| Number of positions (face) | pins 4+PE+4 |
| Coding | EtherCAT-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Cross-section (power) | 5 x 16.0 mm² (approx. AWG5) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 24.0 mm ± 0.5 mm (0.9448" ± 0.01969") |
| Min. bending radius, moved | 7 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 5 million |
| Jacket color | black (similar to RAL 9005) with yellow stripe (similar to RAL 1003) |
| CE | yes |
| A1 | 131.5 |
| A2 | 47.0 |
| B1 | 131.5 |
| B2 | 47.0 |
