Beckhoff
ZK7224-BT00-0xxxB17, ECP cable, PUR, 4 x 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 1 (2 x 24 V DC)

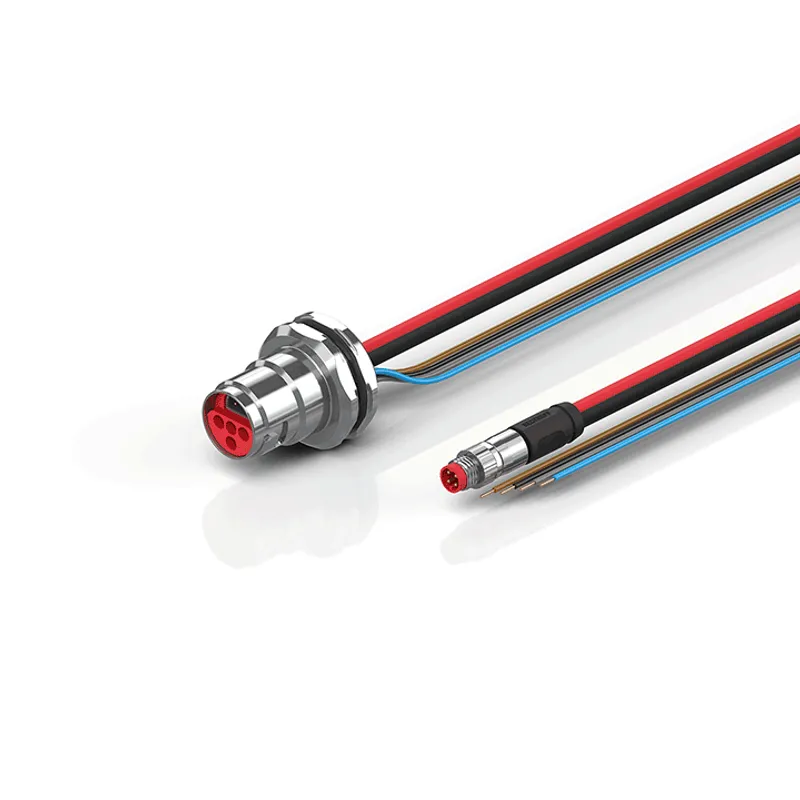

Beckhoff ZK7224-BV00-0xxx
B17, ECP cable, PUR, 4 x 1.5 mm² + (1 x 4 x AWG22), drag-chain suitable, key 1 (2 x 24 V DC)
- MPN
- ZK7224-BV00-0xxx
- Category
- Hybrid cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK7224-BV00-0xxx?
B17, flange, straight, long, male+male, pins 4+4, front assembly, P-coded – 1 x M8, plug, straight | 1 x open
Specifications
Specifications
| Installation size | open end |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 4-wire |
| Coding | EtherCAT P-coded |
| Mating cycles | ≥ 100 |
| Wire termination | crimp connection |
| Shielding | yes |
| Rated current | 3 A at 40°C (according to IEC 61076-2-104) |
| Rated voltage | 24 V DC (according to IEC 61076-2-104) |
| Recommended torque, nut | 0.4 Nm |
| Operating voltage | ≤ 125 V (peak value, not for high voltage purposes) |
| Cross-section (power) | 4 x 1.5 mm² (approx. AWG16) |
| Cross-section (Ethernet) | 1 x 4 x 0.34 mm² (AWG22) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") |
| Min. bending radius, moved | 8 x outer cable diameter |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Max. number of cycles | 3 million |
| Jacket color | black (similar to RAL 9005) with red stripe (similar to RAL 3020) |
| CE | yes |
| A1 | 38.00 mm |
| A2 | WAF30 |
| A3 | 22.00 mm |
| A4 | 23.00 mm |
| A5 | 10.00 mm |
| A6 | M24 |
| B1 | 41.00 mm |
No matching specifications
ZK7224-BV00-0xxx: frequently asked questions
When can ZK7224-BV00-0xxx be shipped?
ZK7224-BV00-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK7224-BV00-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK7224-BV00-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK7224-BV00-0xxx, subject to availability and destination.
