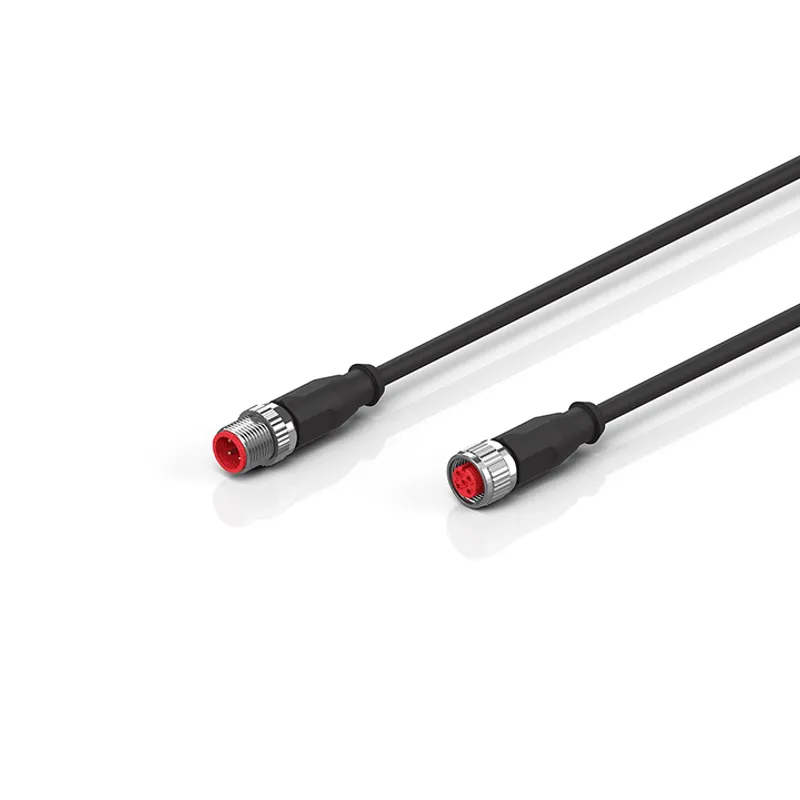

Beckhoff ZK2000-6162-6xxx – Sensor cable, PUR, 4 x 0.5 mm², torsion resistant
MPN: ZK2000-6162-6xxx · Brand: Beckhoff
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Sensor cables |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can ZK2000-6162-6xxx be shipped?
ZK2000-6162-6xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK2000-6162-6xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK2000-6162-6xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK2000-6162-6xxx, subject to availability and destination.
M12, plug, straight, male, 4-pin, A-coded – M12, socket, straight, female, 4-pin
Specifications
Specifications
| Shielding | no |
| Installation size | M12 |
| Connector type | socket |
| Contact type | female |
| Number of positions (face) | 4-pin |
| Coding | A‑coded |
| Rated current | 4 A at 40°C (according to IEC 61076-2-101) |
| Rated voltage | 250 V (according to IEC 61076-2-101) |
| Recommended torque, nut | 0.6 Nm |
| Mating cycles | ≥ 100 (according to IEC 60512-9a) |
| Cross-section | 4 x 0.5 mm² (AWG20) |
| Use | capable of torsion and drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 6.0 mm ± 0.2 mm ("0.23622 ± 0.0079") |
| Min. bending radius, moved | 7.5 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 10 million |
| Jacket color | black |
| A1 | 49.00 mm |
| A2 | 14.50 mm |
| B1 | 44.00 mm |
| B2 | Ø 14.50 mm |
