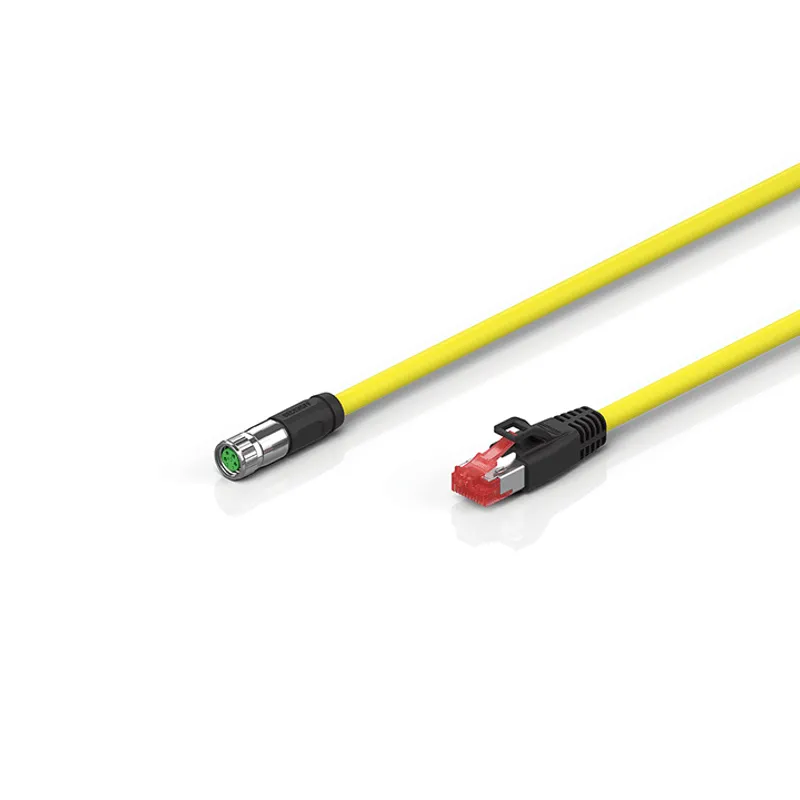

Beckhoff ZK1093-3291-0xxx
EtherCAT cable, PUR, AWG26, drag-chain suitable
- MPN
- ZK1093-3291-0xxx
- Category
- EtherCAT and fieldbus cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK1093-3291-0xxx?
M8, socket, straight, female, 4-pin, A-coded – RJ45, plug, straight, male
Specifications
Specifications
| Shielding | yes |
| Installation size | RJ45 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 8-pin |
| Coding | A‑coded |
| Rated current | 1 A at 40°C |
| Rated voltage | 125 V |
| Recommended torque, nut | 0.4 Nm |
| Mating cycles | ≥ 750 |
| Cross-section (Ethernet) | 1 x 4 x 0.14 mm² (AWG26) |
| Use | drag-chain suitable |
| Material jacket | PUR (polyurethane) |
| Outer cable diameter | 5.4 mm ± 0.3 mm (0.213" ±0.0118") |
| Min. bending radius, moved | 20 x outer cable diameter |
| Min. bending radius, fixed installation | 4 x outer cable diameter |
| Max. number of cycles | 20 million |
| Jacket color | yellow |
| A1 | 40.00 mm |
| A2 | Ø 10.1 mm |
| B1 | 44.0 mm |
No matching specifications
ZK1093-3291-0xxx: frequently asked questions
When can ZK1093-3291-0xxx be shipped?
ZK1093-3291-0xxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK1093-3291-0xxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK1093-3291-0xxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK1093-3291-0xxx, subject to availability and destination.
