Beckhoff ZK1090-3191-Exxx

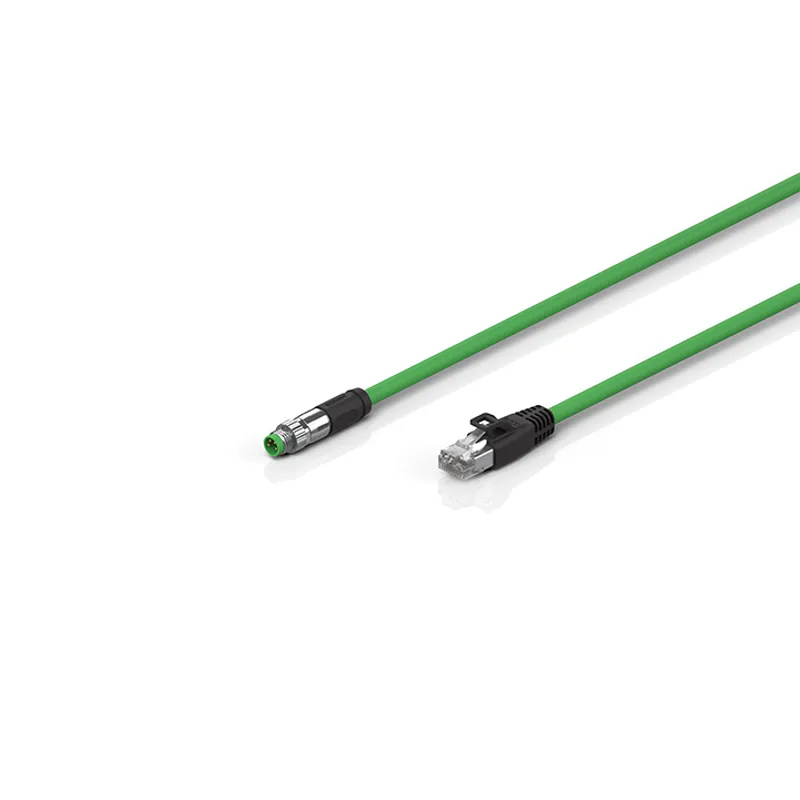

EtherCAT cable, PVC, AWG22, fixed installation, CMG, CSA, PLTC
- MPN
- ZK1090-3191-Exxx
- Category
- EtherCAT and fieldbus cables
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Beckhoff ZK1090-3191-Exxx?
M8, plug, straight, male, 4-pin, A-coded – RJ45, plug, straight, male
Specifications
Specifications
| Shielding | yes |
| Installation size | RJ45 |
| Connector type | plug |
| Contact type | male |
| Number of positions (face) | 4-pin |
| Coding | A‑coded |
| Rated current | 1.5 A |
| Rated voltage | 150 V |
| Recommended torque, nut | 0.4 Nm |
| Mating cycles | ≥ 750 |
| Operating voltage | ≤ 125 V (peak value, not for high voltage purposes) |
| Cross-section (Ethernet) | 2 x 2 x 0.34 mm² (AWG22) |
| Use | fixed installation |
| Material jacket | PVC (polyvinyl chloride) |
| Outer cable diameter | 6.5 mm ± 0.2 mm (0.2559" ± 0.0079") |
| Min. bending radius, moved | 10 x outer cable diameter |
| Min. bending radius, fixed installation | 5 x outer cable diameter |
| Jacket color | green |
| A1 | 41.00 mm |
| A2 | Ø 10.1 mm |
| B1 | 43.80 mm |
No matching specifications
ZK1090-3191-Exxx: frequently asked questions
When can ZK1090-3191-Exxx be shipped?
ZK1090-3191-Exxx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ZK1090-3191-Exxx in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ZK1090-3191-Exxx and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ZK1090-3191-Exxx, subject to availability and destination.
