Beckhoff ZB8610

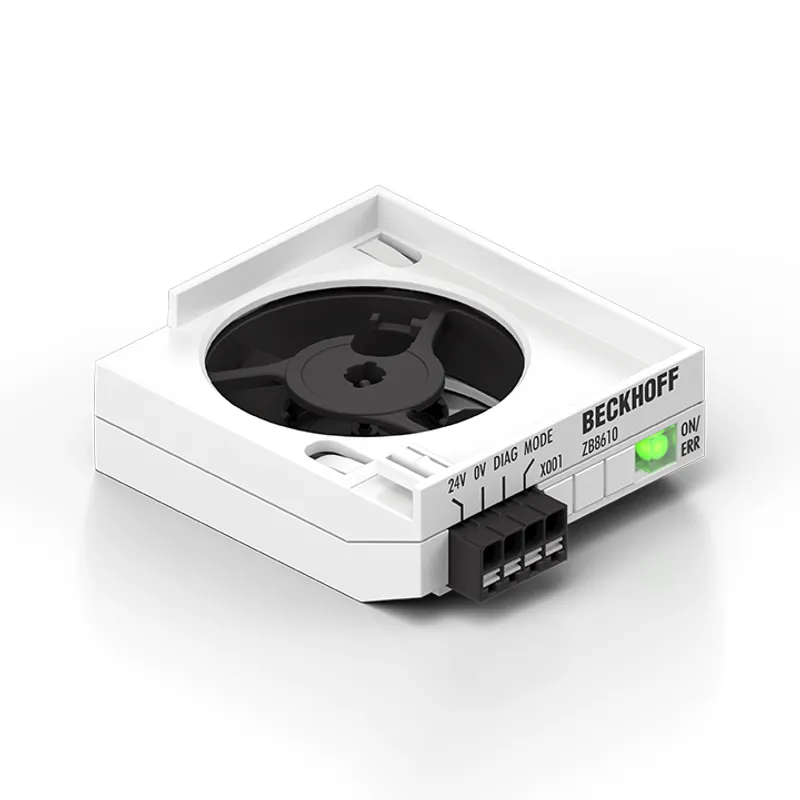

Fan cartridge for EtherCAT and Bus Terminals

MPN: ZB8610
Category: Miscellaneous

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff ZB8610?

The ZB8610 fan cartridge is used for forced ventilation within the terminal housing and ensures better heat dissipation from the housing. It extends the thermal operating range of EtherCAT Terminals (ELxxxx) and Bus Terminals (KLxxxx) and offers a wide

Specifications

Number of channels	1 fan
Nominal voltage	24 V DC (-15%/+20%)
Operating modes	temperature-controlled, full speed, frequency-controlled
Rotational frequency fan	adjustable in 9 steps via frequency (1…9 Hz), max. ~5500 rpm
Diagnostics	fan fault
Life span	typ. MTBF = 280,000 h @ 20°C
Special features	increased performance and extended temperature range for various terminals
Dimensions (W x H x D)	47 mm x 22 mm x 55 mm
Weight	32 g (incl. bracket)
Operating temperature	-25…+70°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/see documentation
Approvals/markings	CE, UL
